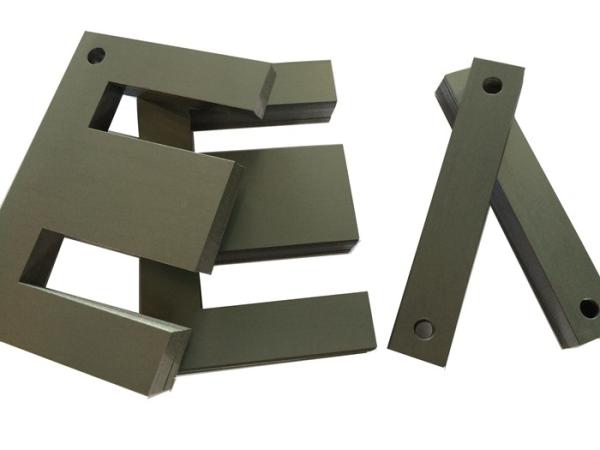

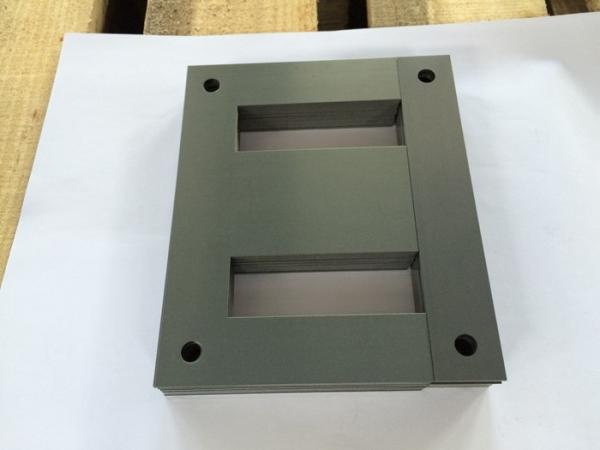

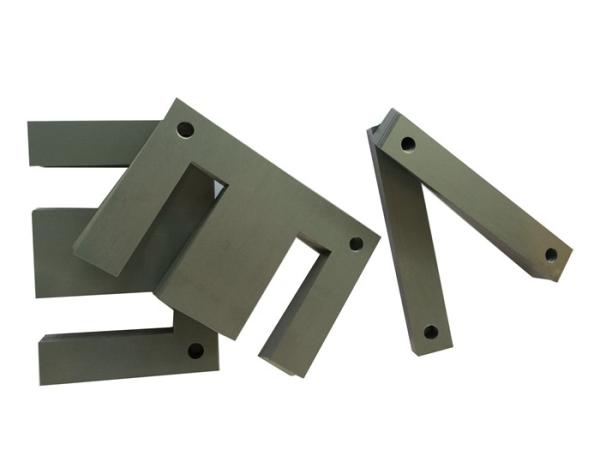

0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating
Specifications
Brand Name :
CENTERSKY OR NO LOGO
Model Number :
EI 75, EI 96, EI 114. EI 126, EI 133.2, EI 152.4, EI 162, EI 168, EI 180, EI 192
Certification :
ISO, ROHS,
Place of Origin :
Jiangyin, Jiangsu, China
MOQ :
5000 KGS
Price :
1.0usd/kg
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1500mt per month
Delivery Time :
8-15 DAYS
Packaging Details :
STANDARD PALLETS PACKAGING 70×70×70CM
Material Type :
NGO Silicon Steel Material
THICKNESS :
0.5mm Thickness, 0.35mm thickness
KEY WORD :
Ei Transformer Core
Packaging :
Boxes/Pallets
Surface Treatment :
T4 Coating
Production Name :
CRNGO silicon steel lamination Ei Transformer Core Sheet
Application :
Parts of Transformer
Shipment :
Sea Shipment
Company History :
More than 20 years' manufacturing experience
Sizes :
EI 41, EI 48, EI 57, EI 66, EI 75, EI 78, EI 85.8, EI 96
Grade Materials :
50WW800, 50WW470 or 26M45
Market :
Asia, Europe, Middle East and others
Description

In all types of transformer construction, the central iron core is constructed from of a highly permeable material made from thin silicon steel laminations. These thin laminations are assembled together to provide the required magnetic path with the minimum of magnetic losses. The resistivity of the steel sheet itself is high, thus reducing any eddy current loss by making the laminations very thin.

Introduction:
Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Catalogue:

Type a b c d e holes aperture
EI- 28 28 4 6 8 17
EI-35 35 5 7.5 10 19.5
EI-41 41 6 8 13 21
EI-42 42 7 7 7 14
EI-48 48 8 8 16 24
EI-50 50 8 9 16 25.5
EI-57 57 9.5 9.5 19 28.5 4 4
EI-60 60 10 10 20 30 4 5
EI-66 66 11 11 22 33 4 4
EI-75 75 12.5 12.5 25 37.5 4 5.5
EI-76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI-78 78 13 13 26 39 4 5
EI-84 84 14 14 28 41 4 6
EI-85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI-96 96 16 16 32 48 4 6
EI-105 105 17.5 17.5 35 52.5 4 6
EI-108 108 18 18 36 54 4 5.5
EI-114 114 19 19 38 57 4 6
EI-120 120 20 20 40 60 4 7
EI-126 126 21 21 42 63 4 7
EI-133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI-150 150 25 25 50 75 4 8
EI-152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI-162 162 27 27 54 81 4 10
EI-168 168 28 28 50 84 4 10
EI-171 171 28.5 28.5 57 85.5 4 10
EI-180 180 30 30 60 90 4 10
EI-190.5 190.5 31.75 31.75 63.5 95.25 4 10
EI-192 192 32 32 64 96 4 10
EI-210 210 35 35 70 105 4 10
EI-228 228 38 38 76 114 4 10
EI-240 240 40 40 80 120 4 10
EI-254 254 48 55 48 164 4 12
EI-270 270 45 45 90 135 4 12
EI-228 228 38 38 76 114 4 10
EI-300 300 50 50 100 150 4 12
EI-360 360 60 60 120 180 4 12

0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating

Company information:

Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

Our capacity is 1500mt per month. We have 13 years' export experience.

Factory Show

0.5mm CRNGO Silicon Steel Lamination Core Ei Transformer Core Sheet T4 Coating

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. True order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
