EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
Specifications
Brand Name :
CENTERSKY
Model Number :
3PEI 20---3PEI 120
Certification :
ISO, ROHS,
Place of Origin :
JIANGYIN
MOQ :
5000 KGS
Price :
USD 1.1 KG ---USD 1.6 KG
Payment Terms :
L/C, T/T, D/P
Delivery Time :
8-15 DAYS
Packaging Details :
STANDARD PALLETS PACKAGING 70×70×70CM
MATERIAL :
COLD ROLLED NON-GRAIN ORIENTED SILICON STEEL
THICKNESS :
0.5MM/0.35MM
PRODUCT NAME :
3 PHASE 500 THREE PHASE TRANSFORMER EI CORE LAMINATION
PHASE :
THREE PHASE
CHEMICIAL POSITION :
SILICON STEEL
KEP WORD :
THREE PHASE TRANSFORMER LAMINATION
PACKING :
PALLETS
SIZES :
87.5/100/120/150/200/250/300/350/500
SURFACE TREATMENTMENT :
COATED
brand :
centersky
Description

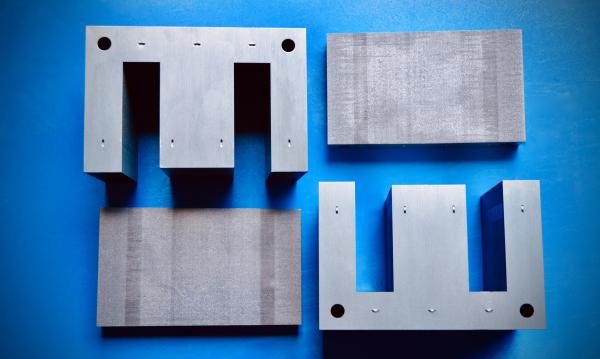

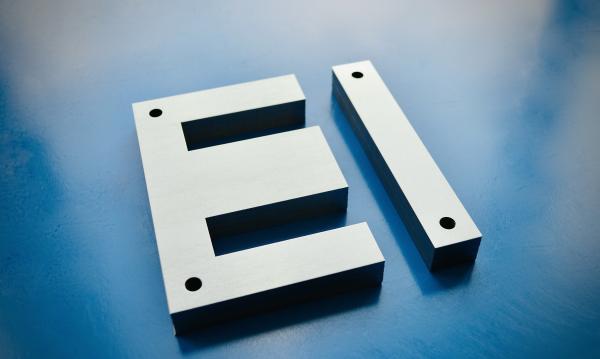

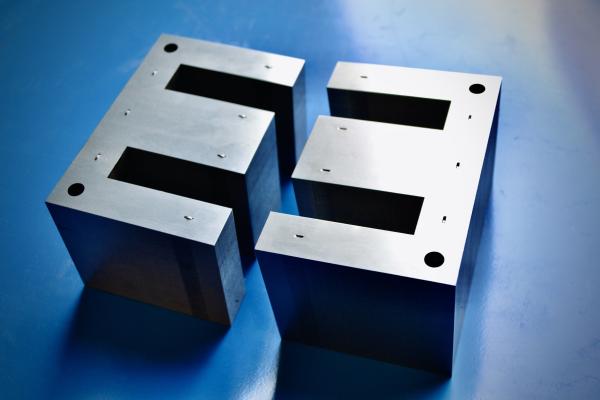

M330-35 material silicon steel EI single phase lamination core

Since EI cores have two open coil side, they provide substantial room to bring high current lead wires out of the coil. This also permits good heat dissipation.

EI Core Set Type

Planar EI Core Set

Fair-Rite Products Corp.

Planar EE and EI cores, with their low profile are suitable for board level installation allowing assembly without the need for plastic coil formers and can also allow windings integrated into multi- level PCBs.

Catalog:

EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase

EI Core high-speed punch Lamination Table

<

TYPE a b c d e
EI_28 28 4 6 8 17
EI_35 35 5 7.5 10 19.5
EI_41 41 6 8 13 21
EI_42 42 7 7 7 14
EI_48 48 8 8 16 24
EI_50 50 8 9 16 25.5
EI_57 57 9.5 9.5 19 28.5
EI_60 60 10 10 20 30
EI_66 66 11 11 22 33
EI_76.2 76.2 12.7 12.7 25.4 38.1
EI_78 78 13 13 26 39
EI_84 84 14 14 28 41
EI_85.8 85.8 14.3 14.3 28.6 42.9
EI_96 96 16 16 32 48
EI_105 105 17.5 17.5 35 52.5
EI_108 108 18 18 36 54
EI_114 114 19 19 38 57
EI_120 120 20 20 40 60
EI_133.2 133.2 22.2 22.2 44.4 66.6
EI_150 150 25 25 50 75
EI_152.4 152.4 25.4 25.4 50.8 76.2
EI_162 162 27 27 54 81
EI_168 168 28 28 50 84
EI_171 171 28.5 28.5 57 85.5
EI_180 180 30 30 60 90
EI_192 192 32 32 64 96
EI_270 270 45 45 90 135
EI_228 228 38 38 76 114

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.

EI High Frequency Core 0.35MM Silicon Steel Lamination EI Single Phase
