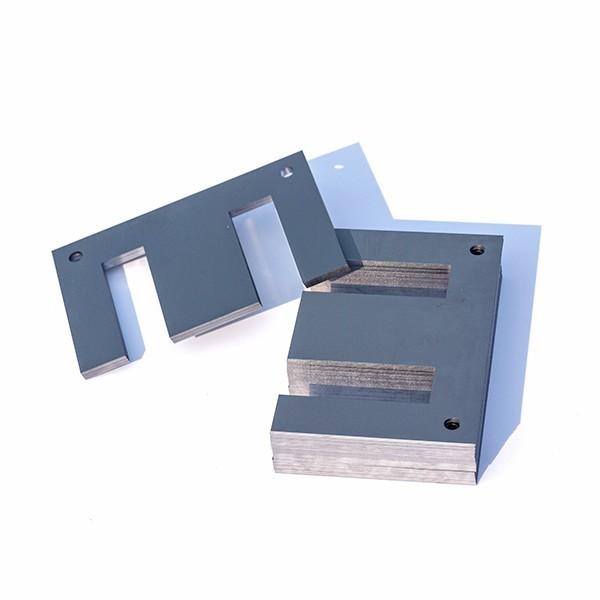

0.5mm EI76.2 Single Phase Ei Core Ei Silicon Steel No Oriented And Grain Oriented
0.5mm EI76.2 Single Phase Ei Core Ei Silicon Steel No Oriented And Grain Oriented
Specifications
Brand Name :
CENTERSKY
Model Number :
3PEI 20---3PEI 120
Certification :
ISO, ROHS,
Place of Origin :
JIANGYIN
MOQ :
5000 KGS
Price :
USD 1.1 KG ---USD 1.6 KG
Payment Terms :
L/C, T/T, D/P
Delivery Time :
8-15 DAYS
Packaging Details :
STANDARD PALLETS PACKAGING 70×70×70CM
MATERIAL :
COLD ROLLED NON-GRAIN ORIENTED SILICON STEEL
THICKNESS :
0.5MM/0.35MM
PRODUCT NAME :
3 PHASE 500 THREE PHASE TRANSFORMER EI CORE LAMINATION
PHASE :
THREE PHASE
CHEMICIAL POSITION :
SILICON STEEL
KEP WORD :
THREE PHASE TRANSFORMER LAMINATION
PACKING :
PALLETS
SIZES :
87.5/100/120/150/200/250/300/350/500
SURFACE TREATMENTMENT :
COATED
Description

E & I PATTERN SILICON STEEL LAMINATION NO ORIENTED AND GRAIN ORIENTED MATERIAL

Introduction:
Three-phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

3PEI-17.5 to 3PEI-120.The gap sizes of the transformer lamination core can be customized.

EI Core high-speed punch Lamination Table

TYPE a b c d e holes aperture
EI_28 28 4 6 8 17
EI_35 35 5 7.5 10 19.5
EI_41 41 6 8 13 21
EI_42 42 7 7 7 14
EI_48 48 8 8 16 24
EI_50 50 8 9 16 25.5
EI_57 57 9.5 9.5 19 28.5 4 4
EI_60 60 10 10 20 30 4 5
EI_66 66 11 11 22 33 4 4
EI_76.2 76.2 12.7 12.7 25.4 38.1 4 5
EI_78 78 13 13 26 39 4 5
EI_84 84 14 14 28 41 4 6
EI_85.8 85.8 14.3 14.3 28.6 42.9 4 5
EI_96 96 16 16 32 48 4 6
EI_105 105 17.5 17.5 35 52.5 4 6
EI_108 108 18 18 36 54 4 5.5
EI_114 114 19 19 38 57 4 6
EI_120 120 20 20 40 60 4 7
EI_133.2 133.2 22.2 22.2 44.4 66.6 4 7
EI_150 150 25 25 50 75 4 8
EI_152.4 152.4 25.4 25.4 50.8 76.2 4 8
EI_162 162 27 27 54 81 4 10
EI_168 168 28 28 50 84 4 10
EI_171 171 28.5 28.5 57 85.5 4 10
EI_180 180 30 30 60 90 4 10
EI_192 192 32 32 64 96 4 10
EI_270 270 45 45 90 135 4 12
EI_228 228 38 38 76 114 4 10
EI_300 300 50 50 100 150 4 12
EI_360 360 60 60 120 180 4 12
EI_240 240 40 40 80 120 4 10
EI_210 210 4 35 70 105 4 10

Catalog:

0.5mm EI76.2 Single Phase Ei Core Ei Silicon Steel No Oriented And Grain Oriented

RAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
