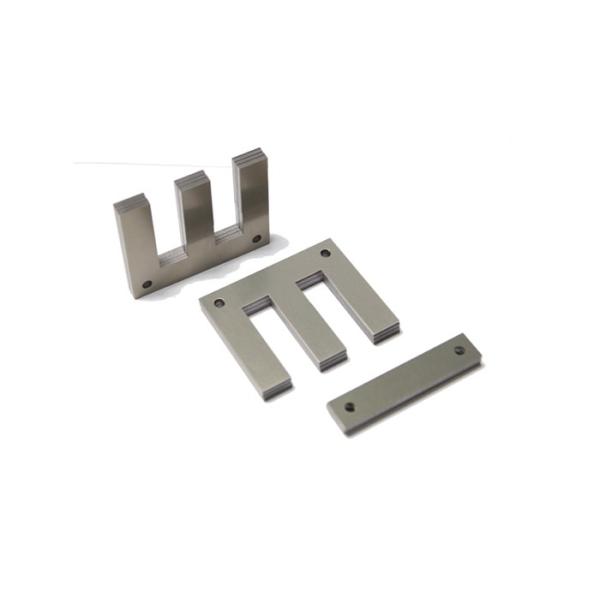

Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase
Specifications
Brand Name :
CENTERSKY
Model Number :
3PEI 20---3PEI 120
Certification :
ISO, ROHS,
Place of Origin :
JIANGYIN
MOQ :
5000 KGS
Price :
USD 1.1 KG ---USD 1.6 KG
Payment Terms :
L/C, T/T, D/P
Delivery Time :
8-15 DAYS
Packaging Details :
STANDARD PALLETS PACKAGING 70×70×70CM
MATERIAL :
COLD ROLLED NON-GRAIN ORIENTED SILICON STEEL
THICKNESS :
0.5MM/0.35MM
PRODUCT NAME :
3 PHASE 500 THREE PHASE TRANSFORMER EI CORE LAMINATION
PHASE :
THREE PHASE
CHEMICIAL POSITION :
SILICON STEEL
KEP WORD :
THREE PHASE TRANSFORMER LAMINATION
PACKING :
PALLETS
SIZES :
87.5/100/120/150/200/250/300/350/500
Chemical Composition :
Silicon Steel
Description

Silicon Steel plays a very important role in laminated core-based transformers. As it increases the resistivity and reduces the loss caused by eddy current loops.And it has a compact design, the magnetic flux flowing through the core from primary to secondary winding does not get wasted.Increase in the overall efficiency of transformers.

Introduction:
Three-phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

3PEI-17.5 to 3PEI-120.The gap sizes of the transformer lamination core can be customized.

Type a b c d e Holes Aperture(Φ)
3PEI-17.5 87.5 17.5 17.5 17.5 52.5 4 6
3PEI-20 100 20 20 20 50 6 6
3PEI-20* 100 20 20 20 60 4,6 6
3PEI-22 110 22 22 22 66 4 8
3PEI-22.2 122 22 28 22.2 61 4 6
3PEI-25 125 25 25 25 75 4 8
3PEI-27 135 27 27 27 81 4 8
3PEI-28 140 28 28 28 84 4 8
3PEI-29 145 29 29 29 72.5 4 8
3PEI-30 150 30 30 30 90 6 7
3PEI-30.5 152 30.5 30.5 30.5 76.25 6 6
3PEI-32 160 32 32 32 80 4 8
3PEI-32* 160 32 32 32 96 4 8
3PEI-35 175 35 35 35 105 4 8
3PEI-36 180 36 36 36 90 6 8
3PEI-38 190 38 38 38 95 4,6 8,10.5
3PEI-38* 190 38 38 38 114 6 8
3PEI-40 200 40 40 40 100 4 10.5
3PEI-40* 200 40 40 40 120 4,6 10
3PEI-44 220 44 44 44 132 6 8,10.5,12.5
3PEI-45 225 45 45 45 135 4 10
3PEI-50 250 50 50 50 150 4,6 8,10.5
3PEI-56 280 56 56 56 168 4 12
3PEI-60 300 60 60 60 180 6 12
3PEI-61* 288 61.3 52 61.3 144 4,6 12
3PEI-61 305 61 61 61 152.5 4,6 14
3PEI-70 350 70 70 70 210 6 13
3PEI-80 400 80 80 80 240 6 14
3PEI-90 450 90 90 90 270 6 14
3PEI-100 500 100 100 100 300 6 16
3PEI-120 600 120 120 120 320 6 16

Catalog:

Silicon Steel PEI 17.5 Crgo EI Transformer Lamination Core Three Phase

FAQ:

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
