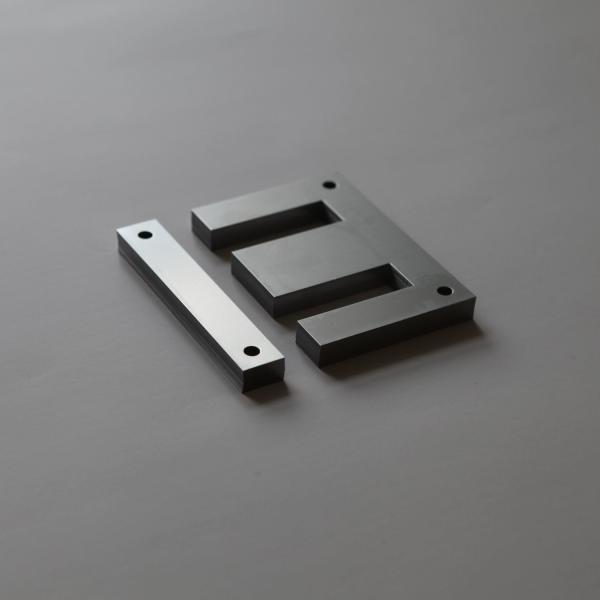

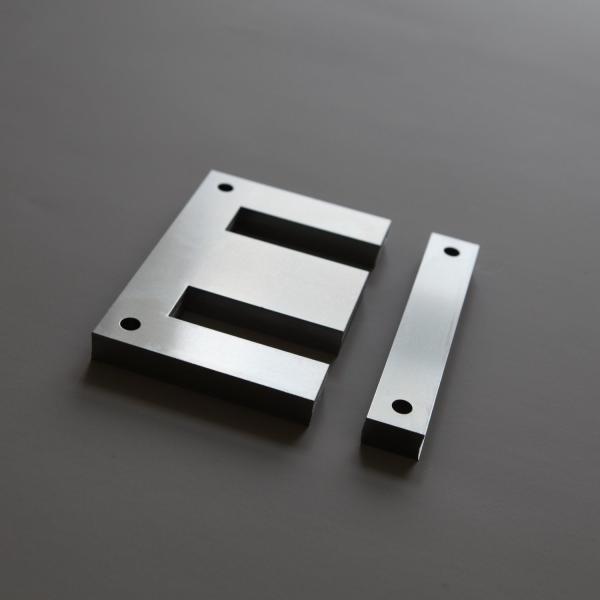

Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Specifications
Brand Name :
CENTERSKY
Model Number :
3PEI-15
Certification :
ISO9001
Place of Origin :
JIANGYIN,CHNA
MOQ :
3000 KGS
Price :
USD 1000 KG ---USD 1600 KG
Payment Terms :
L/C, T/T, D/P
Supply Ability :
1500 MT PER MONTH
Delivery Time :
8-20 DAYS
Packaging Details :
Standard Packing, loading into container
Material Type :
CRNGO Silicon Steel Material
Thickness :
0.5mm thickness, also 0.35mm thickness
Product Name :
Annealling process transformer core sizes laminated transformer core
Key Word :
ei lamination core traders
Packaging :
1000KG One Pallet
Sizes :
Three Phase EI 85.8, EI 100, EI 120, EI 150, EI 200, EI 250, EI 300
Surface Treatment :
T4 Coating
Capacity :
50mt per day
Company History :
More than 20 years' manufacturing experience
Equipments :
High Speed Punching Machines, Manual Punching Machines
Grade Material :
50WW800, 50WW470, 35WW440, 35WW300
Holes :
2 holes, 4 holes, 6 holes
Maximum sizes :
Three Phase EI 600
Description

Non Grain Oriented Electrical steel lamination 50A400 grade transformer EI core ei lamination core traders

Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core

A single-phase transformer can operate to either increase or decrease the voltage applied to the primary winding. When a transformer is used to increase the voltage on its secondary winding with respect to the primary, it is called a step-up transformer. When it is used to decrease the voltage on the secondary winding with respect to the primary it is called a step-down transformer.

Introduction:

Jiangyin Centersky, manufacturer of transformer EI lamination, will continuously improving.

Our products single phase EI lamination and three phase EI lamination will be more and more popular.


Single phase EI core is made by the silicon steel strip. The model of EI lamination in standard sizes is from

EI-30 to EI-360.The gap sizes of transformer lamination core can be customized.

Catalogue:

Jiangyin Centersky, manufacturer of transformer EI lamination, will continuously improving. Our products single phase EI lamination and three phase EI lamination will be more and more popular.

TypeabcdeHolesAperture(Φ)
3PEI-17.587.517.517.517.552.546
3PEI-201002020205066
3PEI-20*100202020604,66
3PEI-221102222226648
3PEI-22.2122222822.26146
3PEI-251252525257548
3PEI-271352727278148
3PEI-281402828288448
3PEI-2914529292972.548
3PEI-301503030309067
3PEI-30.515230.530.530.576.2566
3PEI-321603232328048
3PEI-32*1603232329648
3PEI-3517535353510548
3PEI-361803636369068
3PEI-38190383838954,68,10.5
3PEI-38*19038383811468
3PEI-40200404040100410.5
3PEI-40*2004040401204,610
3PEI-4422044444413268,10.5,12.5
3PEI-45225454545135410
3PEI-502505050501504,68,10.5
3PEI-56280565656168412
3PEI-60300606060180612
3PEI-61*28861.35261.31444,612
3PEI-61305616161152.54,614
3PEI-70350707070210613
3PEI-80400808080240614
3PEI-90450909090270614
3PEI-100500100100100300616
3PEI-120600120120120320616


Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core





Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core
Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core



The company has 80 imported high-speed punching equipment and more than 60 professional operators. The monthly production capacity is about 2,000 tons. It occupies about 45% of the market share in the Chinese market. The export business is mainly exported to South America, Southeast Asia, Europe, and the United States. , Canada and other countries. The quality of our products has won unanimous praise from customers at home and abroad.


Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core

All products enter the packaging process after passing the inspection. The international general packaging is 25 kg/carton; 40 cartons/pallet, usually a 20GP container can hold about 25 tons of goods! The package is equipped with desiccant and anti-rust paper to prevent the product from rusting.


Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core


With the joint efforts of all employees, we have passed many domestic and foreign certifications, such as ISO9001 certification, China high-tech enterprise certification, excellent enterprise certification, etc.,


Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core



At present, we have an administrative team of 30 people to serve each of our customers efficiently and to achieve customer satisfaction. Our purpose is to be happy.

Non Grain Oriented Electrical Steel Lamination 50A400 Grade Transformer Ei Lamination Core

1. Q: Can I get some samples?

A: Yes, sample order is available for quality checking and market test.

2. Q: What's the delivery time?

A: Sample order needs 2-3 days. Formal order needs 8-15 days.

3. Q: What's your payment terms?

A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.

4. Q: Do you have the prodcts in stock?

A: Yes, we will keep some general ones in stock.

5. Q: Can I mix different models in one container?

A: Yes, different models can be mixed up.
