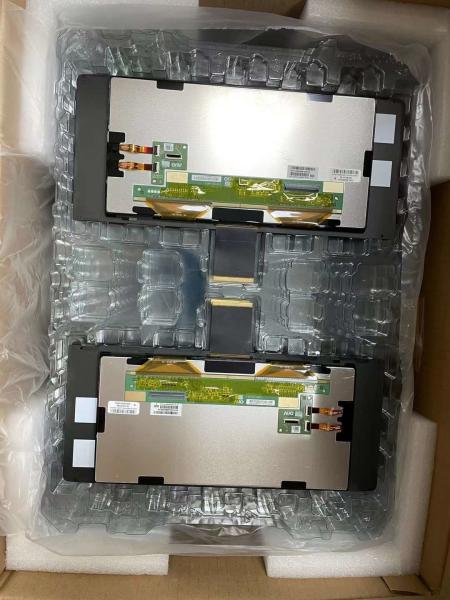

AUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN
AUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN
AUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN
AUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN
Specifications
Brand Name :
Ortustech
Model Number :
C100HAT01.2
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1560*700pixels
style :
60PIN IPS
brightness :
1000CD/M2
color :
16.7M
contrast ratio :
600 :1
working life :
70K Hours
Type :
lcm
Size :
10inch
Lamp type :
WLED
Voltage :
3.3V
Description

AUO 10Inch industrial lcd panel automotive lcd screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN

AU Optronics Corp. (hereafter called AUO) C100HAT01.0 is a 10.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . It's general features are summarized by einklcd in the following: Wide Temperature, WLED Backlight, U/D,L/R Reverse, Matte . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q3, 2019 and last shippment on Q1, 2022, Now this model is discontinued. We inputted this model's specification on May 29 2020 for the first time, and the latest update on Mar 3 2021. If you want to embed C100HAT01.0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The C100HAT01.0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand: AUO
Model P/N: C100HAT01.0
Diagonal Size:10.0"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1560(RGB)×700 171PPI Pixel
Format: RGB
Vertical Stripe
Active Area: 231.66(W)×103.95(H) mm
Bezel Opening-
Outline Size :259.36(W)×131.32(H) mm
Surface Antiglare, Antire flection
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) Left / Right / Up / Down Display Mode AHVA, Normally Black, Transmissive.
IPS Family: AAS, ADS, AHVA, FFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Best View on Symmetry Response Time 30 (Max.)(Tr+Td)
Display Colors 16.7M Lamp Type WLED
Frequency 60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit Touch Screen -
Panel Weight 375±38g Application Automotive Display
Signal Interface LVDS (2 ch, 8-bit) , 60 pins Connector
Environment Operating Temp.: -30 ~ 85 °C ;
Storage Temp.: -40 ~ 95 °C
AUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PINAUO 10Inch Industrial Lcd Panel Automotive Lcd Screen C100HAT01.2 1560X700P 171PPI 1000CD/M2 60PIN
