7 inch Innolux Automotive LCD Display ZJ070NA-01P 1024RGBx600 WSVGA 169PPI 40pin
7 inch Innolux Automotive LCD Display ZJ070NA-01P 1024RGBx600 WSVGA 169PPI 40pin
7 inch Innolux Automotive LCD Display ZJ070NA-01P 1024RGBx600 WSVGA 169PPI 40pin
7 inch Innolux Automotive LCD Display ZJ070NA-01P 1024RGBx600 WSVGA 169PPI 40pin
Specifications
Brand Name :
Innolux
Model Number :
ZJ070NA-01P
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day

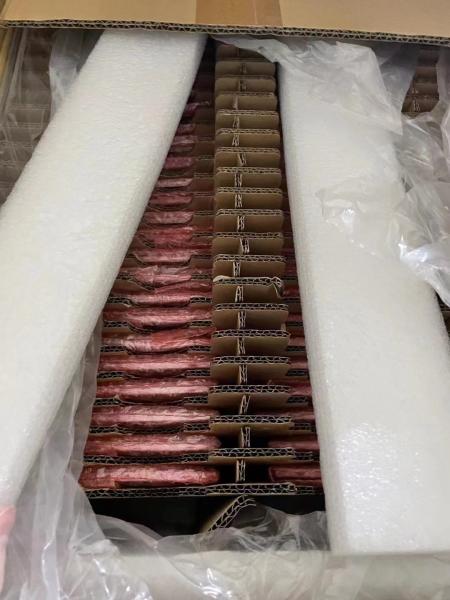

Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass
Brightness :
500ccd/m2
Resolution :
1024*600pixels
contrast ratio :
700:1
color :
16.7M
Working life :
15k hours
connector :
40P
Touch panel :
without
Description

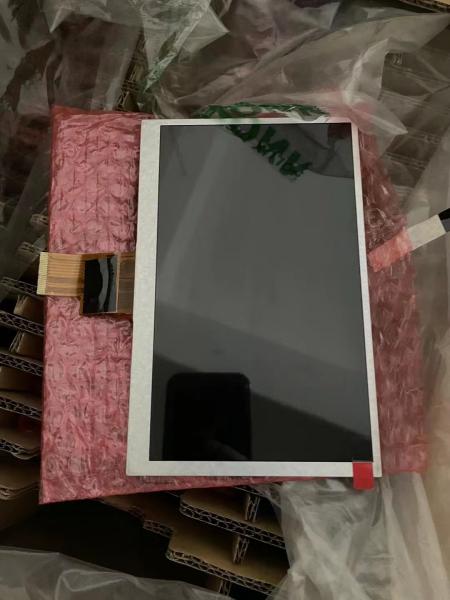

7inch Innolux Automotive LCD Display model ZJ070NA-01P 1024(RGB)×600 WSVGA 169PPI 40pin 500 cd/m²

Innolux Corporation (hereafter called Innolux) ZJ070NA-01P is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Wide Temperature, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Glossy . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is discontinued. We inputted this model's specification on Dec 29 2012 for the first time, and the latest update on Jun 25 2021. If you want to embed ZJ070NA-01P LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The ZJ070NA-01P production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand
Innolux
Model P/N
ZJ070NA-01P
Diagonal Size
7.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×600, WSVGA 169PPI
Pixel Format
RGB Vertical Stripe
Active Area
153.6(W)×90(H) mm
Bezel Opening
156.4(W)×92.8(H) mm
  • Outline Size
    165.75(W)×105.39(H) ×5.1(D) mm
  • Surface
    Glare (Haze 0%)
  • Brightness
    500 cd/m² (Typ.)
  • Contrast Ratio
    700:1 (Typ.) (TM)
  • Viewing Angle
    75/75/70/75 (Typ.)(CR≥10)
  • Display Mode
    TN, Normally White, Transmissive
  • Best View on
    6 o'clock
  • Response Time
    10/15 (Typ.)(Tr/Td)
  • Display Colors
    262K/16.7M 70% NTSC
  • Lamp Type
    WLED , 15K hours , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Panel Weight
    156g
  • Application
    7 inch Innolux Automotive LCD Display ZJ070NA-01P 1024RGBx600 WSVGA 169PPI 40pin
  • Signal Interface
  • LVDS (1 ch, 6/8-bit) , 40 pins FPC
  • Input Voltage
  • 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL)
  • Environment
  • Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C
