Specifications
Brand Name :
sharp
Model Number :
LS050T1SX18
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
1.07B colors
model :
WLED
style :
wide screen high resolution 1080*1920 PIXELS
brightness :
480cd
connector :
40PIN
contrast ratio :
1500:1
working time :
70k hours
input voltage :
3.3 V
Signal type :
mipi
Description

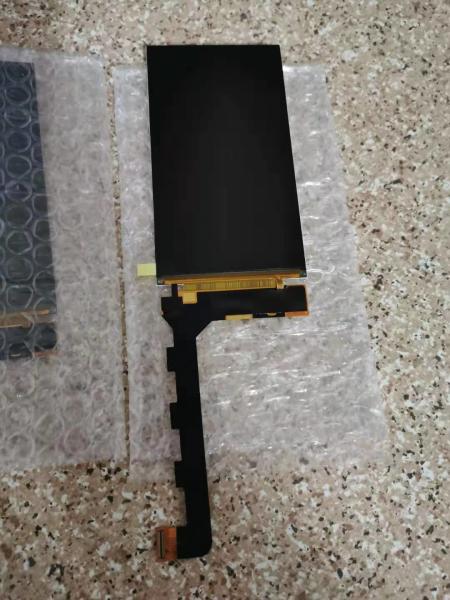

Sharp 5inch lcd display LS050T1SX18 with touch panel 1080(RGB)×1920, FHD 445PPI 480 cd/m² 40PIN for mobile phone use

  • Panel Brand
    Sharp
  • Panel Model
    LS050T1SX18
  • Panel Size
    5.0"
  • Panel Type
    CG-Silicon, LCM
  • Resolution
    1080(RGB)×1920, FHD, 445PPI
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    61.641(W)×109.584(H) mm
  • Bezel Opening
    -
  • Outline Size
    63.64(W)×116.224(H) ×1.16(D) mm
  • Surface
    -
  • Brightness
    480 cd/m² (Typ.)
  • Contrast Ratio
    1500:1 (Typ.) (TM)
  • Viewing Angle
    80/80/80/80 (Min.)(CR≥10)
  • Display Mode
    New Mode2, Normally Black, Transmissive
  • Best View on
    Symmetry
  • Response Time
    35 (Max.)(Tr+Td)
  • Display Colors
    16.7M 95% NTSC
  • Lamp Type
    6S2P WLED , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    PCAP
  • Panel Weight
    14.0g (Typ.)
  • Application
    1080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX18
  • Signal Interface
  • MIPI (4 data lanes) , 40 pins Connector
  • Input Voltage
  • 1.8/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE)
  • Environment
  • Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

1080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX181080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX181080×1920 FHD 445PPI 480Cd/M2 Sharp Lcd Touch Panel LS050T1SX18
