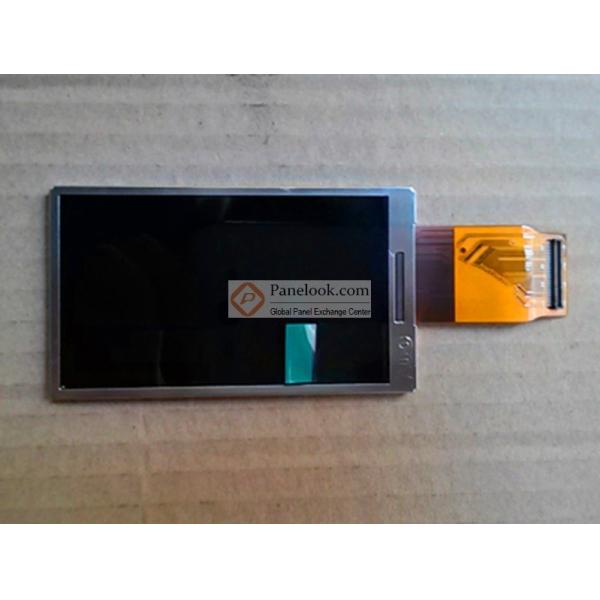

AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module
AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module
AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module
AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module
Specifications
Brand Name :
auo
Model Number :
A030FL01 V2
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
480*272
style :
70PIN IPS
brightness :
300 CD/M2
color :
16.7M
contrast ratio :
500 :1
Description
  • Manufacturer
  • AUO
  • Model Name
  • A030FL01 V2

Max. Ratings Storage Temp.: -25 ~ 80 °C

Operating Temp.: 0 ~ 60 °C

Voltage Supply 3.3/3.3V (Typ.)(VDD/VDDIO)

Signal Type Parallel RGB (1 ch, 8-bit) + SPI , Connector , 70 pins

Refresh Rate 60Hz

TouchscreenWithout Mass22.2g (Typ.)

Used forAUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module

Color Depth16.7M

Backlight 4S1P WLED Good View at Symmetry

Work Mode ATR-MVA, Normally Black, Transflective Viewing Angle 80/80/80/80 (Typ.)(CR≥10)

Response15/10 (Typ.)(Tr/Td) ms Luminance 300 cd/m² (Typ.)

Contrast Ratio 500 : 1 (Typ.)

(TM) Bezel Area(mm) 68.12 × 39.73 (H×V)

Treatment- Active Area(mm)65.52 × 37.128 (H×V)

Outline(mm)76.12 × 43.7 (H×V×D) Pixel Number 480(RGB)×272 (WQVGA)

ArrangementRGB Vertical Stripe

Screen Size 3.0 inch

Screen TypeLCM, a-Si TFT-LCD

AUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd ModuleAUO 3 Inch A030FL01 V2 LCD Display Panel 60Hz For PMP Pocket TV MP4 Lcd Module

All Origianl product will be send to customer after full test one by one.

  • Spec details can be send to you via email,please contact us.
