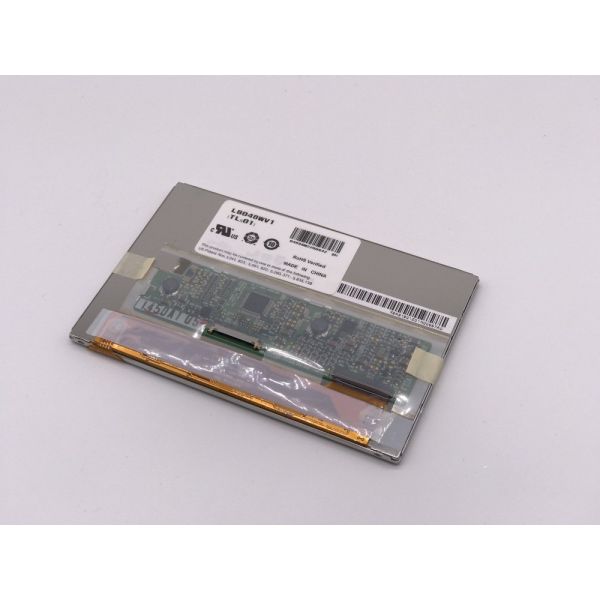

800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC
Specifications
Brand Name :
LG
Model Number :
LB048WV1-TL01
Certification :
Rohs,CE,FCC
Place of Origin :
KOREA
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
material :
glass oled
color :
262k colors
model :
WLED
style :
wide screen high resolution 800*480
brightness :
280cd
connector :
30pin
contrast ratio :
350:1
working life :
30K hours
Description
Panel Brand
Panel Size
Resolution
Display Area
Outline Size
Brightness
Viewing Angle
Best View on
Display Colors
Frequency
Weight
LG.Philips LCD
4.8"
800(RGB)×480 , WVGA
103.8(W)×62.28(H) mm
114.65(W)×74.7(H) ×5.88(D) mm
280 cd/m² (Typ.)
65/65/50/50 (Typ.)(CR≥10)
-
262K
60Hz
77.0±7.0g
Panel Model
Panel Type
Pixel Format
Bezel Opening
Surface
Contrast Ratio
Display Mode
Response Time
Lamp Type
Touch Screen
Application
LB048WV1-TL01
a-Si TFT-LCD , LCM
RGB Vertical Stripe
106.8(W)×65.28(H) mm
Glare (Haze 0%), Hard coating (3H)
350:1 (Typ.) (TM)
TN, Normally White, Transmissive
16 (Typ.)(Tr+Td)
6S2P WLED , With LED Driver
4-wire Resistive Touch, F/G
Signal Interface LVDS (1 ch, 6-bit) , 30 pins , Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC800*480 Pixels Industrial LCD Display LG 4.8 Inch LB048WV1-TL01 For BENQ S6MID UMPC

LG.Philips LCD Co., Ltd. (hereafter called LG.Philips LCD) LB048WV1-TL01 (Alias: LB048WV1 (TL)(01)) is a 4.8 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch, F/G. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by us in the following: Glare Surface, Landscape type, With Touchscreen, White LED Backlight, Wide Aspect Ratio , 3 in 1 FPC. Based on its features, we recommend that this model be applied to MID UMPC etc. According to the information stored , this model mass production on Q1, 2008, Now this model is discontinued. We inputted this model's specification on Aug 30 2012 for the first time, and the latest update on Jan 22 2017. If you want to embed LB048WV1-TL01 LCM in your future product, we strongly recommend that you should contact with LG.Philips LCD or it's distributor to learn lateast production and specification detail. The LB048WV1-TL01 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All our LCD LED screen monitor module panel products will be full test one by one before sending .
