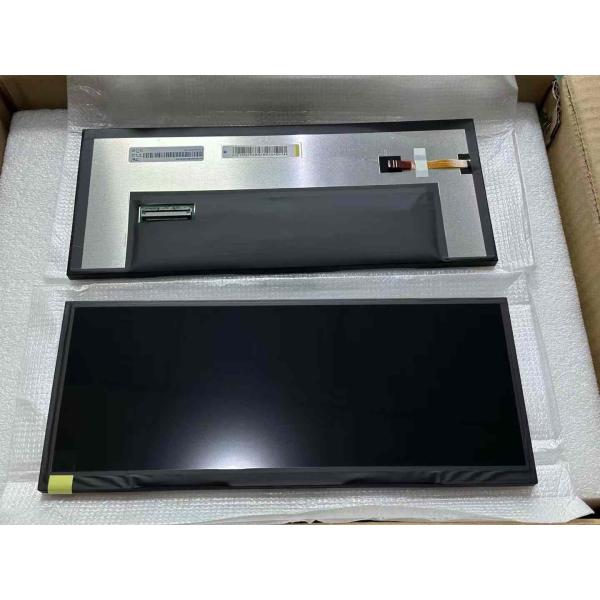

10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display
Specifications
Brand Name :
BOE
Model Number :
AV103Z7M-N13
Certification :
Rohs,CE,FCC
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T,W, Western Union, MoneyGram
Supply Ability :
3000pcs per week
Delivery Time :
4-5 working day
Packaging Details :
Industrial packing
Quality :
Brand new Original
Package :
Original industrial packing
resolution :
1920*720pixels
style :
LCD 50PIN
brightness :
850 CCD M2
color :
16.7M
contrast ratio :
1000 :1
working life :
30K Hours
Description

10.3Inch BOE Car LCD Display model AV103Z7M-N13 1920*720Pixels 50pin automotive display

BOE Technology Group Co., Ltd. (hereafter called BOE) AV103Z7M-N13-3850 (Alias: COG-CHSDT002-01) is a 10.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 85°C . It's general features are summarized by Einklcd in the following: Wide Temperature, Hight Brightness, WLED Backlight, Bar Display, U/D,L/R Reverse . Based on its features, Einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in Einklcd this model mass production on Q3, 2019, Now this model is in production. We inputted this model's specification on Mar 22 2021 for the first time, and the latest update on Sep 8 2023. If you want to embed AV103Z7M-N13-3850 LCM in your future product, Einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The AV103Z7M-N13-3850 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:BOE
Model P/N: AV103Z7M-N13-3850
Diagonal Size:10.3"Panel Typea-Si TFT-LCD, LCM
Resolution:1920(RGB)×720 200PPI Pixel
Format: RGB Vertical Stripe
Active Area: 243.648(W)×91.368(H) mm
Bezel Opening-
Outline(mm)
Luminance
Viewing Angle
Good View at
Color Depth
Mass
Refresh Rate
256.748(W)×107.068(H)×10.5(D)
850 (Typ.)(cd/m²)
85/85/85/85 (Min.)(CR≥10) Left / Right / Up / Down
Symmetry
16.7M 75% NTSC
-
60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Treatment
Contrast Ratio
Work Mode
Response
Backlight
Used for
Touchscreen
-
1000 : 1 (Typ.) (TM)
HADS, Normally Black, Transmissive
IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
25 (Typ.)(Tr+Td) ms
9S3P WLED , No Driver
Automotive Display
Without
Signal Type LVDS (2 ch, 8-bit) , 50 pins Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C
