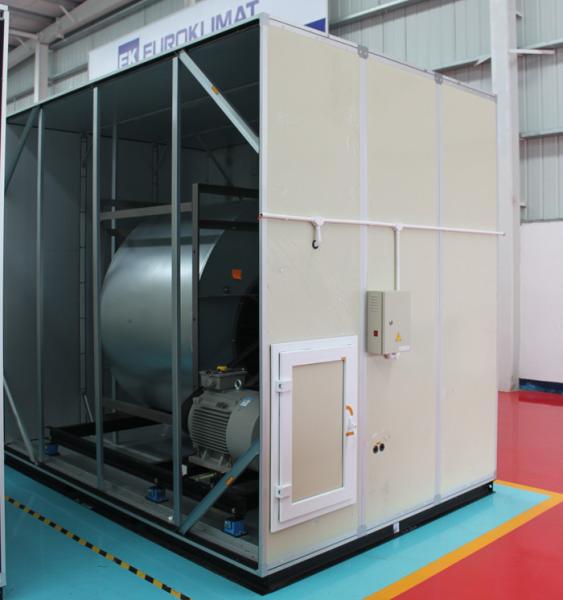

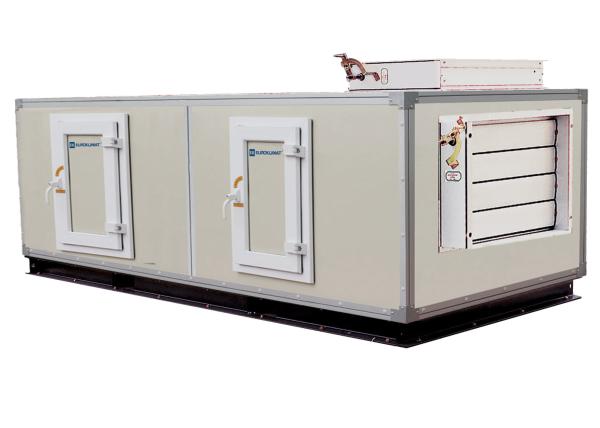

4 / 6 / 8 Row Double Skin Return Air Handling Units For Schools / Hospitals
4 / 6 / 8 Row Double Skin Return Air Handling Units For Schools / Hospitals
4 / 6 / 8 Row Double Skin Return Air Handling Units For Schools / Hospitals
4 / 6 / 8 Row Double Skin Return Air Handling Units For Schools / Hospitals
Specifications
Brand Name :
EuroKlimat
Model Number :
EKDM
Certification :
ISO9001, ISO14001, OHSAS18001, CRAA, CQC
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5,000pcs per month
Delivery Time :
15 working days after received your payment
Packaging Details :
Plywood
Product Name :
Double skin Return air handling units
Installation :
Ceiling/floor installation
Cooling Capacity(kW) :
25-300
Heating Capacity(kW) :
28-330
Air Flow(m3/h) :
5000-60000
Aluminum Fins :
Shutter-type hyperbolic and hydrophilic fins
Test Pressure (Mpa) :
3.3
Coils rows :
4/6
Description

Double skin Return air handling units with 4-8 rows cooling coil air flow 2,000-400,000 m3h

EKDM air flow range is from 1000m3/h to 400000m3/h. Available functional sections include fresh/return air mixing section, cooling section, heating section, primary/medium/high efficiency filter section, electric heating section, humidifying section, sound attenuation section, heat recovery section, secondary air-return section, fan section, air diffuser section etc. Different combinations can meet different air handling requirements.

• The surface of the unit is made of quality color steel, which can resist corrosion, scratch and ultraviolet radiation.


• Internal panels are made of steel plates galvanized with aluminum and zinc, with an assured service life of more than 15 years. All panels feature end-to-end joints and smooth surfaces, without any bur or corroded point.


• The internal panels feature reinforced design, which is strong enough to support the largest air handling unit.


• The unit panel has two thicknesses, namely 30mm and 50mm.Inside the panel, hermetically foamed polyurethane (no fluorine) with a density of 48kg/m3 is used as the heat- insulating material. The heat conductivity factor is less than 0.02W/m°C.


• Each functional section of the unit is equipped with a steel trough base, thus ensuring it is well supported, easy to transport and assemble. The overall robustness of the unit meets the standard of CEN2.

Specifciations

Unit model EKDM Rated air flow m3/h 4 rows 6 rows 8 rows
Total cooling capacity kW Water flow l/s

Water resi-

stance kPa

 Pipe diameter DN Total cooling capacity kW Water flow l/s

Water resi-

stance kPa

 Pipe diameter DN Total cooling capacity kW Water flow l/s Water resi-stance kPa Pipe diameter DN
306 2000 12 0.5 6 40 16 0.7 15 40 18 0.8 26 40
406 3000 17 0.8 7 40 23 1.1 16 40 27 1.3 27 40
407 4000 23 1.1 13 40 31 1.5 32 40 36 1.7 51 40
408 5000 29 1.4 20 40 38 1.8 48 40 42 2.0 29 40
508 6000 36 1.7 20 40 48 2.3 48 40 52 2.5 23 50
607 7000 39 1.9 17 40 53 2.5 38 40 61 2.8 58 50
608 8000 47 2.2 24 40 62 3.0 58 40 68 3.2 26 50
511 9000 57 2.7 57 40 70 3.3 37 40 78 3.8 31 50
610 10000 64 3.1 51 40 76 3.6 29 50 89 4.3 51 50
611 12000 70 3.4 20 40 92 4.4 44 50 103 5.0 38 50
712 15000 90 4.3 23 50 119 5.8 55 65 131 6.3 44 65
812 18000 107 5.2 27 65 141 6.8 60 65 157 7.6 51 65
813 20000 121 5.8 34 65 151 7.3 40 65 167 8.2 31 65
915 25000 158 7.5 51 65 196 9.3 53 65 214 10.2 38 80
1015 30000 188 9.0 47 50 232 11.2 53 65 254 12.0 30 80
1313 35000 208 10.0 32 65 262 12.6 37 65 304 14.4 59 65
1315 40000 250 12.0 49 65 310 14.8 54 65 338 16.0 37 65
1515 45000 286 14.0 53 65 352 17.0 58 65 386 18.6 41 65
1417 50000 300 14.4 38 65 368 17.4 36 65 430 20.4 56 65
1520 60000 380 18.0 49 80 464 22.4 38 65 516 25.2 33 65
1720 70000 440 21.2 55 80 536 26.0 42 65 596 28.8 33 80
1722 80000 464 22.0 25 80 616 29.2 55 65 688 33.2 45 80
1626 90000 544 26.0 40 80 684 33.2 44 80 752 36.8 32 80
1826 100000 608 28.8 42 80 760 36.4 45 80 832 40.0 33 80
1852 200000 1216 57.6 40 80 1368 66.4 44 80 1504 73.6 32 80
3652 400000 2432 115.2 40 80 2736 132.8 44 80 3008 147.2 32 80

Note:
■ Temperature of cooled inlet water: 7°C; temperature drop 5°C.
■ Return air conditions for standard cooling operation: dry/wet bulb temperature of inlet air: 27°C/19.5°C.
■ Coils are copper pipes with aluminum fins (12 fins/inch). EK can provide coils with 8~14 fins/inch.
■ This table only lists the performance parameters of some typical models among many models.
