ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family
Specifications
Brand Name :
EKSA.ST.STC
Model Number :
ST/STC
Certification :
CE.ISO.SONCAP
Place of Origin :
FUJIAN,CHINA
MOQ :
30 pcs for sample test
Price :
Negotiable
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
500PCS per month
Delivery Time :
Within 4 weeks after received advance payment
Packaging Details :
Plastic foam in plywood case packing
Output Type :
ST single phase,STC three phase
Speed :
1500RPM / 1800RPM
Frequency :
50/60HZ
Rated Voltage :
220/230/400/380
generator spare part :
avr,circuit breaker,v belt pulley,
Alternator windi :
100% copper wire or aluminum wire
Description

ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family

Products details
RELATED PRODUCTS

ST single phase ac synchronous alternator

Option voltage: 110/220V ,220/380V ,230/400V ,240/415V ,254/440V
Model Output Current(A) Voltage (V) Pole number power factor Synchronous
speed(rpm)		 N.W /G.W (KG) PACKING SIZE (CM) Quantity 1*20FT
kw Series conneclion
ST-1.5 1.5 6.5/230 13/115 4 1 1500rpm/50hz 1800rpm/60hz 40/44 52*29*45 440
ST-2 2 8.7/230 17.4/115 42/46
ST-3 3 13/230 26/115 44/48
ST-5 5 21.8/230 43.5/115 78/88 62*35*51 230
ST-7.5 7.5 32.6/230 65.2/115 83/93
ST-12 12 52.2/230 104/115 120/130 68*42*58 170
ST-15 15 65.3/230 130/115 133/143 73*45*63 120
ST-20 20 87/230 174/115 145/155
ST-24 24 104/230 209/115 165/175

STC three phase ac synchronous alternator

Option voltage: 110/220 Volts,220/380 Volts,230/400 Volts,240/415 Volts,254/440 Volts
Model Output Current(A) Pole number power factor Synchronous
speed(rpm)		 N.W /G.W (KG) PACKING SIZE (CM) Quantity 1*20FT
kw KVA
STC-3 3 3.8 5.4 4 0.8 1500rpm/50hz 1800rpm/60hz 44/48 52*29*45 440
STC-5 5 6.3 9 78/88 62*35*51 230
STC-7.5 7.5 9.4 13.5 83/93
STC-10 10 12.5 18.1 110/120 68*42*58 170
STC-12 12 15 21.7 120/130
STC-15 15 18.8 27.1 133/143 73*45*63 120
STC-20 20 25 36.1 145/155
STC-30 30 37.5 54.1 265/280 89*53*72 120
STC-40 40 50 72.2 280/295
STC-50 50 60 90.3 295/310

ST STC alternator Assembly by Metal Fan,Sealed Bearings, Balanced rotor,100% copper stator winding, Good quality AVR ,Pulley installed, TERMINAL BOX COMP, carbon brush, alternator carbon brush holder,copper ring,voltage meter,white rectifier etc

PRODUCTS ADVANTAGES

1.The alternator are to be used in town, the countryside, work sites, Mountain and lands as a electric power source for lighting purpose, it can also be used as a reserved power source for emergent case

2.The generators are of drip-proof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance

3.The generators are of three-phase four-wire type, making use of atar connection with neutral point.

4.The rated line voltage is 400V, phase voltage 230V, frequency 50Hz, power factor 0.8(lag).

5.It can provide 60Hz and the other voltage´s generator according to necessary.

6.They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed, when the revolution slip of prim mover is 3% and load varies in the range of 0-100% cosφ1.0-0.8 they give good constant voltage.

7.After sudden change (increase or decrease)of load, the generators will soon return to their normal working state, without any starting devices the generator can directly start an unloaded squirrel cage induction motor.

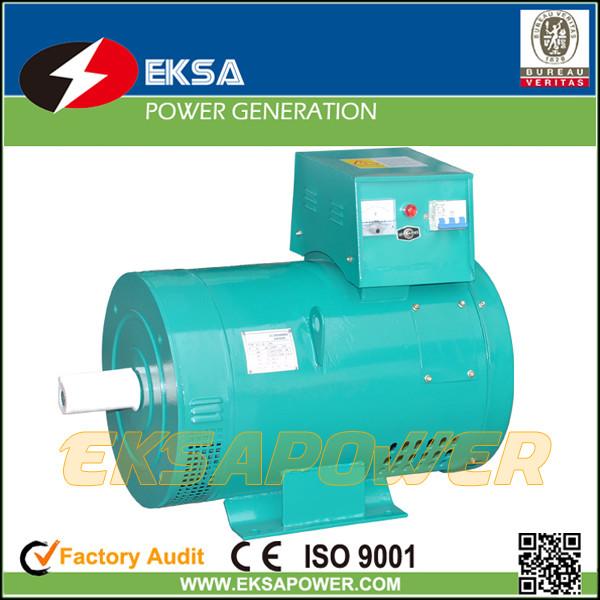

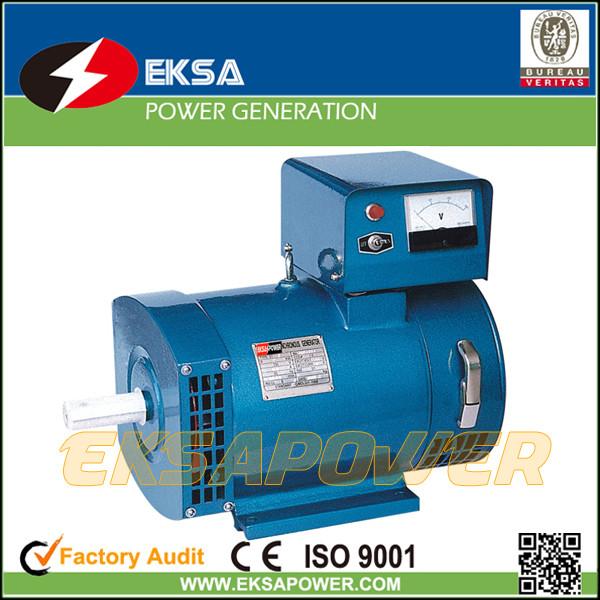

PRODUCTS IMAGES

ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family

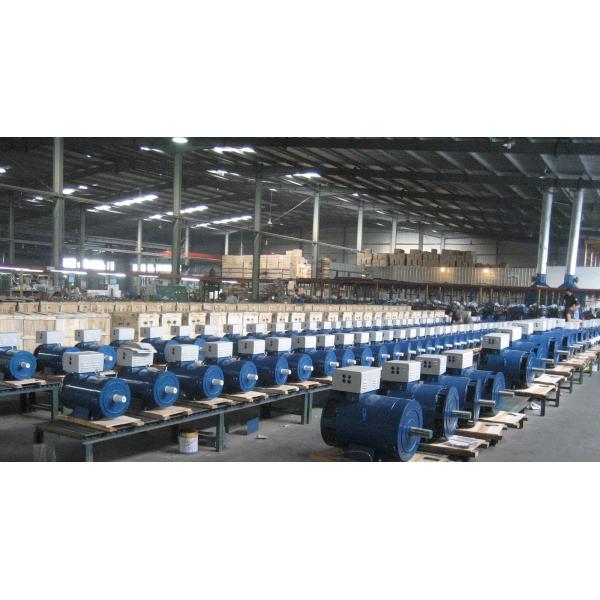

OUR ADVANTAGE


ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family

Sales Process

ST single phase STC three phase Serise Brush Alternator AC Electric Generator Set 3kw To 50kw price list for Family

FAQ

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the delivery time is longer.

Q: What certificates do you have?

A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, CIQ forEgypt, SASO for Saudi Arabia, etc

Q:What is your MOQ?

A: Above 1pc

Q. Which port do you often use when export?

A: Fuzhou Port, or as customer request.

Q.How to choose the power?

A.:Collect all power of your equipments,take the current into your consideration.

Q.What is the difference between Prime power and Standby power?

A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.

Standby power is the limit value of maximum output for emergency use. Overloading is prohibited

Q.What about the warranty

Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production orraw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for gen-set.

Interested in our products contact with us no hesitated !
