World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator
World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator
Specifications
Brand Name :
1104A-44TG2
Model Number :
1104A-44TG2
Certification :
CE.ISO.SONCAP
Place of Origin :
UK
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
500PCS PER MONTH
Delivery Time :
Within 4 weeks after received advance payment
Packaging Details :
plastic foam or plywood case packing
Rate Power :
64kw/80kva
Rated Current :
115A
Alternator :
Stamford,Mecc Alte Or hina Alternator
Description

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

Technical

Genset specification
Genset Model ENSP80S-3
Prime Power(50HZ) 64KW /80KVA
Standby Power(50HZ) 70KW /88KVA
Frequency/Speed 50Hz/1500rpm
Standard Voltage 230V/400V
Voltage Available 220V/380V
Phases Three phases, four wires

Engine Specification General Performance
Manufacturer: UK Perkins Engine Co. Ltd.
Engine Model: 1104A-44TG2
Engine Type: 4 stroke, Vertical in-line, 4-cylinder
Engine Speed: 1500 r.p.m
Prime Power: 72kw /96HP
Lubrication oil: CH4/15W-40
Lubrication oil Capacity : 8L
Governor Type: Mechanical
Displacement: 4.4L
Cylinder Bore * Stroke: 105mm × 127mm
Compression Ratio: 17.25:1
Coolant Capacity 13 Liters

Alternator data
Engine Model: Stamford UCI224G
Phase 3 Phase
Power Factor 0.8
Drip Proof IP 23
Insulation class H
Voltage regulation ± 0,5 %
Altitude ≤ 1000 m
Over speed 2250 min -1

Genset Standard Configuration
♦ Assembled by Perkins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard
♦ Automatic control panel and electricity output switch cabinet
♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

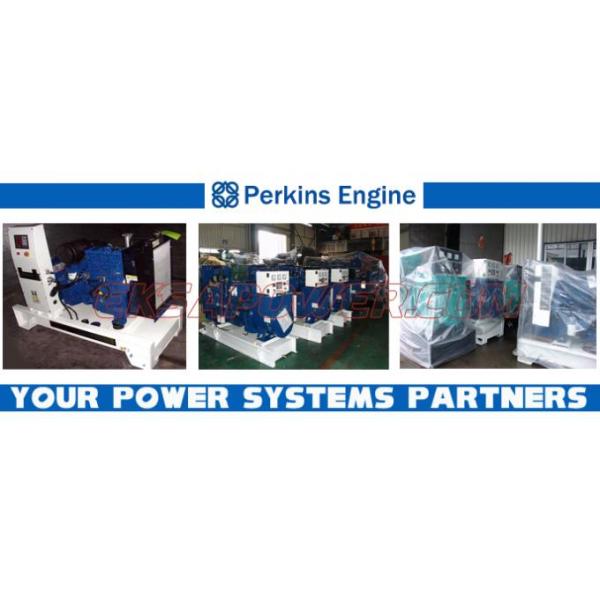

Workshop Images:

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

SILENT TYPES

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

Reliability

  • Powered by world-famous PERKINS engine and reliable alternator,featured with strong power,quick start,easy maintenance and operation,excellent,service with global warranty.

  • The canopy is made of 2mm cold rolled steel plate and high quality painted,the paint is highly endurable against erosion and scratch,strongly,rustproof.

  • Adopt stainless steel door hinge and high quality door lock.

  • Enlarge the area of air intake and discharge, and give up traditional bottom air intake design,which can avoid dusts and other impurities being,inhalated into the inside of canopy.

  • Anti-vibration device,effectively reduce vibration and prevent distortion or harmonics output of the generator sets.

Safety

  • Design,production and test of genset is compliance with CE safety standard

  • Equipped with circuit breaker when engine stops in emergency for avoiding possible electric shock risk when re-start.

  • Equipped with emergency stop button,can stop the genset immediately when emergent problem happens.

  • The controller has a historical operation recording for troubleshooting and inspection.

Easy to operate

  • Deepsea DSE7320 controller with AMF function,automatical control and protection.

  • Connected with the mains through ATS,which can automatically transfer between mains and genset.Meanwhile,multiple gensets can be paralleled for bigger power needs.

  • The soundproof genset includes base fuel tank for at least 8 hours running.

  • Fuel inlet,fuel drain outlet and design a coolant filling hole on the top of soundproof canopy for filling coolant conveniently.

  • The forklift holes and lifting eyes located on bottom of canopy,make the genset easier to move by forklift or crane.

  • The daily maintenance work can be performed on both sides of the genset,and the wide doors allow access to all areas of the genset.

PACKAGES

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

Workshop

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

Sales Process

World class compact low noise 3 Phase 80KVA /64KW Perkins Genset Emergency Diesel Generator

FAQ(Frequently Asked Question):

1.What is your warranty period?

Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

2.Does your generator have global warranty?

Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

3.Can you accept OEM?

Yes, we can accept OEM.

4.What is your payment terms?

We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

5.What is your delivery time?

Our normal delivery time within 4 weeks. But if your order is some special engine and alternator, then the delivery time will be prolong.
