Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed
Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed
Specifications
Brand Name :
Deutz
Model Number :
F8L413T
Certification :
ce.iso.soncap
Place of Origin :
Germany
MOQ :
1 pcs
Price :
Please contact with us for latest price request
Payment Terms :
T/T, L/C, MoneyGram
Supply Ability :
500PCS/MONTH
Delivery Time :
with in 4 weeks after deposited
Packaging Details :
In wooden case strong adequate for shipment.
prime power :
100KW/125KVA
Speed :
1500/1800rpm
voltage :
220v/380v
Alternator Brand :
Stamford,Leroy Somer,Copy Stamford
Deepsea :
Deepsea,Comap,Harsen,Smartgen
Usage :
Common Units, Standby Unit, Emergency Crew
Fuel Capacity :
8-12 Hours Running
Certiciations :
ISO9001,ISO4001,Ce,Soncap
Description

Powerful 60kva/100kva/200kva power backup Dalian Deutz generator sets for heavy duty designed
TECHNICAL DATA

Genset’s Data
Genset ModelEP-D100
Prime Power100KW/125KVA
Rated Voltage400/230V
Frequency50/60Hz
Power Factor0.8(lagging)
The regulating rate of steady voltage≤±0.5%
The regulating rate of instantaneous voltage≤-15%/ +20%
The time of steady voltage≤1.5sec
The waving rate of voltage≤1.0%
The regulating rate of steady frequency≤3%
The regulating rate of instantaneous frequency≤±10%
The time of steady frequency3sec
Dimension (L×W×H) (mm)2200*1000*1450
Genset weight (kg)1200
Diesel Engine
BrandDeutz
ModelF8L413T
Number of Cylinders8
Rotating Speed1500/1800RPM
CycleFour stroke
Typewaste gas turbine boost,direct spurting type
Bore×Stroke(mm)128*142
Displacement(L)14.618
Lubricating Capacity(L)30
Speed GovernorElectrical
Cooling SystemWater-cooled
Speed Stability (%)≤5%
Fuel Consumption at 100% Load232g/kw.h
Starting MethodDC24V Electrical starting
Alternator
BrandStamford
ModelEP-274C
Number of Phase3
Connecting TypeThree Phase and Four Lines
Number of Bearing1
Grading ProtectionIP22
Altitude≤1000m
Exciter TypeBrushless (AVR automatic voltage regulating)
Insulation ClassH degree

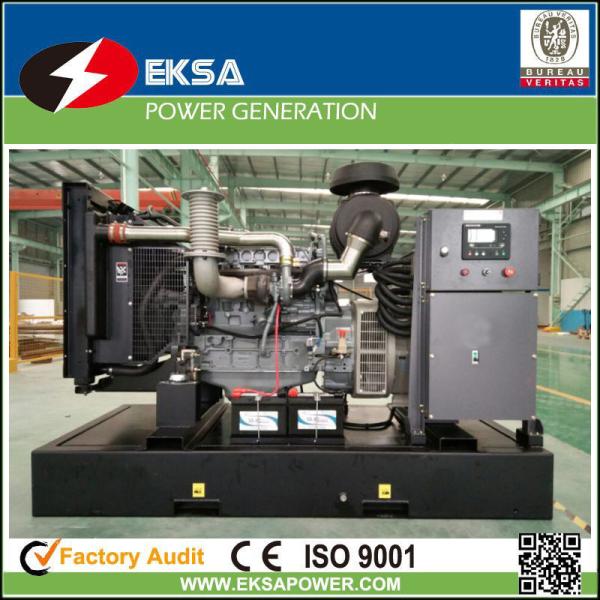

The components of the genset
(1) DEUTZ Diesel Engine; (2)Sdanford Alternator; (3) Control Panel with ATS
Control Panel


Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed

Product Description

>>Advantage:

1.Diesel engine: Powered by heavy duty industrial diesel engine, germany deutz water cooled diesel engine.
2. Cooled system:Radiator 50 degrees max, fans are driven by belt, with safety guard.
3. AC power output: 12/24DC start motor and storage battery.
4.Alternator:Brushless, self-excited, IP22/23, insulation H alternator.
5. Absorber to reduce vibration.
6. Dry type air filter, fuel filter, oil filter
7. Main line circuit breaker.
8. Control system: key start control panel as standard, digital auto start or ATS system is optional.
9. 8 hours operation base fuel tank
10. High efficient muffler to reduce noise.
11. Ripple flex exhaust pipe, exhaust siphon and flange etc.
12. Genset type: open type or soundproof/silent type, or trailer type.
13. Maintenance and operation manual for generator, quality certificate, etc.
14. Rigorous testing must be done before delivery, including 50% load, 75% load, 100% load, 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop).

Open type gensets details

Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed

Genset Standard Configuration
♦ Assembled by Cummins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard
♦ Automatic control panel and electricity output switch cabinet
♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.


Sales Process

Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed


PACKAGES

Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed

Workshop
Powerful 60kva/100kva/200kva Dalian Deutz generator sets for heavy duty power backup designed


FAQ(Frequently Asked Question):
1.What is your warranty period?
Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3.Can you accept OEM?
Yes, we can accept OEM.
4.What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5.What is your delivery time?
Our normal delivery time within 4 weeks. But if your order is some special engine and alternator, then the delivery time will be prolong.

Interested in our products contact with us no hesitated !
