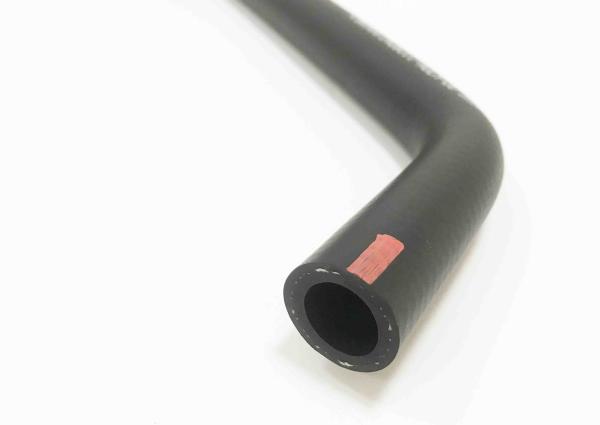

Power Steering Rubber Oil Hose Sae J189 Low Pressure Braided Reinforcement
Power Steering Rubber Oil Hose Sae J189 Low Pressure Braided Reinforcement
Power Steering Rubber Oil Hose Sae J189 Low Pressure Braided Reinforcement
Power Steering Rubber Oil Hose Sae J189 Low Pressure Braided Reinforcement
Specifications
Brand Name :
GoodYou
Model Number :
EOH10
Place of Origin :
China
MOQ :
500Meters / 100pcs
Payment Terms :
T/T, Western Union
Delivery Time :
15-20days
Packaging Details :
Paper Carton
Price :
Price is negotiable
Material :
NBR/Yarn/CSM
Temp. Range :
-40~+120℃
Hardness :
65~75 Shore A
Work Pressure :
0.2~0.5Mpa
Burst Pressure :
1~4Mpa
Size :
Customized
Description

SAE J189 Low Pressure Return Power Steering Pipe Oil Suction Hose Braided Reinforcement

Characteristic Performance
Fuel resistance CE10,CE20,CM15,CM85, OXIDIZED FUEL, FUEL A/B/C/D,Gasoline,Diesel
Permeability <200grams/m2/day
Flammability resistance Self extinguish at 10 secs
Ozone resistance 50pphm*100H*40℃*20%Stretch
Meet SPEC

SAE J200 BG710 SAE J30 R6 SAE J30 R7

SAE J189 Low pressure return power steering rubber hose, a low pressure hose that carries the fluid from the steering gear/rack back to the pump or to the fluid reservoir. Suction hose is built to transfer of oil and petroleum. Both of the hoses require oil resistance. NBR(nitril) benefits from excellent oil gasoline resistance is usually be choosed in this application. Due to its poor ozone resistance. NBR is usually used as inner tube, and select CSM as outer cover to withstand ozone, UV and heat aging resistance. PET braided reinforcement is added as middle layer to strength its pressure resistance. Under higher working pressure, aramid (Kevlar) is better to use to meet the application.

With expertise in rubber filed, our technical staff work closely with customer on rubber compound formula design, rubber parts development, prototyping and production. Our QC team professionally control the whole process from raw material income to products shipment. We do many material tests before production as well as finished products to ensure performance meet specific demand.

Welcome to contact with us. Customers' satisfaction is our priority.
