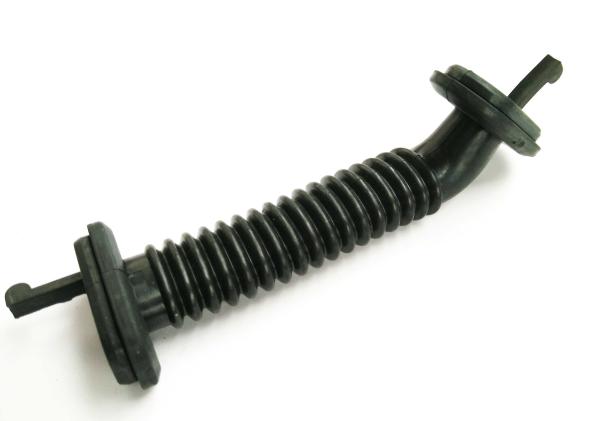

EPDM Rubber Dust Cover Auto Door Cable Protective Automotive Wire Harness Grommets
EPDM Rubber Dust Cover Auto Door Cable Protective Automotive Wire Harness Grommets
Specifications
Brand Name :
Goodyou
Model Number :
MDC05
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T, Western Union
Delivery Time :
20days
Packaging Details :
Paper Carton
Material :
EPDM
Temp. Range :
-40℃~+120℃
Ozone resistance :
50pphm*200H
Size :
Customized
Price :
Price is negotiable
Description

Front and Rear Door Wire Harness Protective Rubber Dust Boot Automotive Wire Harness Grommets

Goodyou manufactures a variety of wiring harness grommets used to route and protect large wiring bundles through the cavity of a vehicle, to reduce vibration and muffle sound, resist water leakage and dust-proof. The rubber wiring harness grommets are widely used in automobiles, commercial buses & trucks, ATV and agriculture vehicles, etc, which ask for more larger and complex design to meet their electrical systems. Godoyou engineers are capable to co-work with customer to design and develop high quality door wire boots.

The Key Points of Rubber Wire Boots Design:

1. On the contact area of wiring boot and metal panel, 5mm flat area (form the edge of rubber boot to the metal panel) need to be reserved, otherwise, the sealing effect between sleeve and metal panel will be affected, and have risk of water leakage.

2. The cross-sectional area of wiring boots and the assembly feasibility need to be be taken into account when designing the sectional area of the inner hole of door wire boots.

3. The total length of wiring boots is limited by its design. Normally, the length shall not beyond 10times of the diameter of its inner hole. For example, if the ID of inner hole is 20.7mm, the total length need to be designed within 207mm. Otherwise the rigidity of rubber mold will be affected and easy to occur deform, and finally lead to uneven thickness of the door wire harness boots.

About Us

We are a IATF 16949 certified factory, providing customers with high quality rubber hoses and various kinds of molded rubber parts. Customized design is our advantage. We are closely working with customers to do project evaluation, and select right rubber material, or design rubber formula, and develop propotypes. Most of our products tooling are belong to customers, so we can not share with the third party. If you are seeking to develop a new custom design door wiring boots, welcome to contact with us!

Welcome to contact with us. Customers' satisfaction is our priority!
