Specifications
Brand Name :
Hei Yan
Model Number :
HYG
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, Western Union
Supply Ability :
5 Sets per M
Delivery Time :
60 days
Packaging Details :
Plastic film or wooden case
Usage :
Pipe and steel profile bending
Bending size :
3-76Inch
Bending angle :
0-180Degree
Bending radius :
3-6D
Heating system :
KGPS
Input voltage :
380V
Description

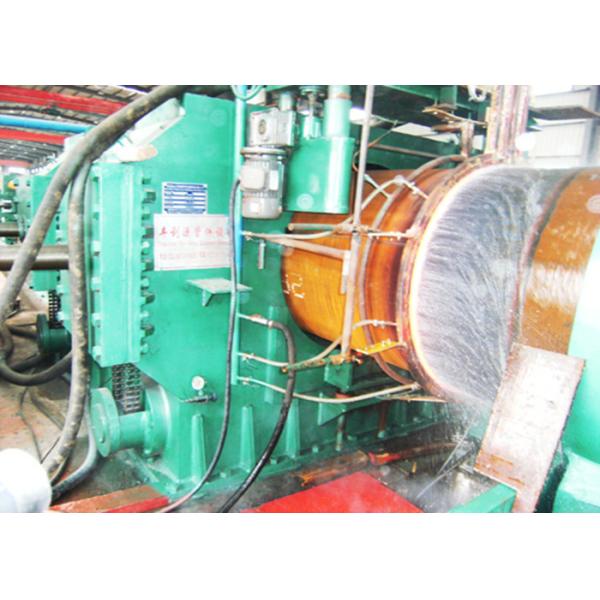

Induction Pipe Tube Bending Machine To India Pipe Making Factory

We supply high quality pipe bending machine, induction heating pipe bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service

Max size Model Heating power Cylinder capacity Thickness
6” HYG-159 200KW IDΦ140 ODΦ168 5-20
8” HYG-219 200KW IDΦ140 ODΦ168 5-20
12” HYG-325 250KW IDΦ180 ODΦ219 5-20
16” HYG-426 350KW IDΦ180 ODΦ219 5-20
20” HYG-530 400KW IDΦ180 ODΦ219 5-20
24” HYG-630 500KW IDΦ200 ODΦ245 5-20
28” HYG-720 600KW IDΦ200 ODΦ245 5-20
32” HYG-813 800KW IDΦ220 ODΦ273 5-20
36” HYG-914 800KW IDΦ250 ODΦ299 5-20
48” HYG-1220 1000KW IDΦ280 ODΦ325 5-20
56” HYG-1420 1000KW IDΦ280 ODΦ325 5-20
60” HYG-1520 1000KW IDΦ280 ODΦ325 5-20
64” HYG-1620 1000KW IDΦ320 ODΦ377 5-20

Modular Structure Pipe Bending Machine 0 - 180 Degree Bending Angle HeiYan

Modular Structure Pipe Bending Machine 0 - 180 Degree Bending Angle HeiYan

Induction Pipe Tube Bending Machine To India Pipe Making Factory parts:

PLC:
Automatic operation,easy to operate,fast efficiency and save labors for whole pipe bender's operation. Support any language sites.

Shift arm:
Long layout design to achieve bends radius from 2D-10D even more.Centre Axis is important position to measure various bends radius.Pieces are casting and machining to get precise running when coordinated with PLC systems.

Induction Pipe Tube Bending Machine To India Pipe Making Factory Support board:
Strong plate welded,mainly for rolling work piece. The supporter of Punching transformer.

Pushing board:
Clamp and fix the work piece, drive work piece go ahead or back return during machine working.Different diameter work piece's fixing by steel pads add and lock on Pushing board.
Modular Structure Pipe Bending Machine 0 - 180 Degree Bending Angle HeiYan

Modular Structure Pipe Bending Machine 0 - 180 Degree Bending Angle HeiYan
