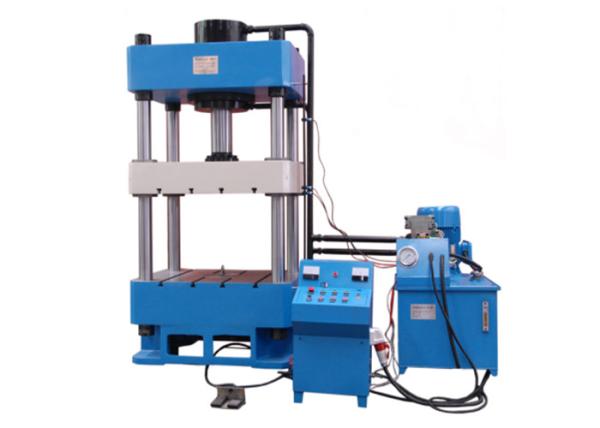

Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Cap Cold Forming Hydraulic Press Machine 80 - 1000T Press Force Long Service Life
Specifications
Brand Name :
Hei Yan
Model Number :
HYY
Certification :
ISO CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
6Sets per month
Delivery Time :
30-60 working days
Packaging Details :
Wooden case and plastic film
Press force :
80-1000T
Usage :
Elbow calibration
Type :
Four column or H frame
Input voltage :
380V
Operate way :
Semi auto
Color :
Customized
Description

Seamless Steel Reducer And Cap Cold Forming Hydraulic Press Machine

Applications of hydraulic press machine:
Seamless Steel Reducer And Cap Cold Forming Hydraulic Press Machine is Used for pressing technology of plasticity material. Such as flanging, sheet tensile, bending etc, can also used for correct, pressing, could extrusion and pressure molding process of plastic products and the powder product.

Specification
Item Unit HYY-63 HYY-100 HYY-200 HYY-315 HYY-315A HYY-500 HYY-500A HYY-630 HYY-800 HYY-1000 HYY-1600 HYY-2000 HYY-2500
Nominal Pressure KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 16000 20000 25000
Ejecting Force KN 180 190 300 400 400 1000 1000 1000 1000 1000 2000 2500 -
Back Stroke Force KN 190 320 470 600 600 1000 1000 1000 1100 1300 1000 2600 1000
Stroke Length mm 400 600 710 800 800 900 900 900 900 900 1000 1000 1200
Ejecting Stroke mm 150 200 200 250 250 350 350 350 350 350 400 300 -
Opening Height mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 2500 2500
Speed of Slide Idle Stroke mm/S 76 80 120 100 100 100 140 80 120 120 150 150 150
Work mm/S 15 10 10-15 6-12 6-12 4-10 4-10 4-10 5-12 4-12 5-12 4-10 5-12
Back Stroke mm/S 70 50 80 65 65 80 80 70 90 90 150 150 120
Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 65 80 50 40 -
Back mm/S 160 160 135 135 135 160 160 220 200 170 80 120 -
Bolster Surface L.R. mm 520 690 1000 1260 2000 1400 2200 1600 1500 1500 2500 2000 2800
F.B. mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1800 2000 2400
Overall Dimension L.R. mm 4060 5000 5145 5100 4900 8300 8000 3650
F.B. mm 3525 3525 4600 4200 3400 3000 3000 5900
Above Ground mm 2592 3090 3950 4390 4680 5700 5700 6000 7100 7500 5925 7660 7530
Power of Motor KW 7.5 7.5 22 22 22 44 46 60 74 68 91..6 183 156
Weight Kg 3000 3500 10500 15500 28000 29000 42000 42000 51000 54000 142000 148000


Seamless Steel Reducer And Cap Cold Forming Hydraulic Press Machine is suitable for the pressing, drawing, edging, bending, adjusting, cold installing, cold and hot forging and etc for metal and non-metal materials.
