Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Specifications
Brand Name :
Heiyan
Model Number :
2-8 inch
Certification :
ISO,CE,SGS,BV
Place of Origin :
Cangzhou,Hebei,China
MOQ :
1 set
Price :
Negotiable and Competitive
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set per month
Delivery Time :
10-30 days
Packaging Details :
Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould Pack by Pallets and wooden case
Material According to Customer Needs :
Cast steel , 2520 ,2014, 304,45# steel ,40# steel,35# steel
Making Method :
High pressure casting ,forging
Process :
Heat treatment
Product Name :
Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Color :
Customization
Type :
Pipe Fittings Mould Die casting
Surface :
Sandblasted
Core processing :
CNC finishing
Sand Casting Type :
Chemically Hardened Sand
Special Casting types: metal Casting :
Metal Casting
Description

​Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould

Advantage of Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould are as follows:


*High hardness and abrasion resistance surpasses the die steel, and does not strain the surface of the machined part.
*Compared with steel molds, it has good thermal conductivity and does not stick to molds, which can ensure uniform mold *temperature distribution during work, will not cause mold cracks due to local high temperature, and will not cause cold sweat, *exfoliation, and wrinkles in stretched products. phenomenon.
*Economic and practical, long life of core rod material.
*The core rod material processing technology is simple. Compared with steel molds, no direct heat treatment is required for direct polishing. Therefore, the heat treatment cost is reduced, the mold processing time is shortened, and the number of stretching times can be reduced and the cost of the mold can be reduced.

The main products include Φ108-Φ1420 thermal expansion steel pipe core rod, Φ18-Φ1219 push elbow core rod, Φ219-Φ2020 steel butt welding elbow mold, Φ18-Φ914 elbow mold (elbow core rod), Φ219-Φ1219 Pressure tee mold, Φ25-Φ1219 reducer pipe mold, Φ159-Φ630 cold push stainless steel mold. The main raw materials for production are stainless steel scrap, carbon steel scrap, non-ferrous metals and other auxiliary materials.

Parts Specifications of Our Pipe Expanding and Pipe Fitiings Mould
Material 2520 ,2014, 304,45# steel ,40# steel,47# steel
Size 27mm ,33mm ,42mm ,48mm ,60mm,73mm,89mm ,102mm ,114mm,141mm ,168mm,219mm,273mm,324mm,356mm ,406mm ,457mm ,508mm ,559mm ,610mm ,660mm ,711mm ,762mm,813mm ,864mm ,914mm ,926mm ,1016mm ,1067mm ,1118mm ,1168mm ,1219mm
Pipe Fitiings Mould Type Elbow Mould Die ,Tee Mould Die ,Cap Mould Die, Reducer Mould Die ,Pipe expanding Mould Die

Product Description

We Supply Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould and all kinds of corresponding molds and dies for all our Pipe fittings Machine. The mandrel and corresponding induction coil for elbow forming machine. The mandrel is mainly engineered from 18-8, 2520, K18, stainless steel and alloy steel. It allows for production of pipe elbows with diameter between 21 and 1,620mm, curvature radius of 1D-3D, and wall thickness of 5-80 mm.

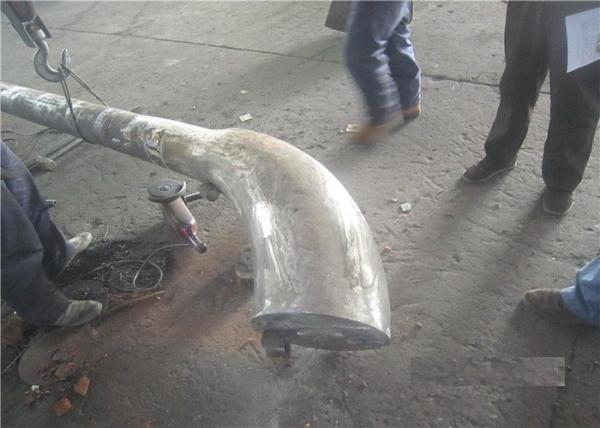

The mandrel for Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould comes with an ox horn shape, and is necessary during the hot forming process. Due to the special shape design, it enables diameter expanding while creating the bending.

And the mandrel and Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould material used in our factory has the characteristics of wear resistance, bending resistance and strong impact resistance, and the surface is bright and clean, suitable for the extrusion of copper, iron, aluminum, zinc, stainless steel and other metals.

Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow MouldMoulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow MouldMoulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould

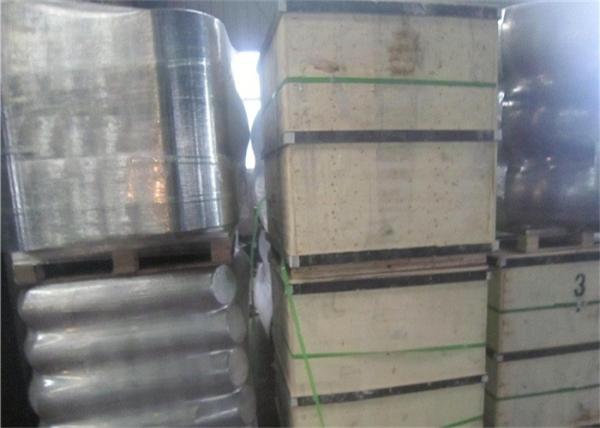

The Packing of Moulds Dies Use to Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould:
Moulds Dies Use To Produce Pipe Fitting Mould Die Caps Reducer Elbow Mould
Our Pipe fitting Mould Die are use for part our pipe fitting manufacturer machines below:

Hot Induction Elbow Machine
Hot Induction Bending Machine
Pipe Expanding Machine
Cold Forming Tee Machine

Cold Forming Elbow Machine

Hydraulic Press Machine
Pipe Bevel Machine
Band Saw Cutting Machine

Sand Blasting Machine
Medium Frequency Power Source
And also Pipe Fittings and all Dies and Mandrels
