Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface
Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface
Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface
Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface
Specifications
Brand Name :
Heiyan
Model Number :
2-8 inch
Certification :
ISO,CE,SGS,BV
Place of Origin :
Cangzhou,Hebei,China
MOQ :
1 set
Price :
Negotiable and Competitive
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set per month
Delivery Time :
10-30 days
Packaging Details :
Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine Pack by Pallets and wooden case
Making Method :
High pressure casting ,forging
Type :
Pipe Fittings Mould Die casting
Product Name :
Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine
Material According to Customer Needs :
Cast steel , 2520 ,2014, 304,45# steel ,40# steel,35# steel
Process :
Heat treatment
Color :
Customization
Surface :
Sandblasted
Tolerance :
0.001
Model :
All Pipe Fitting Mould models
Size :
1/4 inch -48 inches
Description

​Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine

The main products include Φ108-Φ1420 thermal expansion steel pipe core rod, Φ18-Φ1219 push elbow core rod, Φ219-Φ2020 steel butt welding elbow mold, Φ18-Φ914 elbow mold (elbow core rod), Φ219-Φ1219 Pressure tee mold, Φ25-Φ1219 reducer pipe mold, Φ159-Φ630 cold push stainless steel mold. The main raw materials for production are stainless steel scrap, carbon steel scrap, non-ferrous metals and other auxiliary materials.

Parts Specifications of Our Pipe Expanding and Pipe Fitiings Mould
Material 2520 ,2014, 304,45# steel ,40# steel,47# steel
Size 27mm ,33mm ,42mm ,48mm ,60mm,73mm,89mm ,102mm ,114mm,141mm ,168mm,219mm,273mm,324mm,356mm ,406mm ,457mm ,508mm ,559mm ,610mm ,660mm ,711mm ,762mm,813mm ,864mm ,914mm ,926mm ,1016mm ,1067mm ,1118mm ,1168mm ,1219mm
Pipe Fitiings Mould Type Elbow Mould Die ,Tee Mould Die ,Cap Mould Die, Reducer Mould Die ,Pipe expanding Mould Die

Product Description

We Supply Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine and all kinds of corresponding molds and dies for all our Pipe fittings Machine. The mandrel and corresponding induction coil for elbow forming machine. The mandrel is mainly engineered from 18-8, 2520, K18, stainless steel and alloy steel. It allows for production of pipe elbows with diameter between 21 and 1,620mm, curvature radius of 1D-3D, and wall thickness of 5-80 mm.

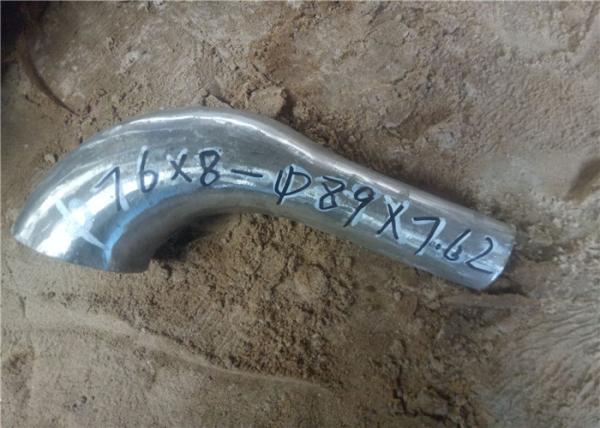

The mandrel for Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine comes with an ox horn shape, and is necessary during the hot forming process. Due to the special shape design, it enables diameter expanding while creating the bending.

And the mandrel and Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine material used in our factory has the characteristics of wear resistance, bending resistance and strong impact resistance, and the surface is bright and clean, suitable for the extrusion of copper, iron, aluminum, zinc, stainless steel and other metals.

Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted SurfaceElbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface

Advantage of Elbow Pipe Fitting Mould Die Mandre With Connection Poles Of Hot Elbow Machine:
The mandrel is designed to withstand considerable thrust when working,
Good temperature and abrasion resistance;
Geometric design and manufacturing with high accuracy,
The quality of the produced steel pipes is well received and trusted by customers!

Elbow Pipe Fitting Mould Die Mandrel Die Casting Type Sandblasted Surface
