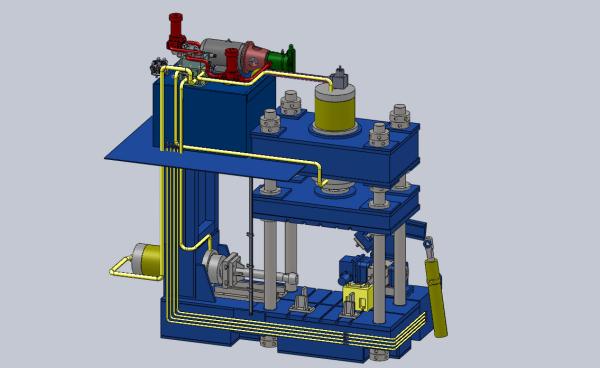

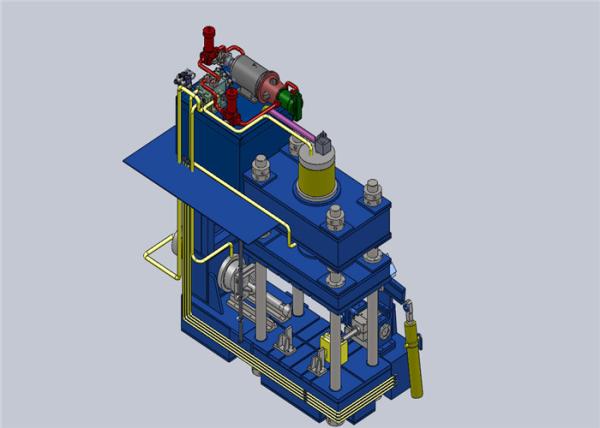

Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Bridge Construction Elbow Cold Forming Machine 25MPa Work Pressure HYLW
Specifications
Brand Name :
heiyan
Model Number :
HYLW
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
7-15 set per month
Delivery Time :
15-25 days
Packaging Details :
wooden packing
Machine Type :
cold push elbow machine
After-sales Service Provided :
Field maintenance and repair service
Wall thickness :
3~30mm
Mould clamping force (KN) :
1000-23000
Main thrust (KN) :
630-12000
Work pressure (MPa) :
25
Motor power (KW) :
11-110
Radius :
1D,1.5D
Degree :
30°，45°，90°
Bending material :
carbon steel,alloy steel,satinless steel
Description

Bridge construction long bends elbow cold bent machine from China

1. Product Presentation

Use method of cold push pipe bender:
1. Usage:
(1) refer to the operating instructions of the electric oil pump.
(2) first screw the working oil cylinder into the internal thread of the square block, so that the wheel mounted on the bracket at the rear end of the oil cylinder is downward.
(3), choose according to bend the pipe by the outer diameter of the die set in column fortress, two roller groove which corresponds to die, and then in the corresponding size of the plate hole, then the cover plate, the curved pipe inserted into the slot, then quick joint activities of high pressure oil pipe end part of the back and set on the joint of working cylinder, electric oil pump on the oil drain screw tightening, can bend.After bending the pipe, loosen the oil drain screw and the plunger will reset automatically.
2. Precautions:
(1) refer to the operating instructions of the electric oil pump.
(2) do not unload the quick connection when there is load.
(3) the machine and tools is oil as the medium, must do a good job of oil and the machine and maintenance work, so as to avoid blockage or oil leakage, affect the use effect.

2. Product Parameter

Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Rated working pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000

We are specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Main Features
1. We can make and design all kinds of roll forming machine according to customers requests.
2. This is a very perfect and durable equipment. We have more than 20 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customersa?? requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
