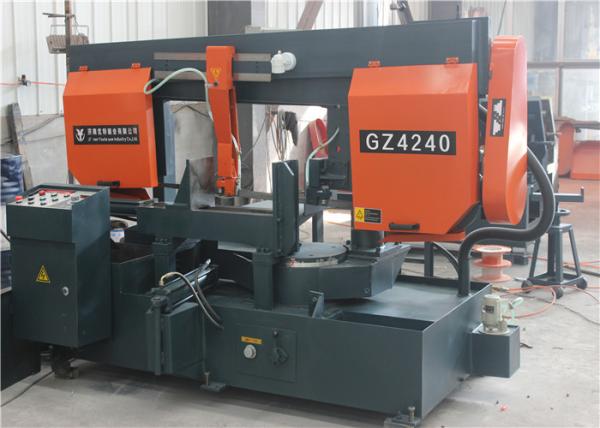

Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Pipe Cutting Metal Band Saw Machine 2.2KW Hydraulic Generator Power CE
Specifications
Brand Name :
HEIYAN
Model Number :
HYBSM200215
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
China Automatic Double Column Horizontal Metal Bandsaw Machine ON PALLET OR WOODEN CASE
Saw belt size(mm) :
6800*41*1.3
Hydraulic generator power(kw) :
2.2
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Packing dimensions(mm) L*M*H :
3200*1400*1850
Description

Semi-automatic bandsaw Pipe Cutting metal Band Sawing machine

1. Those who have no experience in operating the machine tool are not allowed to operate the machine tool.
2. Start the machine and listen to the sound. Tighten all screws.
3. It is absolutely not allowed to cut the saw blade violently / quickly / suddenly. The cutting should be very slow, or the operator will compensate for the damage of the saw blade!!!!

4. Turn off the power before commissioning. The replacement of saw blade must be carried out by experienced personnel, otherwise the damage of saw blade shall be compensated by the operator!!!!

5. Stop the machine when removing chips and placing workpieces. Cover the cover when the sawing machine is running
6. According to the size, shape and hardness of the workpiece, adjust the speed, feed and processing range appropriately.

7. If the saw blade is not used, it shall be loosened to extend the service life of the saw blade.

8. If it is not needed for half a day, the power shall be cut off immediately to protect the motor and extend its service life. A kind of
9. Add proper amount of coolant, do not block the overflow hole, otherwise the water pump will burn out, and make compensation according to the price!!! Awesome

10. when using the new saw blade, the running force and feed rate should be run at low speed.

Type GZ 4260
Cut capcity W*H (mm) round 600
square 600*600
Bundle cutting W*H (mm) /
/
Saw belt size(mm) 6800*41*1.3
belt line speed(m/min) 40/60/80 (frequency control available)
Main generator power(kw) 5.5
Hydraulic generator power(kw) 2.2
Cooling generator power (kw) 0.12
Working clamp style Hydraulic
Saw belt tighten style Hand
Main transmit structure Turbine
Loading style Extra roller
Packing dimensions(mm) L*M*H 3200*1400*1850
Weights of machine (kgs) 3760
