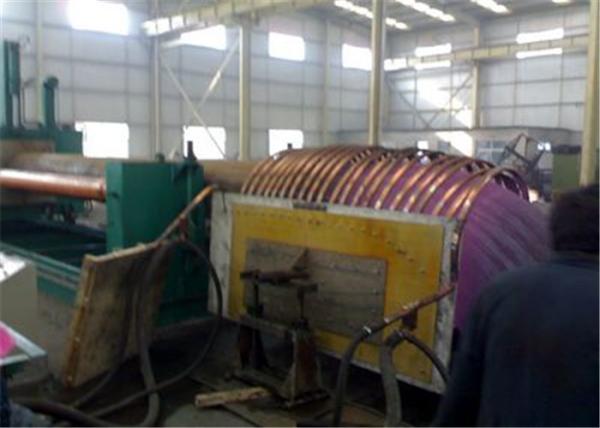

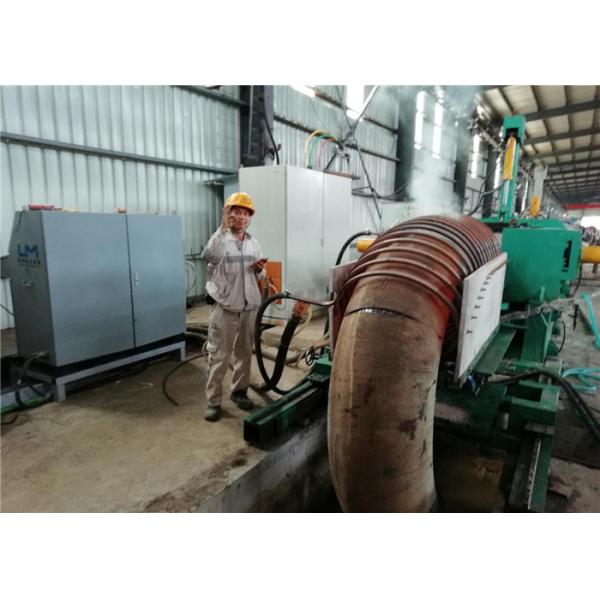

Oil And Gas Cs Steel Pipe 30mm 1.5D Elbow Bending Machine
Oil And Gas Cs Steel Pipe 30mm 1.5D Elbow Bending Machine
Oil And Gas Cs Steel Pipe 30mm 1.5D Elbow Bending Machine
Oil And Gas Cs Steel Pipe 30mm 1.5D Elbow Bending Machine
Specifications
Brand Name :
heiyan
Model Number :
HYLW
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
7-15 set per month
Delivery Time :
15-25 days
Packaging Details :
wooden packing
Machine Type :
hot induction elbow machine
After-sales Service Provided :
Field maintenance and repair service
Wall thickness :
3~30mm
Mould clamping force (KN) :
1000-23000
Main thrust (KN) :
630-12000
Work pressure (MPa) :
25
Motor power (KW) :
11-110
Radius :
1D,1.5D
Degree :
30°，45°，90°
Bending material :
carbon steel
Description

The Production Of Oil And Gas Steelpipe With Elbow Manufacturing Machine


1. Elbow technical parameters:(raw pipe material:seamless steel pipe, ERW pipe and spiral welded pipe.

1) Elbow range:OD:φ21mm~φ1420mm;wall thickness:3mm~120mm;

2) Angle:45°,90°,180° and random angle user demands

3) Elbow bending radius range:1D~2.5D

4) It can push kinds of bend pipes with different radius as required, also called unequal diameter bend.

2. Structure:equipment base and guide rail, main oil cylinder and support plate, active push plate, front support plate, loading mechanism, medium frequency coil adjustment mechanism ( medium frequency heating coil, elbow die, mould pull rod), medium frequency power supply heating mechanism, electric control system, hydraulic control system, operation desk , water cooling circulating system.

3. Auxiliary equipments: hydraulic press machine (for elbow shape correct use),pipe cutting machine (we have auto pipe cutting machine ) ,elbow beveling machine (have manual also auto beveling machine ),shot blasting machine . marking machine .

4. We also can offer the elbow machine with auto feeding system ,can save operator ,speed more fast .

1.Product Paramete

Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Ratedworking pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000
