7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine
7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine
7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine
7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine
Specifications
Brand Name :
HEI YAN
Model Number :
GZ-4280
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2 sets per month
Delivery Time :
30 working days
Packaging Details :
Metal Cutting Horizontal Electric Control Band Saw Machine ON PALLET OR WOODEN CASE
Cut capacity :
W*H (mm) round 800 square 800*800
Bundle cutting :
W*H (mm) Max./ Min./
Saw belt size(mm) :
8800*67*1.6
Selt line speed(m/min) :
40/60/80
Main generator power(kw) :
7.5
Hydraulic generator power(kw) :
2.2
Cooling generator power (kw :
0.12
Working clamp style :
Hydraulic
Saw belt tighten style :
Hydraulic
Main trasmit structure :
Turbine
Packing dimensions(mm) :
L*M*H 4200*2100*2650
Weights of machine (kgs) :
11800kgs
Description

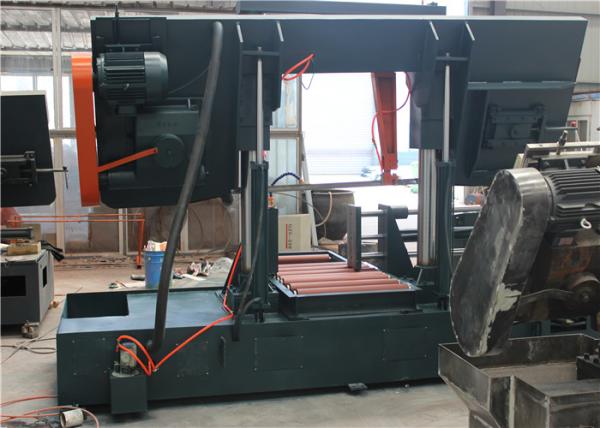

Double-Column Gantry Fully Automatic Numerical Control Band Saw Machine

GZ4280 linear guide rail with sawing machine

1. The saw cutting feed is controlled by hydraulic pressure, and stepless speed regulation can be achieved by regulating the speed regulating valve.

2. Equipped with high-power worm gear reducer, strong power, high reliability, can meet the long-term operation.

3. The lifting guide adopts rolling linear guide pair, with high motion precision.

4. The workpiece is clamped by hydraulic pressure, and double clamping is optional

5. The feeding mode adopts the roller drop path type.

Optional saw belt hydraulic tensioning, cutting speed frequency conversion control curve

Type GZ 4280
Cut capacity W*H (mm) round 800
square 800*800
Bundle cutting W*H (mm) /
/
Saw belt size(mm) 8800*67*1.6
belt line speed(m/min) 40/60/80
Main generator power(kw) 7.5
Hydraulic generator power(kw) 2.2
Cooling generator power (kw) 0.12
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Packing dimensions(mm) L*M*H 4200*2100*2650
Weights of machine (kgs) 11800

7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine7.5kw Cnc Butcher 40m/Min Metal Cutting Band Saw Machine

After sales service:

1.After the prepayment, the seller provide basic layout, equipment hydraulic principle diagram, electrical diagram, a set of instructions. For installation, the buyer is responsible for the cost of transport and living fees, and pay the technical personnel installing and training expense per people per day 100 USD.

2.The whole equipment warranty 12 months. Hydraulic components and electrical components warranty 3 months. (for non-human factors)
