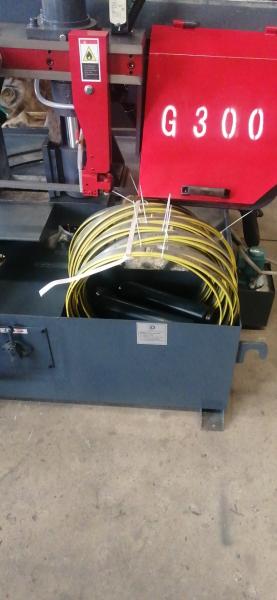

Two Column Angle Cut 45 Degree Cnc Bandsaw Cutting Machine Semi Auto
Two Column Angle Cut 45 Degree Cnc Bandsaw Cutting Machine Semi Auto
Two Column Angle Cut 45 Degree Cnc Bandsaw Cutting Machine Semi Auto
Two Column Angle Cut 45 Degree Cnc Bandsaw Cutting Machine Semi Auto
Specifications
Brand Name :
HEIYAN
Model Number :
G300
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
belt line speed(m/min) :
40/60/80
Main generator power(kw) :
3
Cooling generator power (kw) :
0.09
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Name :
Multi Functional Horizontal 45 ° CNC H Beam Tube Cutting Machine
Description

Semi Automatic Angle Cut 45 Degree Band Saw Machine

1. Double column structure, vertical lifting, high stability;

2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;

3. Cutting speed hydraulic control, stepless speed regulation;

4. The workpiece is clamped to hydraulic clamping, which is easy to operate;

5. Customizable three-way hydraulic clamping device.

Type G300
Cut capcity W*H (mm) 90° round 300
square 300*400
45° round 280
square 280*280
60° round 280
square 180*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450

Our Service

Pre-Sale Service

1. Inquiry and consulting support. (pls tell your material size, longth etc...)
2. View our Factory.

After-Sale Service
1. One year warranty is provided.
2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
