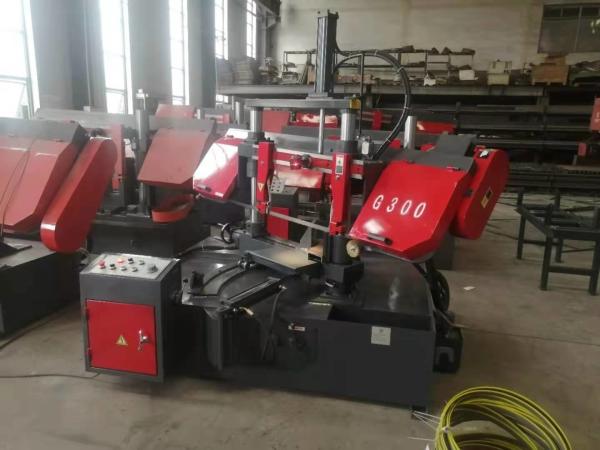

Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Cut 45 Degree 60 Degree Swivel Sawing Metal Band Saw Machine
Specifications
Brand Name :
HEIYAN
Model Number :
G300
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
belt line speed(m/min) :
40/60/80
Main generator power(kw) :
3
Cooling generator power (kw) :
0.09
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Name :
Cut 45 Degree 60 Degree Metal Swivel Sawing Band Saw Machine
Description

Cut 45 Degree 60 Degree Metal Swivel Sawing Band Saw Machine

1. Double column structure, vertical lifting, high stability;

2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;

3. Cutting speed hydraulic control, stepless speed regulation;

4. The workpiece is clamped to hydraulic clamping, which is easy to operate;

5. Customizable three-way hydraulic clamping device.

Type G300
Cut capcity W*H (mm) 90° round 300
square 300*400
45° round 280
square 280*280
60° round 280
square 180*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450

Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
