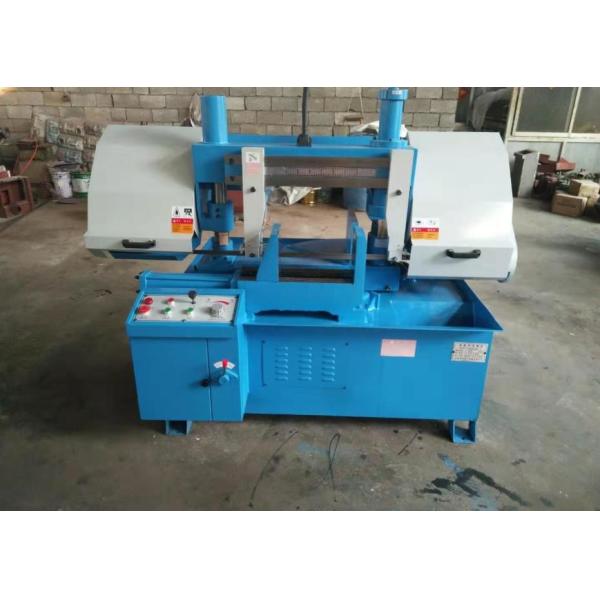

Hydraulic Cnc 80m/Min Cutting Band Saw Machine Full Automatic
Hydraulic Cnc 80m/Min Cutting Band Saw Machine Full Automatic
Specifications
Brand Name :
HEIYAN
Model Number :
SH260
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
belt line speed(m/min) :
40/60/80
Main generator power(kw) :
3
Cooling generator power (kw) :
0.09
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Name :
CNC Cutting Machine Hydraulic Full Automatic Band Saw Machine
Description

CNC Cutting Machine Hydraulic Full Automatic Band Saw Machine

Features:
1. Button type control panel, sawing mode change flexible, manual and automatic combination;
2. PLC controller, complete automatic sawing process, feeding length 0-500mm;
3. Double upright column structure, vertical lift, high stability;
4. Cutting speed hydraulic control, stepless regulation speed,
5. Stable performance, high efficiency, suitable for bulk material sawing.
Type SH260
Cut capcity W*H (mm) round 260
square 260*260
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450

Application
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Suitable Material:Carbon steel, stainless steel, aluminum, copper, brass, wood, plastic
# Round bar, Round pipe
# Square bar, Square pipe
# Angle iron
# H shape iron
# Profile steel
Attentions
# the operatior should process the machine as the instruction safe rules.
# And keep attention for the saw blade, to prolong its using lifetime.
# After period of time, the hydraulic should be exchanged and keep its quality better.
