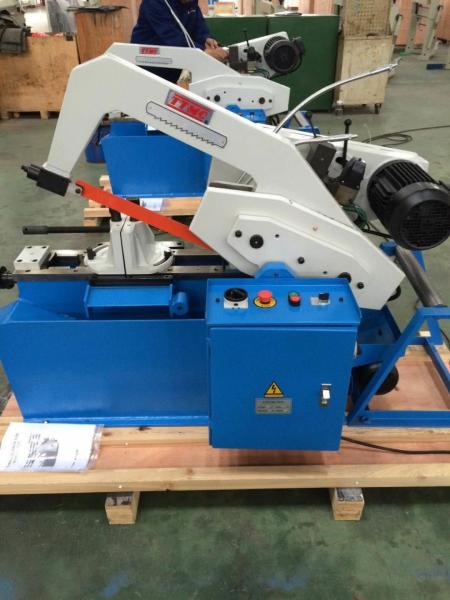

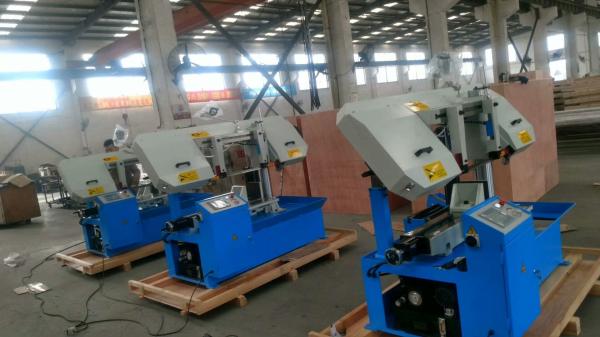

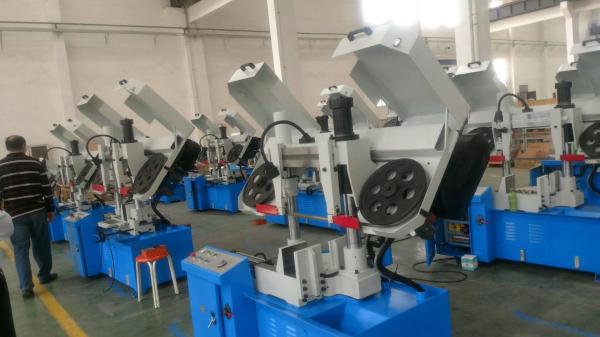

45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
Specifications
Brand Name :
HEIYAN
Model Number :
G300
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50SETS PER MONTH
Delivery Time :
7-15DAYS
Packaging Details :
Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
belt line speed(m/min) :
40/60/80
Main generator power(kw) :
3
Cooling generator power (kw) :
0.09
Working clamp style :
Hydraulic
Saw belt tighten style :
Hand
Loading style :
Extra roller
Name :
Multi Functional Horizontal 45 ° CNC H Beam Tube Cutting Machine
Description

Multi Functional Horizontal 45 ° CNC H Beam Tube Cutting Machine

1. Double column structure, vertical lifting, high stability;

2. According to the user's request, the rotation angle can be set by the user. When the workpiece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;

3. Cutting speed hydraulic control, stepless speed regulation;

4. The workpiece is clamped to hydraulic clamping, which is easy to operate;

5. Customizable three-way hydraulic clamping device.

Type G300
Cut capcity W*H (mm) 90° round 300
square 300*400
45° round 280
square 280*280
60° round 280
square 180*300
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 1100
Packing dimensions(mm) L*M*H 1750*2200*1450

1, when the sawing is completed, it will automatically stop and raise the saw frame for high efficiency operation.
2, the saw belt can adjust the load to ensure that the band saw does not fatigue and the feed rate is steplessly changed, and can be adjusted to the best cutting effect.
3, when the sawing machine can cut the cutting speed according to the material structure properties, the saw blade can effectively improve the service life of the saw blade.
4, hydraulic tensioning saw blade (easy operation and improve work efficiency)
5, saw blade break automatically stop (safe)
45 Degree Cnc H Beam Tube Horizontal Metal Cutting Bandsaw Machine
