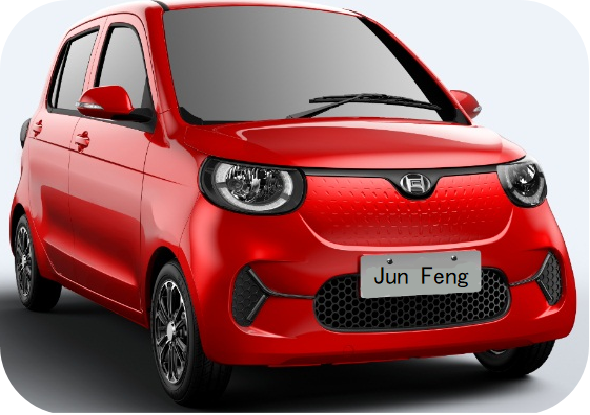

JF-LX1 (LHD,RHD)
Price:Contact Us cc_junfeng@163.com
| JF-LX1(RHD configuration table MINCAR Table | ||||
| JF LX1(RHD) | ||||
| JF LX1R-00C | JF LX1R-00E | |||
| General Comments | Regular car high speed design with enhanced body structure and passed all crash tests; More intelligent configurations for the version of China market. Longer wheelbase generate larger inside sapce; Li-ion battery only. | |||
| information | http://www.jfqcgs.com/en/carlist.php?way=14 | |||
| Vehicle Parameter | Dimensions(mm) | 3380×1499×1610 | 2920×1499×1610 | |
| Wheel Base(mm) | 2440 | 1980 | ||
| Track Width(mm) | 1310/1310 | 1310/1310 | ||
| Tire Type | 155/65 R13 | 155/65 R13 | ||
| Number of Seats | 4 | 2 | ||
| Number of Doors | 5 | 3 | ||
| Curb weight(kg) | 795 | 690 | ||
| Performance Index | Minimum Ground Clearance(mm) | 150 | 150 | |
| Minimum Turning Diameter | 9.8 | 8.3 | ||
| Maximum Speed (km/h) | 100 | 100 | ||
| NEDC Range(km) | 200 | 165 | ||
| Brake regeneration | ● | ● | ||
| Maximum Climbable Gradient | 25% | 25% | ||
| Drive System | Motor Type | Permanent Magnet Synchronous Motor | ||
| Maximum Output(kW) | 34 | 30 | ||
| Maximum Torque(N·m) | 102 | 90 | ||
| Drive System | Battery type | Lithium Battery | ||
| Voltage Platform(V) | 115 | 115 | ||
| Electricity (kW·h) | 16.5 | 11.8 | ||
| System Structure | Type of Drive | Rear-engine Rear-drive | ||
| Suspension system(Front) | Mcpherson Independent Suspension | |||
| Suspension system(Rear) | Five Connecting rods Non Independent Suspension | Three Connecting rods Non Independent Suspension | ||
| Type of Parking Brake | Hand Brake | |||
Scooter, suitable for office workers.
Nissan technology and quality control, Nissan line assembly;
<
Main Driving Airbag
Co-pilot Airbag
Door warning light off
Reversing Image
Reversing Radar
Low Speed Collision Warning
Ramp Assist
Three-point Belt (Front Seat)
Three-point Belt (Rear Seat)
Child Seat Fixing Device
Anti-lock Brake System
Electronic Brake force Distribution
Tire Pressure Monitoring System
Telematics BOX
