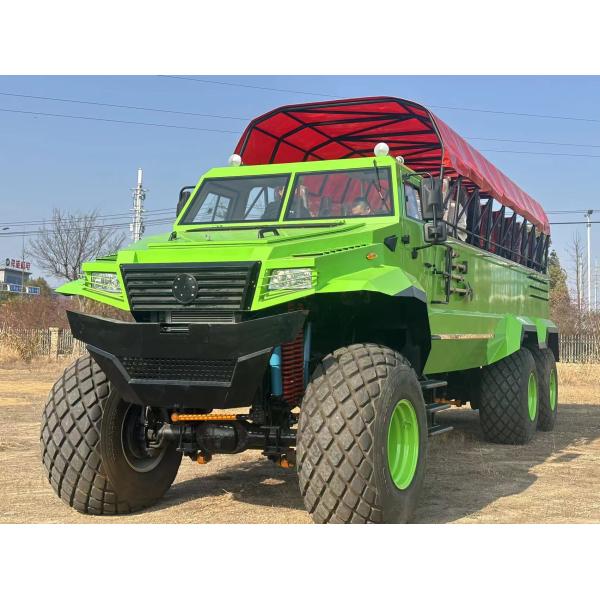

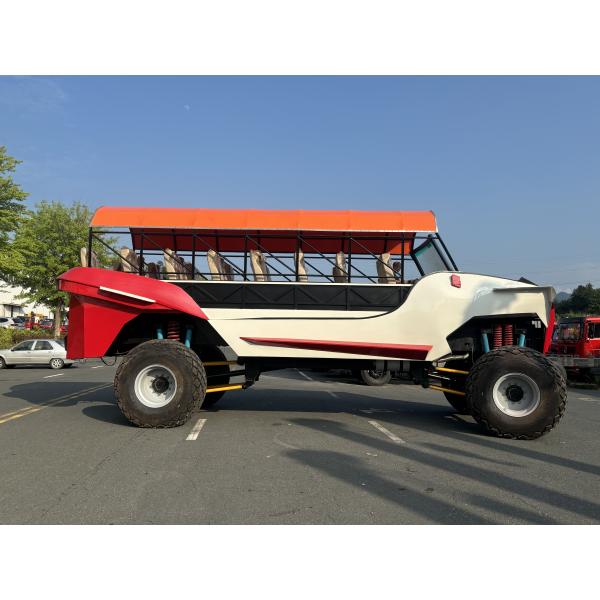

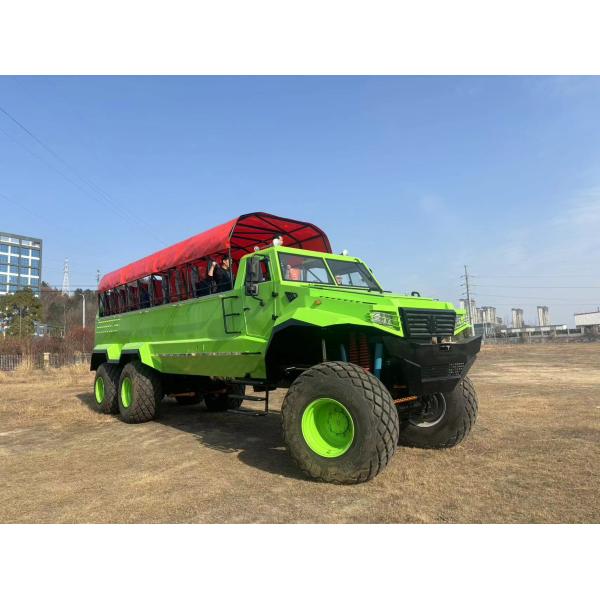

The King of the Desert-4x4 Desert Tourist Vehicle
The King of the Desert-4x4 Desert Tourist Vehicle
The King of the Desert-4x4 Desert Tourist Vehicle
The King of the Desert-4x4 Desert Tourist Vehicle
Specifications
Brand Name :
Dongfeng
Model Number :
4x4 Desert Tourist Vehicle
Place of Origin :
China
MOQ :
2 unit
Price :
FCA (email reply based on different models)
Payment Terms :
T/T
Supply Ability :
less than1000pcs/month (Orders must be made 30 days in advance if more than 1000)
Delivery Time :
30-45 days
Description

Vehicle parameters
Overall length(mm)		 9050

Overall width(mm)		 3250

Overall Height(mm)		 4150

Wheelbase(mm)		 6000

Front/rear suspension(mm)		 1050/1800

Approach/departure angle(º)		 39/36

Ground clearance
(front axle/rear axle)(mm)		 450/450

Operating speed
(unloaded/fully loaded)(km/h)		 30/30

Track width(front/rear)(mm)		 2530/2360

Minimum turning radius (m)		 10

Maximum slope		 10%

Engine parameters
Engine model		 L375 30 MechanicL375 30,
al pump diesel engine

fuel		 diesel
最大功率(kw/r/min) 276KW
最大扭矩(N.m/r/min) 1480N/m 1400r/min
Displacement(L) 8.9

Emission standard		 National III

Drive Type		 4x4

Chassis parameters and configuration		 Transmission Fast 9JSD150T mechanical manual transmission

Frame
Stamped riveted frame structure, front outer width 860mm, rear outer width 800mm, High strength beam specific steel plate.

Maximum cross-sectional size of longitudinal beam
(Abdominal height x Wing width x Plate thickness) 280mm x 80mm x (8+6) mm
Front Axle Dajiang 7.5 ton integrated steering drive axle, with wheel reducer, automatic adjustment arm, and drum brake; Speed ratio: 5.921.

Middle/Rear Axle		 Dajiang 7.5 ton integrated drive axle, with wheel reducer, automatic adjustment arm, and drum brake; Speed ratio: 5.921.
Suspension Spiral spring suspension, two spiral springs, two shock absorbers, and four thrust rods
Suspension Spiral spring suspension, two spiral springs, two shock absorbers, and eight thrust rods
Steering Detached trapezoidal transformation mechanism with hydraulic assistance and a diameter of 480mm steering wheel
Braking Dual circuit pneumatic braking system, air brake, rear axle spring energy storage parking brake.
Cooling system
Aluminum water tank with air and intercooler, with a diameter of 640mm fan
Fuel supply system
The main fuel tank is 260L, with a maximum driving range of 500Km.
Transfer case HCF250 high and low speed, full-time drive, with axle differential lock, can be forcibly locked
Wheels and tires Four 28L-26 vacuum tires
Electrical system
System power supply 24V, combination instrument
electric generator Integrated, 24V.165A
Vehicle body Integrated welding type, rated passenger capacity of 23 people (including driver), safety belt (JD-B021)
Vehicle design Dongfeng Motor Company
OEM customization Wuhan Junfeng Automobile Co., Ltd.
