1-1/4 Zinc Die Cast 90 Degree Squeeze Connector Cable Connector
1-1/4 Zinc Die Cast 90 Degree Squeeze Connector Cable Connector
1-1/4 Zinc Die Cast 90 Degree Squeeze Connector Cable Connector
1-1/4 Zinc Die Cast 90 Degree Squeeze Connector Cable Connector
Specifications
Brand Name :
ELECMAN
Model Number :
SQN
Certification :
UL
Place of Origin :
China
MOQ :
100 Pcs
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10000 Pcs/Day
Delivery Time :
30 Days
Packaging Details :
Packed in Carton Boxes
Material :
Zinc
Surface Finish :
Natural
Type :
90 Degree Type
Size :
1/2" to 4"
Connection :
Male
Structure :
Universal
Description

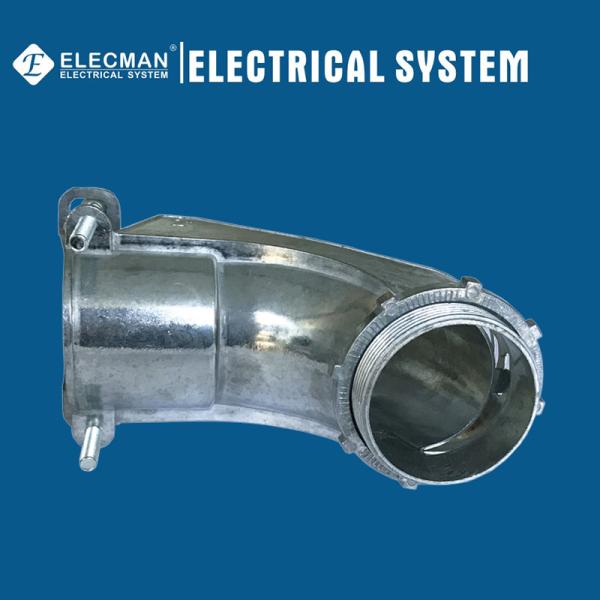

ELECMAN ® 1-1/4" Zinc Die Cast 90 Degree Squeeze Connector Cable Connector

Applications

ELECMAN® 90 degree squeeze connector is used to terminate FMC or various kinds of cables to a box. The squeeze type design enables easy installation. We also produce straight squeeze connector. Available for conduit in sizes from 1/2" to 4"; UL listed.

Features

  • Assembled with die cast locknut and tri-combo screws.
  • Insulated type are available.
  • Reversible locknuts cuts through protective coating on boxes for ground continuity.
  • Tri drive head is compatible with Phillips, slotted and square screwdrivers.
  • For indoor use only.
  • Zinc alloy body and locknut are high strength and non-corrosive.


1-1/4

Certifications and Compliances

ELECMAN® Zinc squeeze connector 90 degree flexible conduit to box type shall be produced to the following specification:

  • UL Listed
  • File No.: E503810


Specification Data

ELECMAN provides full size zinc squeeze connector 90 degree flexible conduit to box type from 1/2" to 4".

1-1/4

CAT #Trade SizeDIM ADIM BDIM CINNER PACKMASTER PACKWEIGHT/C
SQN0501/2"2.120.64-1.030.40252509.00
SQN0753/4"2.400.76-1.150.401020013.50
SQN1001"2.871.08-1.730.5351009.00
SQN1251-1/4"4.001.34-1.980.65 5010.00
SQN1501-1/2"6.001.65-2.610.75 2511.00
SQN2002"6.001.55-2.550.73 2511.00
SQN2502-1/2"7.182.45-2.980.88 109.00
SQN3003"7.882.93-3.451.03 810.00
SQN4004"10.203.68-4.421.03 510.50


1-1/4

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
