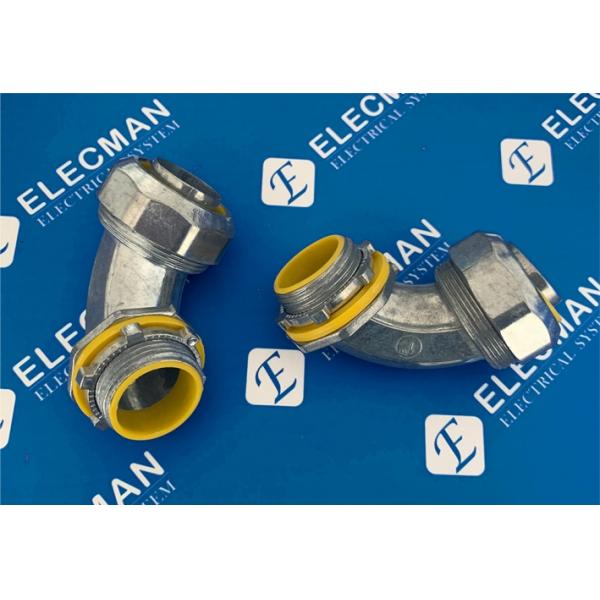

ELECMAN ® Zinc 90 Degree Liquid Tight Connector 1 Inch

Applications

ELECMAN® Zinc 90 degree liquid tight connectors are used on flexible metallic liquid tight conduits and Type B flexible non-metallic liquid tight conduits to positively bond conduits to boxes or enclosures in both wet and damp locations. In addition, when connectors are terminated in threadless openings, the included sealing washers provide liquid tight seals. The heavy duty locknuts included with liquid tight connector ensures the continuity of the grounding. In damp locations, the connectors are also of excellent corrosion protection with zinc electroplated. The trade size varies from 3/8" to 4".

Features

• 90° component type connectors.
• Assembled with a die cast locknut, insulated throat and sealing washer.
• Insulated throat protects against abrasion damage.

• Available in straight and 90 degree configurations.

• Available in insulated and non-insulated versions to meet any customer preference.

Certifications and Compliances

ELECMAN® Zinc 90 degree liquid tight connectors shall be produced to the following specification:

• UL Listed liquid tight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC:

- Class I, Division 2;

- Class II, Divisions 1 & 2; and

- Class III, Divisions 1 & 2;

- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC

• UL Standards 514B, 467
• cUL Standard C22.2 No. 18F
• UL File No. E503810

Specification Data

ELECMAN provides full size zinc die cast 90 degree liquid tight connectors from 1/2" to 4".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
