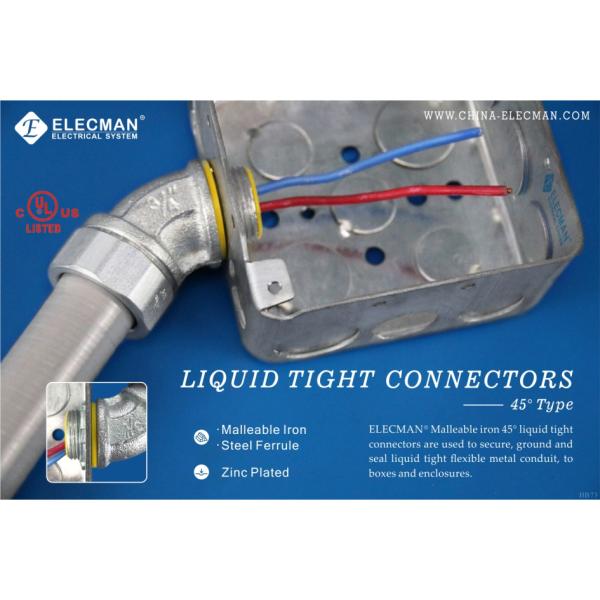

ELECMAN ® Malleable Iron Liquid Tight Connector 45 Degree Flexible Conduit To Box Type

Applications

ELECMAN® Malleable iron liquid tight connectors 45 degree type are designed to slip on to the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid tight seal that decreases the risk of pullouts. Malleable iron liquid tight connectors 45 degree type are used on flexible metallic liquid tight conduits and type B flexible non metallic liquid tight conduits to positively bond conduits to boxes or enclosures in both wet and damp locations.

Features

• Tapered threaded male hub NPT.
• Compact, slim diameter with small turning radius.
• Furnished with an insulated throat with steel locknut and sealing ring.
• Liquidtight, raintight, oiltight for protection and long life in wet, dusty and corrosive environments.
• Suitable for wet locations.
• Reusable, long ferrule prevents pull-out and tight bend conduit pop-out.
• Available in both malleable iron and aluminum construction with the option of a ground lug pre-attached.
• Available in straight, 90 and 45 degree configurations.
• Available in insulated and non-insulated versions to meet any customer preference.

Certifications and Compliances

ELECMAN® Malleable iron liquid tight connector 45 degree type shall be produced to the following specification:

• UL Listed liquid tight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC:

- Class I, Division 2;
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC

• UL Standards 514B, 467
• cUL Standard C22.2 No. 18F
• UL File No. E503810

Specification Data

ELECMAN provides full size malleable liquid tight connectors 45 degree type from 3/8" to 4".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
