Specifications
Brand Name :
east panda
Model Number :
none
Place of Origin :
china
Price :
Negotiable
Packaging Details :
box
Delivery Time :
7-15days
Certification :
CE, FCC, RoHS
MOQ :
100set
Payment Terms :
T/T, Western Union, MoneyGram
Power :
3.5kw/7kw/11kw/22kw
Function :
Fast Charging
RCD :
Type A
Protection :
Over-current, Over-voltage, Short-circuit
Material :
Aluminum Alloy
Frequency :
50Hz/60Hz
Output Current :
8A-40A
Description

Product Description:

Flame Resistance Ensured:
Carrying a UL94 V-0 classification, our product guarantees flame retardancy, emphasizing safety and security.

Enhanced Rear-End Defense:
A reinforced rear-end protection system has been integrated to bolster resilience and safeguard the charger.

Designed for Comfort:
The ergonomic design elevates user experience, promoting ease of use while enhancing the aesthetic appeal.

Aesthetic Appeal:
Meticulously coordinated design colors not only please the eye but also infuse a sense of enjoyment and style into the charging process.

Built to Last with Premium Materials:
A silicone protective layer envelopes the plug, augmenting grip and durability, ensuring it stays securely in place.

Exemplary Protection Measures:
With an IP65 rating in operational state, our product guarantees outstanding protection against outdoor elements like rain, snow, and high temperatures, ensuring reliable functionality.

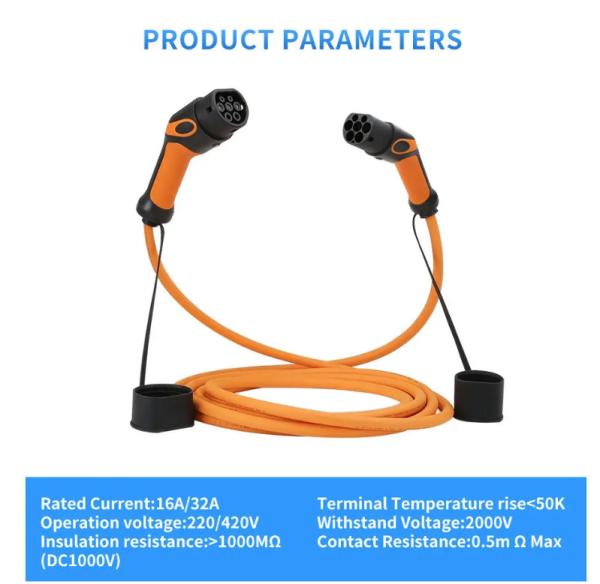

Technical Parameters:

Rated current 16A/32A
Operation Volatge 250V/480V
Insulation resistance more than 500M Ohm(DC500V)
Contact resistance 0.5m Ohm max
Terminal temperature rise less than 50K
Withstand voltage 2000V
Mechanical Properties:
Mechanical life no-load plug in/out more than 10000 times
Coupled insertion force 45N~100N
Impact of external force can afford 1M drop
Environmental Performance
Operating Temperature -30~+50ºC
Applied Materials
Case material thermoplastic, flame retardant grade UL94 V-0
Termminal Copper alloy , silver plating

CAUTION:

1. Don't submerge the EV charging cable in water.

2. Don't step on, fold, or knot the cable.

3. Don't drop the EV charging box place a heavy object on it.

4. Don't place the charging cable near a high-temperature object when charging.

5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.

Packing and Shipping:

Packaging and Shipping Portable Electric Car Chargers

Our Portable Electric Car Chargers will be carefully enclosed in a custom-designed box to guarantee their safety during transportation. Crafted from durable corrugated cardboard, the box will be sealed using reinforced tape, providing an added layer of security to withstand the rigors of shipping.

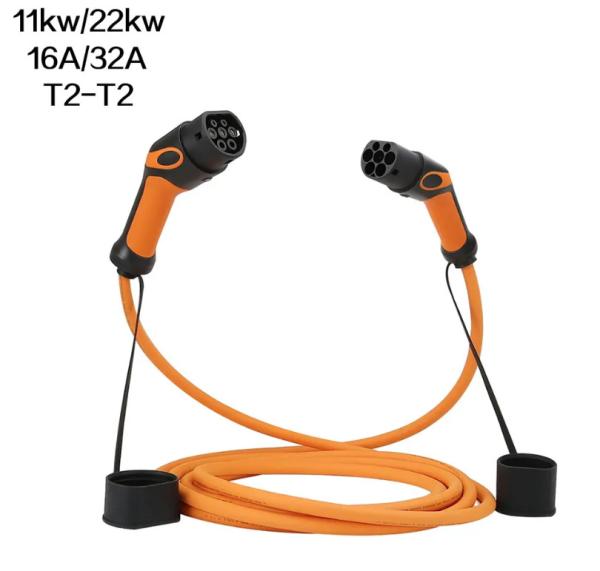

EV Charging Cable European Standard 11kw 22kw 16A 32A Type2 To Type2 Charging Cable

FAQ:

1.Can we require you to do our trademark?
Trademark service is available,and the order quantity should be more than 100pcs.

2.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.

3.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.

4.What is your sample policy?
We can provide a sampleupon request.
Customers need to pay for the shipping cost.

EV Charging Cable European Standard 11kw 22kw 16A 32A Type2 To Type2 Charging Cable

EV Charging Cable European Standard 11kw 22kw 16A 32A Type2 To Type2 Charging Cable
