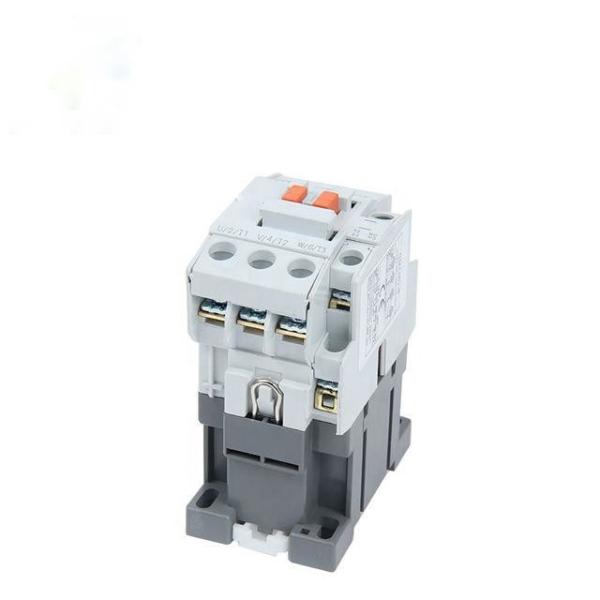

3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V
Specifications
Brand Name :
YOKG
Model Number :
GC-9～22
Certification :
CE,TUV,CB
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100000pcs per Month
Delivery Time :
15days or Depends on ordering QTYS
Packaging Details :
Each unit be packed in one individual inner box
Product Name :
Ac Magnetic Contactor
Application :
AC Motor
Type :
Contactor
Coil Voltage :
220V- 690V
Main Circuit Rating Current :
25A
Condition :
100%NEW
Description

3 Phase AC GC-12 Plastic Din Rail 9-95A 230V 380V Coil Voltage Magnetic Contractor

Feature:

Three pairs of main contact

Electric shock prevention safety cover design

Guide rail or screw to install

Can directly plug with thermal overload relay

A framework of two rated current level

Can install accessory on the top/side

1NO+1NC auxiliary contact for the standard configuration

Main parameters and Technical Performance:

Type GC-9 GC-12 GC-18 GC-22
Rated heating current (A) 25 25 40 40
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NC+1NO
Short-time withstand current(A) 10S 72 96 144 196
IEC-60947 AC1 Load 25 25 40 40
AC3
Load
power		 200～240V 2.5KW 3.5KW 4.5KW 5.5KW
380～440V 4KW 5.5KW 7.5KW 11KW
500～550V 4KW 7.5KW 7.5KW 15KW
690V 4KW 7.5KW 7.5KW 15KW
AC3
Load
current		 200～240V 11A 13A 18A 22A
380～440V 9A 12A 18A 22A
500～550V 7A 12A 13A 18A
690V 5A 9A 9A 32A
UL508 Continuous current 20A 25A 30A 32A
single-phase
machine		 115V 0.5HP 0.5HP 1HP 2HP
230V 1HP 2HP 3HP 3HP
Three-phase
machine		 200V 2HP 3HP 5HP 7.5HP
230V 2HP 3HP 5HP 7.5HP
460V 5HP 7.5HP 10HP 10HP
575V 7.5HP 10HP 15HP 15HP
Operation frequency (times/h) Electrical life 1200
Mechanical life 3600
AC-3 Electrical life (10000/times) 100 100 100 100
Mechanical life (10000/times) 1000 1000 1000 1000


Installation dimension:

3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V

Certificates:

3 Phase AC GC-12 Plastic Coil Voltage Magnetic Contractor Din Rail 9-95A 230V 380V

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us an inquiry. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs; For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products100% self-inspection and testing before packing

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy .

6. What is the standard of package?

Export standard package or special package according to customer
