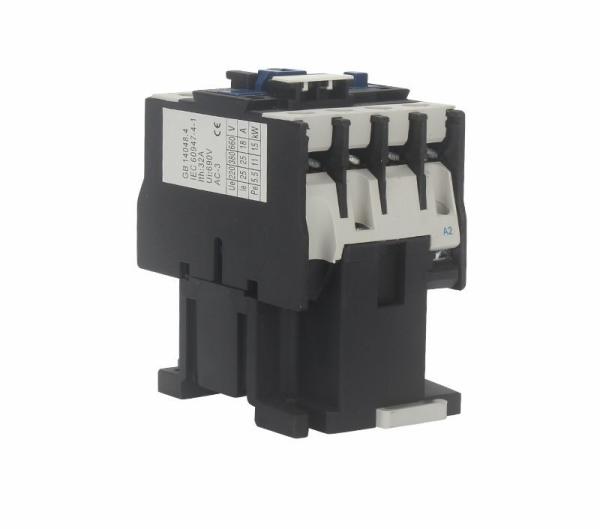

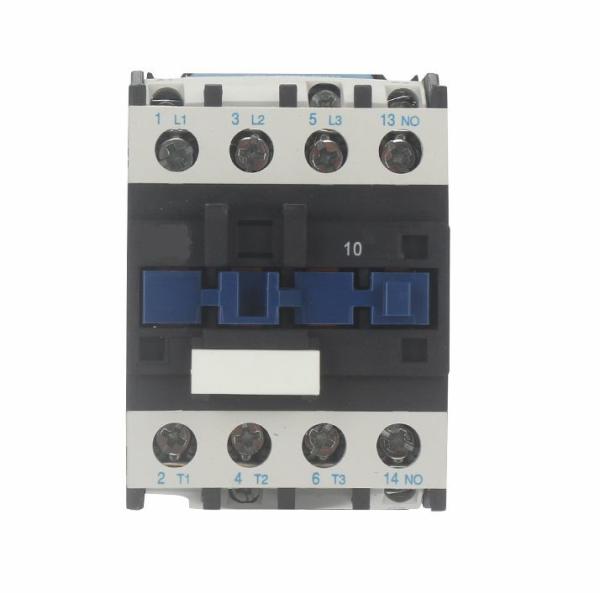

NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
Specifications
Brand Name :
YOKG
Model Number :
SC25
Certification :
CE,TUV,CB
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100000pcs per Month
Delivery Time :
15days or Depends on ordering QTYS
Packaging Details :
Each unit be packed in one individual inner box
Rated heating current :
40A
Rated insulation voltage :
690V
Poles :
3
Auxiliary contact :
NO/NC
Coil :
AC
Protection degree :
IP20
Product :
AC electrical contactor
Electrical life :
1000000
Description

NO Or NC 690 Vac AC Electrical Contactor 50 60HZ Magnetic Ac Contactor

Characteristics:

Installation: Din rail / screw installation

Certification: CE,CB,TUV

Standard: IEC 60947-1, IEC 60947-4-1

Frequency of operation: 300-1200 times/hour

Ambient temperature: -5℃~+40℃

Protection degree: IP20

Installation category: III

Pollution degree: Class 3

Altitude: ≤ 2000m

Main parameters and Technical Performance:

Type SC25
Rated heating current (A) 40
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact NO/NC
Short-time withstand current(A) 10S 200
Rated working current(A) 380V AC-3 25
AC-4 8.5
660V AC-3 18
AC-4 4.4
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW		 220V 5.5
380V 11
660V 15
Operation frequency (times/h) Electrical life AC-3 600
AC-4 300
Mechanical life 3600
Electrical life (10000/times) AC-3 100
AC-4 20
Mechanical life (10000/times) 1000
Equipped fuse type RT16-40
Rated control supply voltage Us(V) 50/60Hz 12~480
Operation range Pull-in (85%~110%)Us +40℃
Releasing (20%~75%)Us -5℃
Ac coil average power(VA) Start 110
Keeping 11
Power efficiency class class 3
Thermal loss(W) 3~4
Actuation time(ms) Close 12~25
Break 5~20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 1.5～10
2 sticks 1.5～6
flexible wire with cold
pressing terminal (㎟)		 1 stick 1～6
2 sticks

1～4
Hard wire (㎟) 1 stick 1.5～6
2 sticks

1.5～6
Fastening screw size M4
Tightening fastening torque (N.m) 1.2
Control loop wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 1～4
2 sticks 1～4
flexible wire with cold
pressing terminal (㎟)		 1 stick 1～4
2 sticks 1～2.5
Hard wire (㎟) 1 stick 1～4
2 sticks 1～4
Fastening screw size M3.5
Tightening fastening torque (N.m) 0.8

Installation dimension:

NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life

A max B max C max a b ∅
57 86 95 40 48 4.5

NO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical LifeNO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical LifeNO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical LifeNO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical LifeNO Or NC 690 Vac AC Electric Contactor 50HZ 60HZ 1000000 Electrical Life
