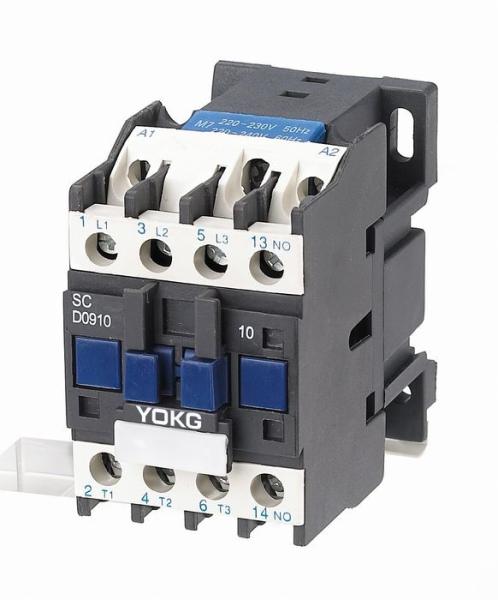

Silver YOKG 20A 3 Pole AC Contactor SC09 - 12 690V Black IP20
Silver YOKG 20A 3 Pole AC Contactor SC09 - 12 690V Black IP20
Specifications
Brand Name :
YOKG
Model Number :
SC09~12
Certification :
CE,TUV,CB
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
100000pcs per Month
Delivery Time :
15days or Depends on ordering QTYS
Packaging Details :
Each unit be packed in one individual inner box
Rated heating current :
20A
Rated insulation voltage :
690V
Poles :
3
Standard :
IEC60947
Auxiliary contact :
NO/NC
Contacts :
Silver
Protection degree :
IP20
Pollution degree :
class 3
Description

YOKG AC Electric Contactor SC09~12 20A 690V 3poles Black Contactor

Application:

SC series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the thermal relay, it becomes the electromagnetic starter for protecting the overload circuits.

This series contactor complies with GB 14048, IEC60947-4-1

Main parameters and Technical Performance:

Type SC09 SC12
Rated heating current (A) 20 20
Rated insulation voltage (V) 690 690
Rated impact withstand voltage (KV) 6 6
Rated making capacity 10le 10le
Rated breaking capacity 8le 8le
Poles 3 3
Auxiliary contact NO/NC NO/NC
Short-time withstand current(A) 10S 72 96
Rated working current(A) 380V AC-3 9 12
AC-4 3.5 5
660V AC-3 6.6 8.9
AC-4 1.5 2
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW		 220V 2.2 3
380V 4 5.5
660V 5.5 7.5
Operation frequency (times/h) Electrical life AC-3 1200 1200
AC-4 300 300
Mechanical life 3600 3600
Electrical life (10000/times) AC-3 100 100
AC-4 20 20
Mechanical life (10000/times) 1000 1000
Equipped fuse type RT16-20 RT16-20
Rated control supply voltage Us(V) 50/60Hz 12~480 12~480
Operation range Pull-in (85%~110%)Us +40℃ (85%~110%)Us +40℃
Releasing (20%~75%)Us -5℃ (20%~75%)Us -5℃
Ac coil average power(VA) Start 70 70
Keeping 8 8
Power efficiency class class 3 class 3
Thermal loss(W) 2~3 2~3
Actuation time(ms) Close 12~25 12~25
Break 5~20 5~20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 1～4 1～4
2 sticks 1～4 1～4
flexible wire with cold
pressing terminal (㎟)		 1 stick 1～4 1～4
2 sticks 1～2.5 1～2.5
Hard wire (㎟) 1 stick 1～4 1～4
2 sticks 1～4 1～4
Fastening screw size M3.5 M3.5
Tightening fastening torque (N.m) 0.8 0.8
Control loop wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 1～4 1～4
2 sticks 1～4 1～4
flexible wire with cold
pressing terminal (㎟)		 1 stick 1～4 1～4
2 sticks 1～2.5 1～2.5
Hard wire (㎟) 1 stick 1～4 1～4
2 sticks 1～4 1～4
Fastening screw size M3.5 M3.5
Tightening fastening torque (N.m) 0.8 0.8

Model and Implication:

Silver YOKG 20A 3 Pole AC Contactor SC09 - 12 690V Black IP20

Working and Installation Condition:

Ambient air temperature: -5℃--+40℃ and average not more than +35℃ within 24 hours;

Altitude: ≤ 2000m;

Air condition: when the highest temperature is +40℃, the air relative humidity is not up to 50%, but the higher humidity is allowed at lower temperature. Like, 90% humidity at 20℃. The condensate dew should be considered when at lower temperature;

Pollution degree: Class 3

Installation category:III

Protection degree: IP20

Installation condition: the gradient angle between installation side and vertical side should not be more than ±5℃

Impact and vibrattion: the contactor must be installed and operate under the circumstances of no obvious shaking, impact and vibration.

Structure characteristic:

It can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay, then to be other derivative products;

This series contactor has small volume, light weight, less power loss, long life and safe and reliability etc;

The contactor can be equipped with 1NO auxiliary contact or 1NC auxiliary contact(less than 32A), and 1NO auxiliary contact+1NC auxiliary contact(more than 40A). In addition, it can be equipped with F4 auxiliary contactor block (2blocks or 4blocks);

In addition to use screw to install, contactor can be tightened with the standard installing rail of 35mm (sc09~95) and the standard installing rail of 75mm(SC40~95)

Installation demension:

Silver YOKG 20A 3 Pole AC Contactor SC09 - 12 690V Black IP20

A max B max C max a b ∅
47 76 82 34/35 50/60 4.5

Silver YOKG 20A 3 Pole AC Contactor SC09 - 12 690V Black IP20
