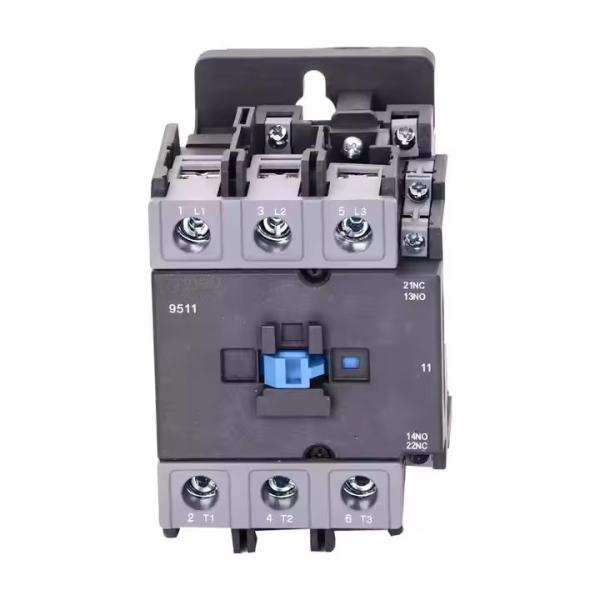

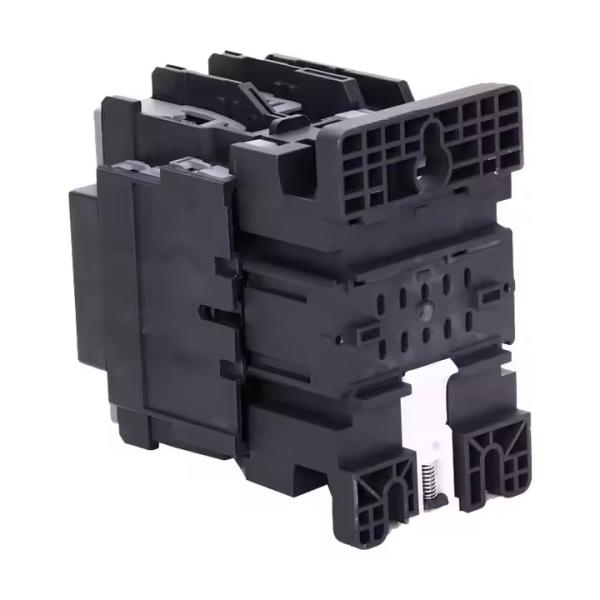

3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount
3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount
3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount
3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount
Specifications
Brand Name :
YOKG or OEM
Model Number :
SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
Place of Origin :
Zhejiang, China
MOQ :
200
Delivery Time :
10 DAYS
Payment Terms :
T/T,L/C
Certification :
CE, TUV
Packaging Details :
Standard export packing or According to customer's demand
Protection Level :
IP20
Number of Poles :
3
Insulation Voltage :
690VAC
Installation Method :
Screw OR DIN RAIL
Rated Operational Current :
125A
Power Frequency :
50/60Hz
Number of Auxiliary Contacts :
3
Rated Voltage :
220VAC
Description

Product Description:

The product is available in a range of other operational currents, including 20A, 32A, 40A, 50A, 80A, and 125A. This means that users can choose the right size for their specific needs.

The 3 Pole AC Contactor also comes with 1NO+1NC contacts, allowing users to control the circuit in either direction. This feature is particularly useful in situations where the circuit needs to be switched on and off quickly.

Features:

  • Product Name: 3 Pole AC Contactor
  • Insulation Voltage: 690VAC
  • Rated Current: 125A
  • Mechanical Endurance: 3600/h
  • Number of Auxiliary Contacts: 3
  • Rated Insulation Voltage: 690VAC
  • AC magnetic contactor
  • 1NO+1NC
  • 3 phase

Technical Parameters:

Product Attribute Value
Product Name 3 Pole AC Contactor (LC1D)
Rated Current 125A
Rated Operational Current 60A
Rated Voltage 220VAC
Rated Insulation Voltage 690VAC
Installation Method Screw OR DIN RAIL
Number of Auxiliary Contacts 3
Rated Operational Voltage 220VAC
Mechanical Endurance 3600/h
Power Frequency 50/60Hz
Protection Level IP20

Applications:

They are compliant with IEC60947-4 standards and are rated for a rated insulation voltage of 690VAC and rated operational voltage of 220VAC. These contactors are suitable for use in power frequency of 50/60Hz and have a mechanical endurance of 3600/h.

They are commonly used in industrial and commercial applications where large electrical loads need to be switched on and off frequently. These contactors are suitable for use in protection level IP20 environments and are designed to provide reliable operation in harsh environments.

3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount3 Pole 125A AC Contactor With 3 Auxiliary Contacts IP20 Rated Screw Or DIN Rail Mount

FAQ:

Q1: What is the brand name of the 3 Pole AC Contactor?

A1: The brand name of our 3 Pole AC Contactor is YOKG or OEM.

Q2: What are the available model numbers for the 3 Pole AC Contactor?

A2: The available model numbers for the 3 Pole AC Contactor are SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95.

Q3: Where is the 3 Pole AC Contactor manufactured?

A3: The 3 Pole AC Contactor is manufactured in Zhejiang, China.

Q4: What is the minimum order quantity for the 3 Pole AC Contactor?

A4: The minimum order quantity for the 3 Pole AC Contactor is 200.

Q5: What are the available payment terms and delivery time for the 3 Pole AC Contactor?

A5: The available payment terms for the 3 Pole AC Contactor are T/T and L/C. The delivery time for the 3 Pole AC Contactor is 10 days.
