Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
Specifications
Brand Name :
Feiyinsi
Model Number :
DW512-1505-3700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
usage :
air or vacuum
size :
82*38*62mm
Theory :
vacuum
Power :
Electric
Motor :
DC motor
pump's name :
6v dc brushless pump
brush or brushless :
brushless
vacuum and pressure :
-65kpa vacuum and 150kpa pressure
weight :
280g
Model :
DW512-1505-3700
Description

portable wide application electric dc diaphragm 6v dc brushless pump



what is brushless pump?

​DC brushless pump, simply,its function is to use the DC brushless motor as the power to pump the air out from the container, or directly pump air into the atmosphere. DC brushless pump, because of DC brushless motor, it has long life and often be used in conditions which need a long time continuous working . For example, on-line gas extraction,gas pumping, gas circulation, and so on. Because of its small size, light weight, also called a micro brushless DC vacuum pump, micro brushless DC pump, brushless motor vacuum pump, speed regulating vacuum pump, gas sampling pump, long life vacuum pump.

Why we choose brushless pumps?

Brushless DC Pump uses the principle of permanent magnet brushless DC motor which are built-in circuit board, the housing structure designed to form the chamber for operating fluid flow, characterized by security, because there is no brush friction, so there is no spark; high efficiency, low power consumption (energy-efficient, effective power of 70%) than brush motors and long life , low noise.

6v dc brushless pump's parameter

Our company offers multiple component configurations allowing pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.
Its flow can deliver up to 3 L/min and 11L/M.
Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.
You can choose pump according to our model.
In addition,it can be mounted in any position.

Model

DW512-1505-3700

Size(mm)

82*38*62

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

7

Free Flow(L/M)

6

Pressure(Kpa)

150

Vacuum(Kpa)

-65

Weight

280


Pump Size:82*38*62mm
Pump Weight:280g;
Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm
Materials:pump body: PC/PPS, diaphragm: EPDM
Because we use imported ball bearing,the pump’s performance is stable and high.
The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

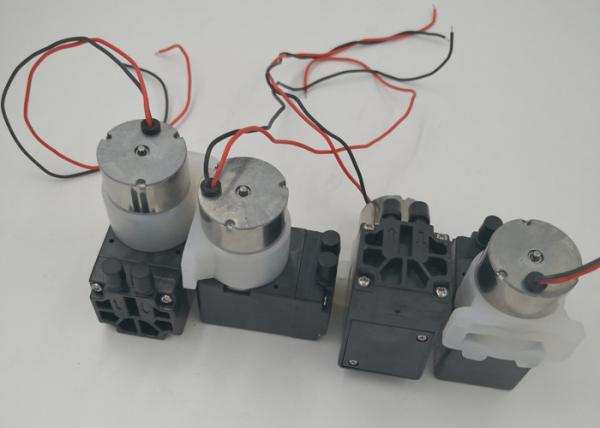

6v dc brushless pump's photo

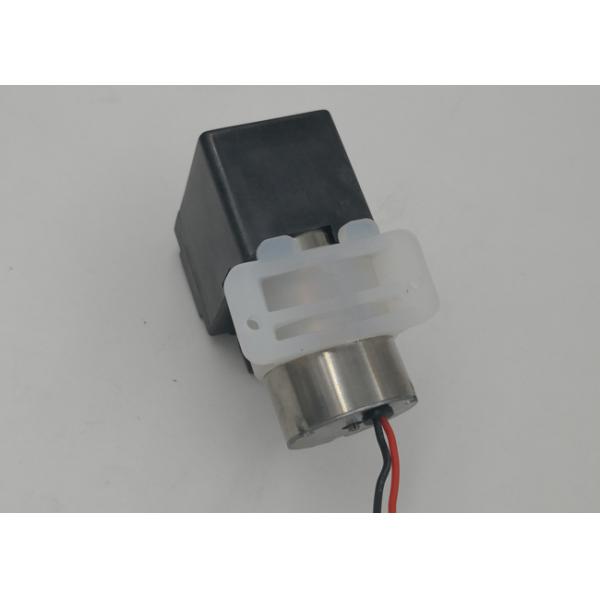

Portable Electric DC Miniature Diaphragm Pump , 6 Volt Mini Air Vacuum Pump
An elastomeric diaphragm can be used as a versatile dynamic seal that removes many of the limitations found with other sealing methods. They do not leak, offer little friction, and can be constructed for low pressure sensitivity. With the right material consideration, diaphragms can seal over a wide range of pressures and temperatures without needing lubrication or maintenance.


Environmental Requirements about 6v dc brushless pump

Working Environment

Storage Environment

Transportation Environment

Temperature Range

-30℃~66℃-30℃~70℃-30℃~70℃/Smooth

Relative humidity range

60%rh60%rh60%rh


Special requirements for materials about 6v dc brushless pump

All materials comply with environmental standards.
Motors comply with EMC.
pump material is nonflammable or any fire should be fully extinguish within 30
seconds under 10 seconds of ignition test.

Environmental testing requirements about 6v dc brushless pump

NumberItemTest conditions and requirementsRemarks
1Steady-state heat and wet60%rhHigh humidity can affect the electrical performance of the motor
2Temperature ShockThe pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet.too high temperature affect pump’s parameters, life and electrical performance
3High temperature testPump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4Low temperature testFor 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.In too low temperature,motor cannot be started



Electrical Performance about 6v dc brushless pump

NumberItemrequirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min

2Dielectric strength5mA Max/between wire and frame measurements 500 VAC/min

More details about brushless micro vacuum pump

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

6v dc brushless pump's application

industrial pressure and vacuum applications
Portable analytical instruments
Medical diagnostic equipment
Air quality sampling monitors
Respiration monitors
Gas or odor leak detectors

6v dc brushless pump's packing and shipping

Packaging:
CTN/PCS: 60PCS
G.W. : 18 KG
DIMENSION : 47 * 31 * 25 CM
We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.
The fastest, but most expensive.
You can choose according to your needs.


Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.
Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

Our company

Founded in 1999,yanhua Micro pump Technology company is the leading and biggest manufacturer specializing in various DC micro pump and fluid comprehensive solution in China.
Our sale engineers team have more than 15years overseas experience in customer service,especially like OEM and ODM, and successful service for several fortunes 1000companies, can provide immediate and rapid solution and satisfactory answer to the clients.
Over 15 years’ experience in overseas customer service without complaint.
Engineers’ on-site service and quick solutions.Professional sales engineer to provide free technical support and solve problems with 24hours.
We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.
Today, Yanhua have 12 production lines and 300 skilled workers, our monthly producton capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.
