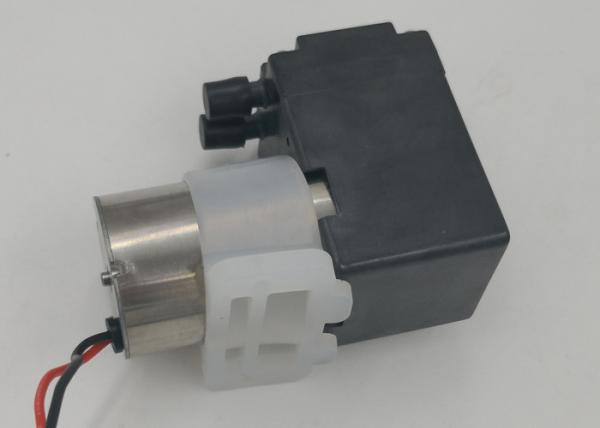

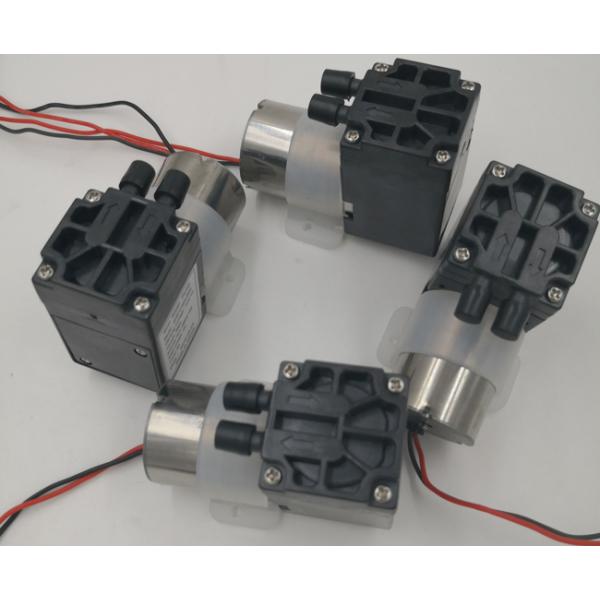

​DC brushless pump, simply,its function is to use the DC brushless motor as the power to pump the air out from the container, or directly pump air into the atmosphere. DC brushless pump, because of DC brushless motor, it has long life and often be used in conditions which need a long time continuous working . For example, on-line gas extraction,gas pumping, gas circulation, and so on. Because of its small size, light weight, also called a micro brushless DC vacuum pump, micro brushless DC pump, brushless motor vacuum pump, speed regulating vacuum pump, gas sampling pump, long life vacuum pump.

how to choose pump?

In short, the gas sampling pump can only carry a small load (i.e., the pump suction end’s resistance can not be too big, but the price is cheap; in the strict sense, the miniature vacuum pump can carry a large load (the suction end allows large resistance, or even completely clogged up, but the price is slightly higher. The resistance of the pump can be measured by means of instrument. Comparing it with the por of maximum allowable resistance of air inlet in the pump's technical parameter, we can know whether the type selection is appropriate or not. It is usually determined by a simple method based on experience. For example, the following conditions are of high load (that is, the pumping end of the pump has greater resistance and can only be selected within the scope of the miniature vacuum pump):

1. At the pumping end of the pump to be connected to a very long pipe, or pipe bending points, severe bending will even block closed, or the pipe has a very small hole (for example, less than φ 2 mm);

2. There are throttle valves, solenoid valves, air path switches, filters and other components on the pipeline;

3. The pump outlet is connected with the closed container, or the container is not airtight but the air intake is small;

4. The pump outlet is connected with the closed container, or the container is not airtight but the air intake is small;

5. The pumping end of the pump is connected to the filter container, which is used to speed up liquid filtration.

brushless electric motor pump's dimension

Unlabeled tolerance is ± 0.1mm.

Pump Size:82*38*62mm

Pump Weight:280g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

More details about brushless electric motor pump

Certifications

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
