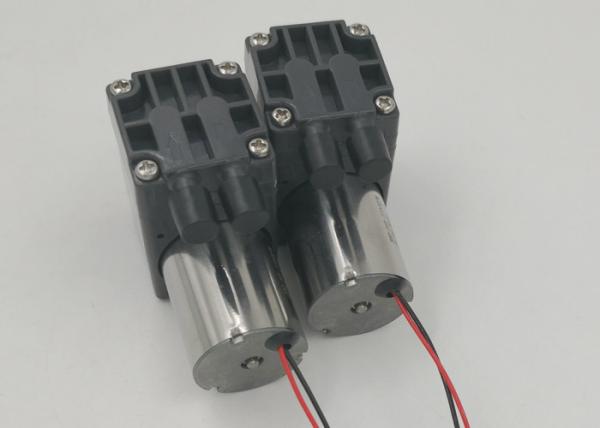

Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow
Specifications
Brand Name :
Feiyinsi
Model Number :
DW312-4003-3200
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
structure :
diaphragm pump
usage :
air or vacuum
size :
32.8*50*70mm
Theory :
vacuum
Power :
Electric
Motor :
DC motor
pump's name :
mini 24v brushless pump
brush or brushless :
brushless
vacuum and pressure :
-45kpa vacuum and 80kpa pressure
Model :
DW312-4003-3200
Description

energy-efficient electric dc diaphragm mini 24v brushless pump

​DC brushless pump, simply,its function is to use the DC brushless motor as the power to pump the air out from the container, or directly pump air into the atmosphere. DC brushless pump, because of DC brushless motor, it has long life and often be used in conditions which need a long time continuous working . For example, on-line gas extraction,gas pumping, gas circulation, and so on. Because of its small size, light weight, also called a micro brushless DC vacuum pump, micro brushless DC pump, brushless motor vacuum pump, speed regulating vacuum pump, gas sampling pump, long life vacuum pump.

mini 24v brushless pump's parameter

Brushless DC Pump uses the principle of permanent magnet brushless DC motor which are built-in circuit board, the housing structure designed to form the chamber for operating fluid flow, characterized by security, because there is no brush friction, so there is no spark; high efficiency, low power consumption (energy-efficient, effective power of 70%) than brush motors and long life , low noise.

Model

DW312-4003-3200

Size(mm)

32.8*50*70

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

2

Free Flow(L/M)

2.5

Pressure(Kpa)

80

Vacuum(Kpa)

-45

Weight

160

Our company offers multiple component configurations allowing pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 7L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Environmental testing requirements about mini 24v brushless pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

Environmental Requirements about mini 24v brushless pump

Working Environment

Storage Environment

Transportation Environment

Temperature Range

 -30℃~66℃ -30℃~70℃ -30℃~70℃/Smooth

Relative humidity range

 60%rh 60%rh 60%rh

Electrical Performance about mini 24v brushless pump

Number Item requirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min
2 Dielectric strength 5mA Max/between wire and frame measurements 500 VAC/min

Special requirements for materials about mini 24v brushless pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

mini 24v brushless pump's application

Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

mini 24v brushless pump's dimension

Electric DC Miniature Vacuum Pump , 24V Brushless Mini Air Suction Pump 2.5L/M Flow

mini 24v brushless pump's packing and shipping

Packaging:

CTN/PCS: 75PCS

G.W. : 12 KG

DIMENSION : 47 * 31 * 25 CM

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

Company Information

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.
