High Grade portable new style plastic 3v vacuum cupping pump mini for exhaust air

Compared with the large vacuum pump, it has the following advantages: small size, low noise, low power consumption, easy operation, easy to carry, no maintenance, 24 hours continuous operation, and allows medium to be rich in water vapor. Most importantly, because it is dry, oil free, no vacuum pump oil or lubricating oil, it will not pollute the working medium, do not interfere with the medium analysis and so on. And the price is much cheaper.

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium

3v vacuum cupping pump's production process

Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

3v vacuum cupping pump's application

Our products can meet the specific needs of different clients. The products are mainly used in medical cosmetology, household electronic appliances, food and beverage, health,instrument,chemical instrumentation. The car and laboratory and other industries. The products are mainly exported to korea, Japan,southeast Asia, Australia, Europe and other countries.

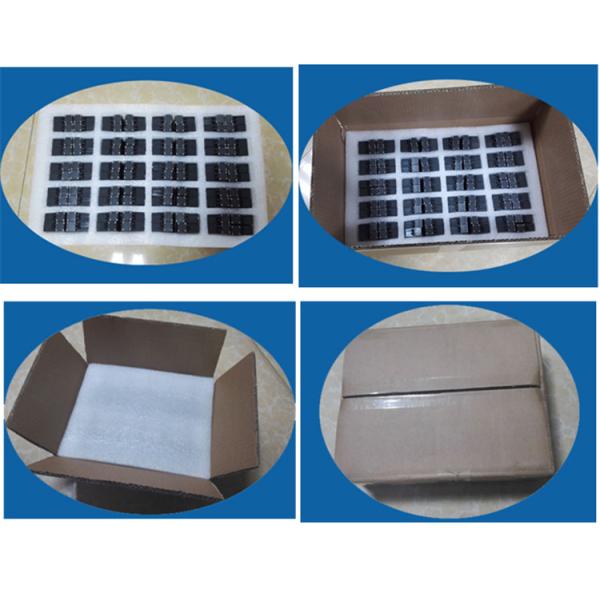

3v vacuum cupping pump's packing and shipping

CTN/PCS: 324PCS

G.W. : 14 KG

DIMENSION : 36 * 31 * 31 CM

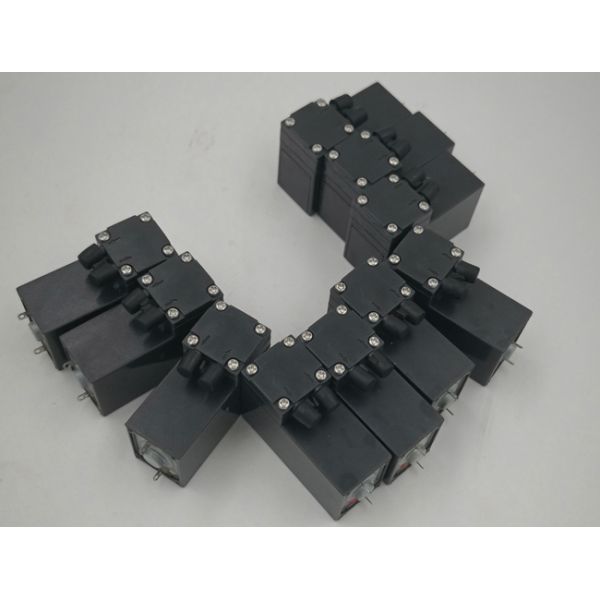

3v vacuum cupping pump's picture

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 0.1 L/min and 2L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 3V.

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

Founded in 1999, Yanhua faith is concentrated on the micro pump field’s research and development for 20year, we are only company in China whose positioning is to supply and produce high-end brushless DC pumps and brush dc pump to all countries ,aiming “ to be the dc micro pump field leader and the most influential enterprise”. Just like many professional foreign excellent companies, they focus on one product fro centuries and make the product and the best one in their respective field, this is also what Yanhua Faith pursue. Under this pursuit,our company’s quality police has been targeted at “by the creative spirit ,setting up the micro pump industry’s benchmark, and building up the international high quality”. We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2. In case of changes of the specification specified on this document. A written notice is requested in advance.

3. there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4. Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
