24 Volt DC Electric Operated Diaphragm Pump 3.5L/M Flow Inflation Pressure
24 Volt DC Electric Operated Diaphragm Pump 3.5L/M Flow Inflation Pressure
Specifications
Brand Name :
Feiyinsi
Model Number :
D324-1005-4000
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
Working way :
Continuous or intermittent
usage :
air or vacuum
Theory :
vacuum
Power :
Electric
Pressure :
100kpa pressure
Motor :
DC motor
Model :
D324-1005-4000
pump's name :
24 volt dc vacuum pump
brush or brushless :
brush
vacuum :
-50kpa
Description

Inflation pressure diaphragm 24 volt dc vacuum pump 3.5L/M flow

Pump’s classification

Miniature gas pump is a kind of gas conveying device which is small in volume and take gas as working medium. It is mainly used for gas sampling, gas circulation, vacuum adsorption, vacuum pressure maintaining, pumping, pressurizing and so on. The micro air pump can be divided into micro negative pressure pump, micro vacuum pump, micro gas circulation pump, micro gas sampling pump, micro air pump and air pump according to the working principle. If according to working theory, there are diaphragm type, electromagnetic type, impeller type, piston type, etc. Generally, in medical and health, scientific research, laboratory, environmental protection, instrumentation, chemical industry and other industries, it mainly use micro vacuum pump.

Micro pumps for pumping are divided into two categories: gas sampling pumps and micro vacuum pumps. Although they are usually referred to simply as miniature vacuum pumps without distinction, they are different from each other in a technical point of view and should be chosen with special attention.

24 volt dc vacuum pump's parameter and features

mini pump has the following advantages:

compact structure, maintenance free

oil free,low power consumption, corrosion resistance

high pressure,high flow, low noise

long life and other characteristics

Model

D324-1005-4000

Size(mm)

32.8*50*70

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

3

Free Flow(L/M)

3.5

Pressure(Kpa)

100

Vacuum(Kpa)

-50

Weight

160


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

24 volt dc vacuum pump's production process


Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

24 volt dc vacuum pump's application

Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

environmental testing requirements about 24 volt dc vacuum pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

Electrical Performance about 24 volt dc vacuum pump

Number Item requirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min
2 Dielectric strength 5mA Max/between wire and frame measurements 500 VAC/min

Special requirements for materials about 24 volt dc vacuum pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

24 volt dc vacuum pump's dimension

24 Volt DC Electric Operated Diaphragm Pump 3.5L/M Flow Inflation Pressure

Pump Size:32.8*50*70mm

Pump Weight:160g;

Outlet:OD 5.8mm, silicone hose suggestion:ID 4.5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

24 volt dc vacuum pump's packing and shipping

Packaging:

CTN/PCS: 75PCS

G.W. : 12 KG

DIMENSION : 47 * 31 * 25 CM

1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by

sea)

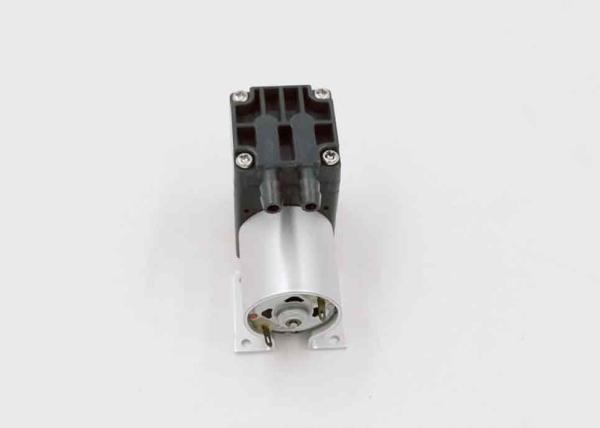

24 volt dc vacuum pump's photo

24 Volt DC Electric Operated Diaphragm Pump 3.5L/M Flow Inflation Pressure

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 3 L/min and 8L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
