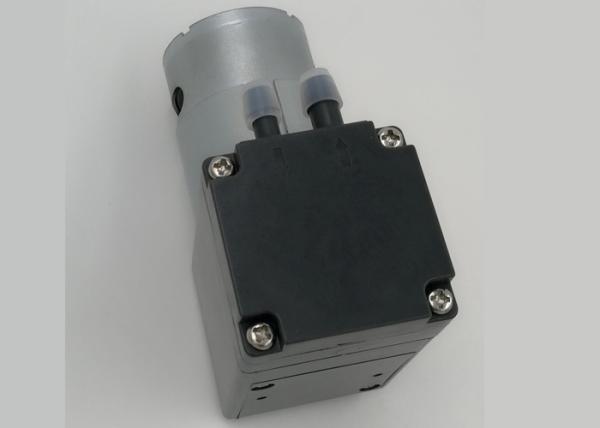

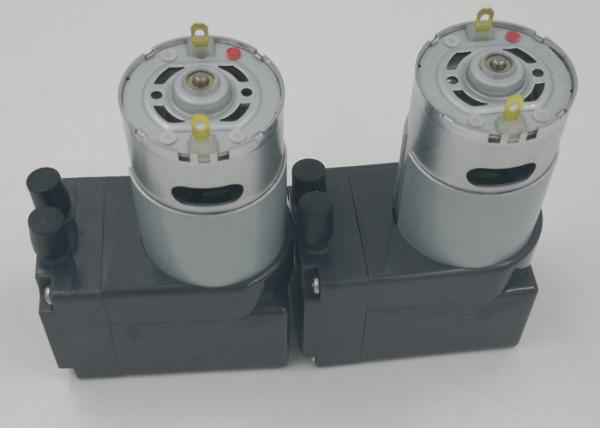

5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type
Specifications
Brand Name :
Feiyinsi
Model Number :
ZX512-603-2900
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
color :
grey
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
Working way :
Continuous or intermittent
usage :
air or vacuum
Weight :
300g
Theory :
vacuum
Power :
Electric
Pressure :
100kpa pressure
Motor :
DC motor
Model :
ZX512-603-2900
pump's name :
brush vacuum cupping pump
brush or brushless :
brush
vacuum :
-60kpa
Description

5L/M free flow rate dc pressure diaphragm brush vacuum cupping pump

The medium temperature of brush vacuum cupping pump

According to the temperature of the medium which pass through the pump, choose the ordinary type or the high temperature type.

Reliability of brush vacuum cupping pump

It is decided by the consequences’ severity of micro pump failure , according to their own requirements. The average failure-free continuous running time of high quality products is more than 1000 hours, and some of them are thousands of hours. It is especially important to note that this parameter is measured under full load and uninterrupted operation, and is the worst condition. If the actual use is not full load or continuous operation, the life span will be longer. About how longer it can run, it will depend on the pump working condition. The performance is a test of the manufacturer's technical strength. If just from the appearance of the product, it can be seen, such as the use of special motors rather than ordinary low-priced motor, heavier weight under same size. In addition,according to the price of the product, it may also know a little.

brush vacuum cupping pump's parameter and features

1. Uncontaminated flow.

2. Non-metallic construction.

3. Oil-Free, Corrosion resistant

4. Long life,High efficiency

5. Compact size, Low Weight

6. Low noise level&vibration

7. Maintenance free

8. High level of water tightness thanks to the closed

diaphragm surface and special sealing system.

9. Can operate in any installed position.

Model

ZX512-603-2900

Size(mm)

102.4*70*40

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

4

Free Flow(L/M)

5

Pressure(Kpa)

100

Vacuum(Kpa)

-60

Weight

300


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

environmental testing requirements about brush vacuum cupping pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

brush vacuum cupping pump's application

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage

brush vacuum cupping pump's dimension

5L/M Free Flow Rate DC Pressure Diaphragm Pump Brush Vacuum Cupping Type

brush vacuum cupping pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

The factory long-term supply micro pumps to the large manufacturers. The micro pump is widely used in home appliances, electronics, cars, vacuum preservation, health care, robot supporting, a variety of environmental monitoring instrumentation and other fields. The working life of our products goes through a variety of environmental testing. The customer's requirements with our own unique technology and design can meet a variety of special industries’ needs( such as high temperature, long life , anti- electromagnetic interference , low noise , oil resistance and other special requirements ) . The company's products are exported to Europe, America , Asia, Taiwan and other places .

The company consists of a professional design department, mold department, injection department , assembling workshop and sales department.

Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.
