Brush DC Membrane 12V Pressure Diaphragm Pump Electric Power With High Flow
Brush DC Membrane 12V Pressure Diaphragm Pump Electric Power With High Flow
Specifications
Brand Name :
Feiyinsi
Model Number :
D712-1503-3800
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS,epdm,hardware
structure :
diaphragm pump
usage :
air or vacuum
Theory :
vacuum
Power :
Electric
Application :
inflate and deflate gas
Pressure :
150kpa pressure, -75kpa vacuum
Motor :
DC pump
Model :
D712-1503-3800
pump name :
membrane 12v pump
Description

pressure diaphragm pump brush dc membrane 12v pump with high flow

Reliability of membrane 12v pump

It is decided by the consequences’ severity of micro pump failure , according to their own requirements. The average failure-free continuous running time of high quality products is more than 1000 hours, and some of them are thousands of hours. It is especially important to note that this parameter is measured under full load and uninterrupted operation, and is the worst condition. If the actual use is not full load or continuous operation, the life span will be longer. About how longer it can run, it will depend on the pump working condition. The performance is a test of the manufacturer's technical strength. If just from the appearance of the product, it can be seen, such as the use of special motors rather than ordinary low-priced motor, heavier weight under same size. In addition,according to the price of the product, it may also know a little.

membrane 12v pump's parameter and features

Model D712-1503-3800
Size(mm) 66*85.5*116
Voltage(V/DC) 6V/9V/12V/24V
Power(W) 20
Free Flow(L/M) 25
Max. vacuum(Kpa) -75
Max.pressure(Kpa) 150
Weight 600


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:66*85.5*116mm

Pump Weight:600g;

Outlet:OD 13.2mm, silicone hose suggestion:ID 12mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

membrane 12v pump's production process

The company consists of a professional design department, mold department, injection department , assembling workshop.

All products of the company have independent intellectual property rights and patents. We can independently design and produce. In addition, we can assemble productions in strict accordance with the ISO9001-2015 system. The company has passed ISO9001 certification. "Feiyinsi" is a registered trademark of our company .Based on the soul purpose "we are implementing the principle of “quality and service is the first” all the time, taking the highest industry standard to control every procedure.

membrane 12v pump's application


The pump can be used in wide range.
1. Electronic products,agriculture,finishing,light industry products
2. Analytic-al instruments
3. Chemical and production engineering
4. Various ancillary equipment

membrane 12v pump's demension

Brush DC Membrane 12V Pressure Diaphragm Pump Electric Power With High Flow


Unlabeled tolerance is ± 0.1mm.

membrane 12v pump's packing and shipping

Shipment

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

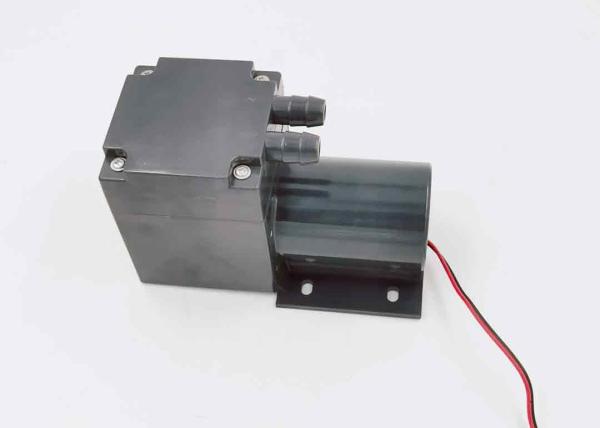

membrane 12v pump's picture

Brush DC Membrane 12V Pressure Diaphragm Pump Electric Power With High Flow

Working theory:The rotary motion of the motor is converted into the swing of the connecting rod, so as to push the piston to move up and down in the cylinder. During the downward movement of the piston, the pump chamber suck into the medium through the inlet valve. Then during upward movement of the piston, the pump chamber push out the medium through the outlet valve to complete a work cycle.

Certifications


All products of our company have independent intellectual property rights and patents.
We have all kinds of certification, such as Rohs,CE and Reach.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
