Brush Motor 9V DC Pressure Miniature Diaphragm Pump , Mini Piston Pump 250kpa Pressure
Brush Motor 9V DC Pressure Miniature Diaphragm Pump , Mini Piston Pump 250kpa Pressure
Specifications
Brand Name :
Feiyinsi
Model Number :
DX524-2501-4500
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
Working way :
Continuous or intermittent
usage :
air or vacuum
Theory :
vacuum
Power :
Electric
Application :
pump or transfer air,gas
Motor :
DC motor
Model :
DX524-2501-4500
pump's name :
mini 9v dc pump
brush or brushless :
brush
vacuum :
-80kpa
Description

250kpa pressure mini 9v dc pressure diaphragm pump with brush motor

how to choose pump?

In short, the gas sampling pump can only carry a small load (i.e., the pump suction end’s resistance can not be too big, but the price is cheap; in the strict sense, the miniature vacuum pump can carry a large load (the suction end allows large resistance, or even completely clogged up, but the price is slightly higher. The resistance of the pump can be measured by means of instrument. Comparing it with the por of maximum allowable resistance of air inlet in the pump's technical parameter, we can know whether the type selection is appropriate or not. It is usually determined by a simple method based on experience. For example, the following conditions are of high load (that is, the pumping end of the pump has greater resistance and can only be selected within the scope of the miniature vacuum pump):

1. At the pumping end of the pump to be connected to a very long pipe, or pipe bending points, severe bending will even block closed, or the pipe has a very small hole (for example, less than φ 2 mm);

2. There are throttle valves, solenoid valves, air path switches, filters and other components on the pipeline;

3. The pump outlet is connected with the closed container, or the container is not airtight but the air intake is small;

4. The pump outlet is connected with the closed container, or the container is not airtight but the air intake is small;

5. The pumping end of the pump is connected to the filter container, which is used to speed up liquid filtration.

mini 9v dc pump's parameter and features

mini pump has the following advantages:

compact structure, maintenance free

oil free,low power consumption, corrosion resistance

high pressure,high flow, low noise

long life and other characteristics

Model

DX524-2501-4500

Size(mm)

102.4*70*40

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

11

Free Flow(L/M)

15

Pressure(Kpa)

250

Vacuum(Kpa)

-80

Weight

300


Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 6.5mm, silicone hose suggestion:ID 5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

environmental testing requirements about mini 9v dc pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

Special requirements for materials about mini 9v dc pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

Electrical Performance about mini 9v dc pump

Number Item requirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min
2 Dielectric strength 5mA Max/between wire and frame measurements 500 VAC/min


Our company has a complete production system.
We has our own mold department, injection molding department, production and

assembly department, sample room, R & D department, sales department.
We can independently design and produce pump.

In addition, we can assemble productions in strict accordance with the ISO9001 system.

mini 9v dc pump's application

1. breast pump

2. Beauty equipment

3. Vacuum packaging machine

4. Double-headed electric breast pump

5. Portable ozone sterilizer

6. Vacuum sealing machine

7. Beauty massage

mini 9v dc pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

1. We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2. And we will help choose the most cost-effective way for you according to your requirement.

3. The tracking number will be available the next day after shipment,then you can check your goods is on the way.

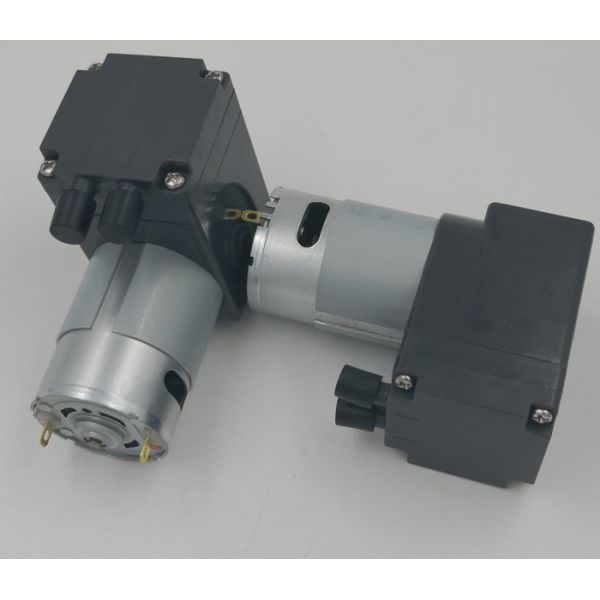

mini 9v dc pump's photo

Brush Motor 9V DC Pressure Miniature Diaphragm Pump , Mini Piston Pump 250kpa Pressure

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 2 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

Company Information

Founded in 1999, Yanhua faith is concentrated on mold and plastic injection first.

In 2001, we start our own assemble line to produce pumps.

In 2002, we have our own sales team.

In 2003, we have our over-sales team.

From 2010, we start our own patent, now we have more than 20 patents.

In 2010, yanhua company has passed ISO9001 certification

In 2011years, we have our own trademark”Feinyinsi”.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly producton capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

The company consists of a professional design department, mold department, injection department , assembling workshop and sales department.

Our mold department and injection department is very matured.

We do mold and plastic injection for more than 20years.

We devote to 20% profit to R & D department, so we have more than 20 patent in research dc micro pump. Our engineers has over 15years professional experience in dc micro pump.

All products of the company have independent intellectual property rights and patents. We can independently design and produce.

Founded in 1999,yanhua Micro pump Technology company is the leading and biggest manufacturer specializing in various DC micro pump and fluid comprehensive solution in China.

Our sale engineers team have more than 16years customers’ service customer and 15years overseas experience in customer service.

Certifications

We have obtained the ISO9001 certification, and our products comply with the EU RoHS Directive and REACH regulations, FDA certification. Some of our products have WARS, NSF approval.

Today, Yanhua have 12 production lines and 300 skilled workers, our monthly production capacity is 500,000pcs brushless and brush dc pumps,100,000 piston pumps and 10,000 gear pump and water pump.

RFQ

Q1: Are you a factory or trading company?

A1: We are a factory.

Q2: Can I get a sample? How long it will take to get a sample?

A2: Yes, you can order sample to test and check the quality.

For our usual sample, the sample lead time is about 3-5days.

If special sample, it will take a longer time for design and order materials to do pumps.

All our samples are done by our engineers.

They can according to your needs customize pump for you.

Q3: How can I make the payment?

A3:Payment can be made through T/T, paypal or Western Union.

Q4: Is it OK to print our logo on Pump?

A4: Yes, we could do OEM and print your logo on Pump product.

Q5: What about the package ?

A5: Standard export carton.

Q6.: The use of products have?

A6:The pump can pump various strong acid, alkali and corrosive air etc.

Q7: How product quality and service?

A7: Our pump have CE certificate, quality assured and provide various personalized needs.

Q8: How to proceed an order for Mini Air Pump?

A8: (1) Checking /confirming all details information( include requirement of pump product, payment terms, price,quantity, leading time or others);

(2) Checking/confirming the sample's quality or satisfied result;

(3) Final checking/confirming the price/quantity/leading time/payment terms for first trial order;

(4) We factory arrange the production after receiving the real pump order.
