high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
Specifications
Brand Name :
Feiyinsi
Model Number :
DXW512-2403-3700
Certification :
Rohs,Reach
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
Western Union, , T/T, L/C,paypal
Supply Ability :
3000pcs per day
Packaging Details :
Export carton, carton's dimension:47*31*25cm
Basic Materials :
PC/PPS/Nylon, EPDM,hardware
structure :
diaphragm pump
usage :
air or vacuum
size :
102.4*70*40mm
Theory :
vacuum
Power :
Electric
Motor :
DC motor
pump's name :
24v brushless vacuum pump
brush or brushless :
brushless
vacuum and pressure :
-73kpa vacuum and 240kpa pressure
weight :
300g
Model :
DXW512-2403-3700
Description

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

The definition of diaphragm pump

A diaphragm pump (also known as a Membrane pump) is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm (check valve, butterfly valves, flap valves, or any other form of shut-off valves) to pump a fluid.

24v brushless vacuum pump's parameter and features

Small mechanically activated diaphragm pumps are also used as air compressors and as a source of low-grade vacuum. Compared to other compressors, these pumps are quiet, cheap and, most importantly, have no moving parts in the airstream. This allows them to be used without added lubrication in contact with the air, so the compressed air produced can be guaranteed clean.

Model

DXW512-2403-3700

Size(mm)

102.4*70*40

Voltage(V/DC)

6V/9V/12V/24V

Power(W)

7

Free Flow(L/M)

13

Pressure(Kpa)

240

Vacuum(Kpa)

-73

Weight

300

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Special requirements for materials about 24v brushless vacuum pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

environmental testing requirements about 24v brushless vacuum pump

Number Item Test conditions and requirements Remarks
1 Steady-state heat and wet 60%rh High humidity can affect the electrical performance of the motor
2 Temperature Shock The pump was placed at -20 ℃ environment ,after 1h immediately placed at + 70 ℃ ± 3 ℃ environment for 1h.This is for 1cycle. After 50 cycles was returned to room temperature.0.5h later,pumping power test is conducted. The pump should be able to work properly; fasteners should not loose , in working condition pump’s body should not be leakage when block pump’s outlet. too high temperature affect pump’s parameters, life and electrical performance
3 High temperature test Pump is at 70 ℃ ± 3 ℃ environment for 48h. Then take it out. After 0.5hours later, at room temperature power pump. Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change.
4 Low temperature test For 72 hours,pump is at -20 ℃ environment. Then take it out. Power the pump and test it.( when testing the pump,pump’s body can not have ice ). Fastening points should be no loose. The pump can work normally. Its performance and parameters can not change. In too low temperature,motor cannot be started

Electrical Performance about battery operated diaphragm pump

Number Item requirements
1

Insulation resistance

10MΩ / between wire and frame measurements , 500VDC / min
2 Dielectric strength 5mA Max/between wire and frame measurements 500 VAC/min

Environmental Requirements about battery operated diaphragm pump

Working Environment

Storage Environment

Transportation Environment

Temperature Range

 -30℃~66℃ -30℃~70℃ -30℃~70℃/Smooth

Relative humidity range

 60%rh 60%rh 60%rh

24v brushless vacuum pump's dimension

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 5mm, silicone hose suggestion:ID 3.5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

More details about 24v brushless vacuum pump

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

An elastomeric diaphragm can be used as a versatile dynamic seal that removes many of the limitations found with other sealing methods. They do not leak, offer little friction, and can be constructed for low pressure sensitivity. With the right material consideration, diaphragms can seal over a wide range of pressures and temperatures without needing lubrication or maintenance.

24v brushless vacuum pump's model code


high pressure,high flow, low noise 24v brushless vacuum diaphragm pump
According to above picture, you know how our model codes are produced.
You can know our pump more clearly and choose the pump more easily.

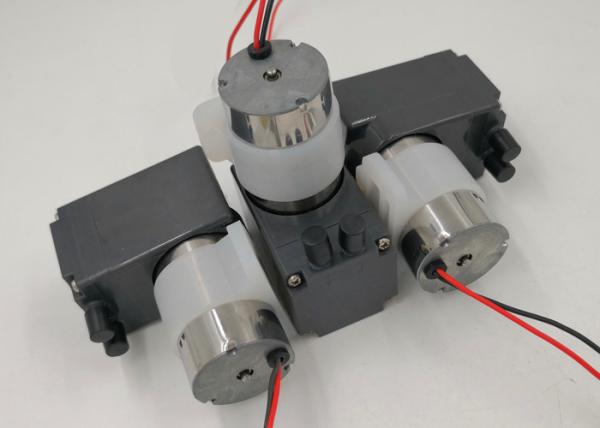

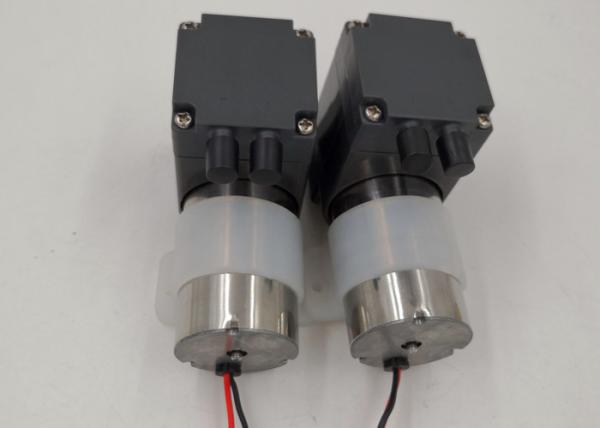

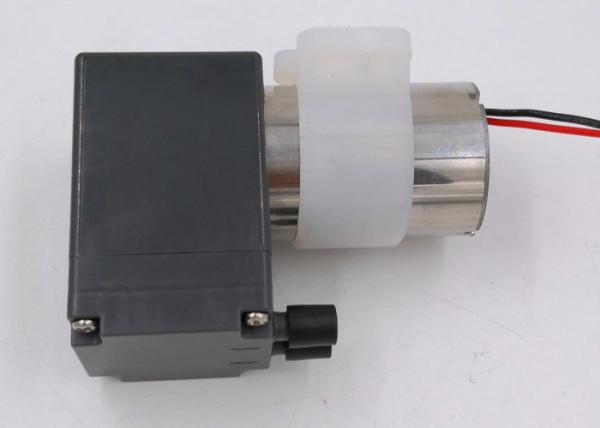

24v brushless vacuum pump's photo

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

Our company offers multiple component configurations allowing pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 3 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

24v brushless vacuum pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

Picture’s about the packaging

high pressure,high flow, low noise 24v brushless vacuum diaphragm pump

1.We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2.And we will help choose the most cost-effective way for you according to your requirement.

3.The tracking number will be available the next day after shipment,then you can check your goods is on the way.

Company Information

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

Our services

1. OEM / ODM welcome

2. Competitive advantage mini air pump, mini water pump, mini air valve

3. No MOQ & small order & sample order welcomed

4. We will reply you for your inquiry in 24 hours.

5. After sending, we will track the products for you once every two days, until you get the

products. When you got the goods, test them, and give me a feedback.If you have any

questions about the problem, contact with us, we will offer the solve way for you.

6. 24*7 After sale service

7. We accept Paypal & Trade Assurance

8. With us your money in safe,your business in safe.
