dc battery powered -90kpa pressure low voltage 12v diaphragm brushless air pump

1. DC motor with long lifetime

2. Low noise

3. Continuous operation: The pump can sustain heavy duty work for a day;

4. Compact design, It has good waterproof;

5. Low power consumption, high efficient-save on operating cost;

6. Small and Light-weight, Installation is very simple;

7. Wide application;

8. Perfect for indoor or outdoor use;

9. It can be customized according to customer's technical requirements.

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Environmental Requirements about 12v diaphragm brushless air pump

environmental testing requirements about 12v diaphragm brushless air pump

Special requirements for materials about 12v diaphragm brushless air pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

More details about 12v diaphragm brushless air pump

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 3 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

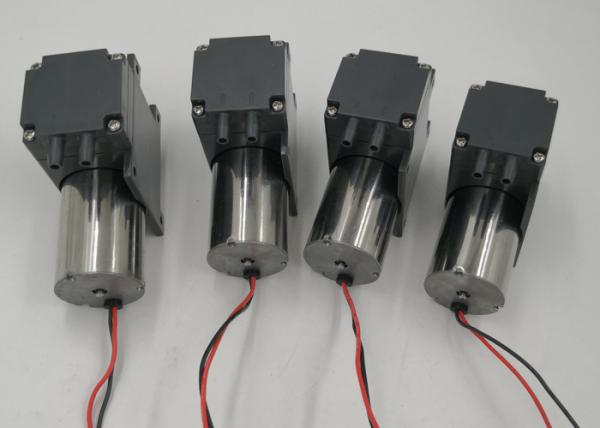

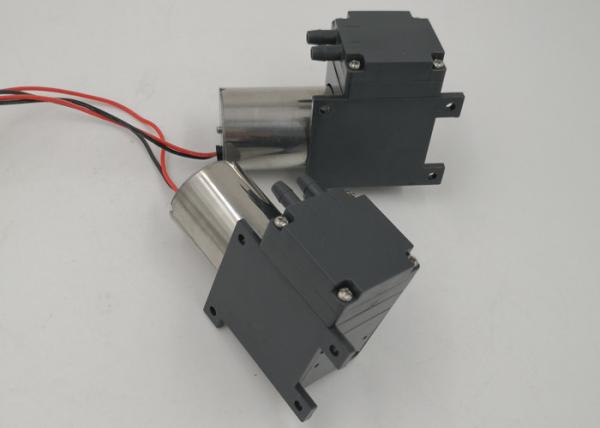

12v diaphragm brushless air pump's photo

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

12v diaphragm brushless air pump's dimension

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 5mm, silicone hose suggestion:ID 3.5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

12v diaphragm brushless air pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

Picture’s about the packaging

1.We can ship by DHL, UPS, FedEx ,TNT, EMS, HONGKONG post etc.DHL, UPS, FedEx, TNT takes about 3-5 workdays for delivery.

2.And we will help choose the most cost-effective way for you according to your requirement.

3.The tracking number will be available the next day after shipment,then you can check your goods is on the way.

The factory long-term supply micro pumps to the large manufacturers. The micro pump is widely used in home appliances, electronics, cars, vacuum preservation, health care, robot supporting, a variety of environmental monitoring instrumentation and other fields. The working life of our products goes through a variety of environmental testing. The customer's requirements with our own unique technology and design can meet a variety of special industries’ needs( such as high temperature, long life , anti- electromagnetic interference , low noise , oil resistance and other special requirements ) . The company's products are exported to Europe, America , Asia, Taiwan and other places .

The company consists of a professional design department, mold department, injection department , assembling workshop and sales department.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2.In case of changes of the specification specified on this document. A written notice is requested in advance.

3.there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4.Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.
