dc electric 12v/24v brushless diaphragm pump with -65kpa vacuum

Compared with the large vacuum pump, it has the following advantages: small size, low noise, low power consumption, easy operation, easy to carry, no maintenance, 24 hours continuous operation, and allows medium to be rich in water vapor. Most importantly, because it is dry, oil free, no vacuum pump oil or lubricating oil, it will not pollute the working medium, do not interfere with the medium analysis and so on. And the price is much cheaper.

Remark: Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V.
When you choose pump, you can tell me the pump's voltage you need.
We can do it for you.

Special requirements for materials about 12v/24v brushless pump

All materials comply with environmental standards.

Motors comply with EMC.

pump material is nonflammable or any fire should be fully extinguish within 30

seconds under 10 seconds of ignition test.

Environmental Requirements about 12v/24v brushless pump

environmental testing requirements about 12v/24v brushless pump

More details about 12v/24v brushless pump

Our company offers multiple component configurations allowing piston pump to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliable, highly efficient.

Its flow can deliver up to 3 L/min and 18L/M.

Usually our pump has 4 kinds of voltage:6V, 9V,12V and 24V .

When you choose pump, you can tell me the pump's voltage you need.

We can do it for you.

You can choose pump according to our model.

In addition,it can be mounted in any position.

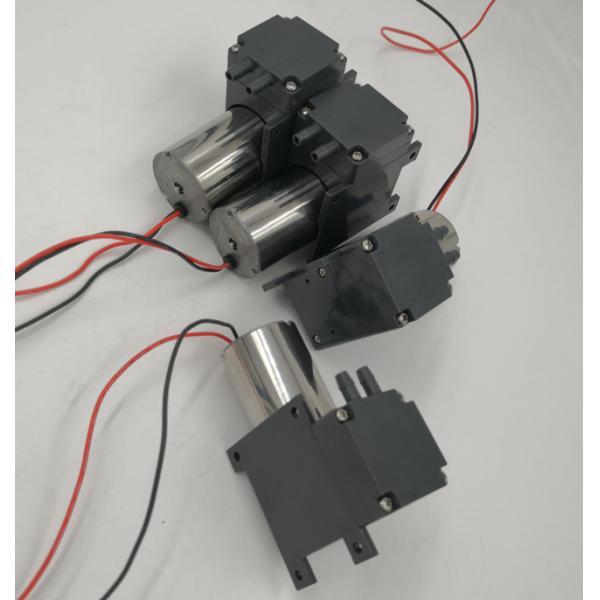

12v/24v brushless pump's photo

Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.

12v/24v brushless pump's dimension

Unlabeled tolerance is ± 0.1mm.

Pump Size:102.4*70*40mm

Pump Weight:300g;

Outlet:OD 5mm, silicone hose suggestion:ID 3.5mm

Materials:pump body: PC/PPS, diaphragm: EPDM

Because we use imported ball bearing,the pump’s performance is stable and high.

The membrane is made by EPDM and pump's body is made by special PC/PPS which make pump well endurance and strong chemical resistance.

12v/24v brushless pump's packing and shipping

Packaging:

CTN/PCS: 60PCS

G.W. : 19.5 KG

DIMENSION : 47 * 31 * 25 CM

Picture’s about the packaging

We can ship pumps to you by sea, by air or by express.
By sea: cheap but long
By air: quick but a a little expensive
By express: door to door, 3-5days to your country by DHL/UPS/FEDEX/TNT and others.

The fastest, but most expensive.
You can choose according to your needs.

Shenzhen Yanhua Faith Technology Co., Ltd. specializes in manufacturing micro-pumps :

mini vacuum pumps , micro air pump , micro water pump , brushless self-priming pump, brushless air pump, brushless water pump, brushless vacuum pump , brushless pump ; piston pumps; oil-free pump ( oil-less vacuum pump , no oil air pump , no oil air pump , no oil brushless vacuum pump ) ; gear pumps , air pumps, impeller pumps, submersible pumps and other micro pumps.

User Instructions

1. will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification.

2.In case of changes of the specification specified on this document. A written notice is requested in advance.

3.there is any data or related documentation different from this data sheet.This data sheet is the principle reference.

4.Please do not use it in the environment of corrosive gas or liquid or any detrimental gas. 5.While the motor is in operation,please do not lock the motor intentionally for a long periods,since the continuous stoppage will result in overheat and thus burnt out the motor.

FQA

Q1:Can I have a sample order for it?

A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.

Q2:What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.

Q3:How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4:How to proceed an order?

Firstly let us know your requirements or application.

Secondly We quote according to your requirements /our recommend model with suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q5: What's your payment terms?

A: T/T & L/C, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.For more need, please just contact us and we will reply within 24hours on working days.

Q6. Is it OK to print my logo on this product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 6-12 months warranty to our products & 1% wear out parts for after service.

Q8:What’s your main marker?

A: North America, Korea & European

Q9: Do you have ability to do ODM service?

A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 16 years experience on pump& motors.

A2: ODM service based on offered sample. B:Oo modify & creative new function based on our product series.

Q10. Do you have any MOQ limit for led light order?

A. No MOQ, 1pc for sample checking is available.
